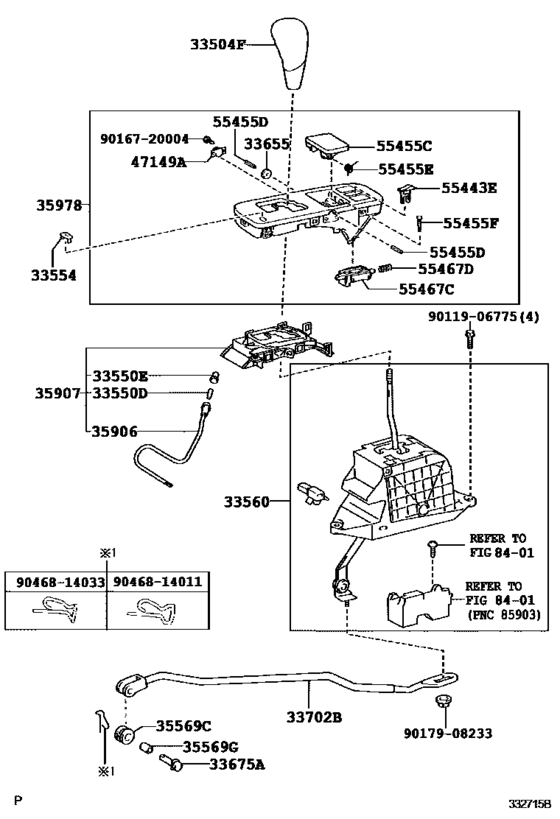

Shift Lever & Retainer ([08.2005 - ] (0508- )) Diagram Toyota LEXUS SC
- Year
- 2005 - 2010
- Sales region
- U.S.A.
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- SC430
- From
- 08.2005
- To
- 07.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- SC430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-24110-B1 Knob Sub-Assy, Shift Lever[08.2006 - 11.2006] UZZ40 PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),DK.GRAY,TRIM33 |
33504-24110-B1 |
US $253.34 |
||
|
33504F
|
33504F
33504-24110-E1 Knob Sub-Assy, Shift Lever[08.2005 -] UZZ40 DK.BROWN,TRIM42 |
33504-24110-E1 |
US $253.34 |
||
|
33504F
|
33504F
33504-24120-E0 Knob Sub-Assy, Shift Lever[08.2005 -] UZZ40 MD.BROWN,TRIM00,20,50 |
33504-24120-E0 |
US $250.43 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[08.2005 -] UZZ40 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
33550E
|
33550E
33554-24050 Cap, Position Indicator Lamp[08.2005 -] UZZ40 |
33554-24050 |
US $0.87 |
||
|
33554
|
33554
33554-24040 Cap, Shift LeverSHIFT LEVER [08.2005 -] UZZ40 |
33554-24040 |
US $5.24 |
||
|
33560
|
33560
33560-24020
Unit Assy, Shift Lock Control
[08.2005 -] UZZ40 |
33560-24020 |
— | ||
|
33655
|
33655
33655-24010 Gear, Shift Lever, No.1[08.2005 -] UZZ40 |
33655-24010 |
US $2.48 |
||
|
33675A
|
33675A
33726-30020 Pin, W/hole (For Transmission Control Rod)[08.2005 -] UZZ40 |
33726-30020 |
US $1.86 |
||
|
33702B
|
33702B
33702-50070 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[08.2005 -] UZZ40 |
33702-50070 |
US $26.06 |
||
|
35569C
|
35569C
90480-17013 Grommet[08.2005 -] UZZ40 |
90480-17013 |
from US $3.45 |
||
|
35569G
|
35569G
90560-08091 Bush (For Floor Shift Control Shaft)[08.2005 -] UZZ40 |
90560-08091 |
US $1.12 |
||
|
35906
|
35906
35906-24050
Wire Sub-Assy, Indicator Lamp
[08.2005 -] UZZ40 |
35906-24050 |
— | ||
|
35907
|
35907
35907-24030
Housing Sub-Assy, Position Indicator (For Floor Shift)
[08.2005 -] UZZ40 |
35907-24030 |
— | ||
|
35978
|
35978
35978-24050
Indicator, Shift Position
[08.2005 -] UZZ40 |
35978-24050 |
— | ||
|
47149A
|
47149A
47149-24020 Damper, Return Spring[08.2005 -] UZZ40 |
47149-24020 |
US $7.57 |
||
|
55443E
|
55443E
55443-24020 Knob, Shift Position Indicator[08.2005 -] UZZ40 |
55443-24020 |
US $10.56 |
||
|
55455C
|
55455C
55455-24050 Panel, Coin Box, No.1[08.2005 -] UZZ40 |
55455-24050 |
US $6.84 |
||
|
55455D
|
55455D
90250-03106 Pin, Straight[08.2005 -] UZZ40 |
90250-03106 |
US $1.31 |
||
|
55455E
|
55455E
90508-04009 Spring, Torsion(For Coin Box Panel)TORSION(FOR COIN BOX PANEL) [08.2005 -] UZZ40 |
90508-04009 |
US $1.46 |
||
|
55455F
|
55455F
90541-02001 Pin, Straght(For Coin Box Panel)[08.2005 -] UZZ40 |
90541-02001 |
US $0.96 |
||
|
55467C
|
55467C
55467-24040 Lock, Coin Box[08.2005 -] UZZ40 |
55467-24040 |
US $5.24 |
||
|
55467D
|
55467D
90501-05060 Spring, Compression(For Coin Box Lock)[08.2005 -] UZZ40 |
90501-05060 |
US $1.05 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9016720004
|
9016720004
90167-20004 New Genuine Part |
90167-20004 |
US $0.61 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.40 |
||
|
9046814011
|
9046814011
90468-14011 Clip, No.2(For Parking Brake) |
90468-14011 |
US $0.96 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $0.99 |
