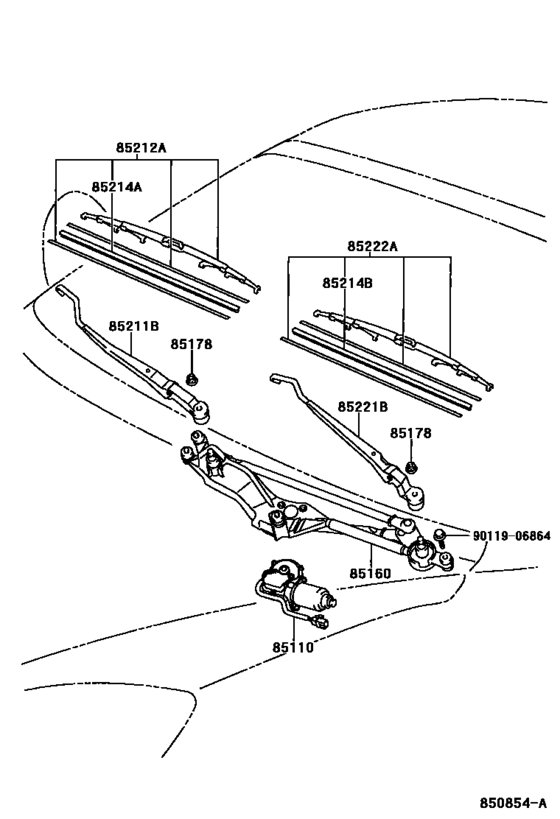

Windshield Wiper ([01.2001 - ] (0101- )) Diagram Toyota LEXUS SC
- Year
- 2005 - 2010
- Sales region
- U.S.A.
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- SC430
- From
- 08.2005
- To
- 07.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- SC430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-24080 Motor Assy, Windshield WiperWINDSHIELD WIPER [08.2005 -] UZZ40 |
85110-24080 |
US $346.53 |
||
|
85160
|
85160
85150-24080 Link Assy, Windshield Wiper[08.2005 - 08.2006] UZZ40 |
85150-24080 |
US $154.34 |
||
| replacement | |||||
|
85160
|
85160
85150-24081
Link Assy, Windshield Wiper
[08.2005 - 08.2006] UZZ40 |
85150-24081 |
— | ||
|
85160
|
85160
85150-24081
Link Assy, Windshield Wiper
[08.2006 -] UZZ40 |
85150-24081 |
— | ||
|
85178
|
85178
90176-10005 Nut (For Front Wiper Arm Setting)[08.2005 -] UZZ40 |
90176-10005 |
US $1.76 |
||
|
85211B
|
85211B
85211-24100
Arm, Front Wiper, Rh
[08.2005 - 08.2006] UZZ40 |
85211-24100 |
— | ||
| replacement | |||||
|
85211B
|
85211B
85211-24101 Arm, Front Wiper, RhFR WIPER, RH [08.2005 - 08.2006] UZZ40 |
85211-24101 |
from US $59.40 |
||
|
85211B
|
85211B
85211-24101 Arm, Front Wiper, RhFR WIPER, RH [08.2006 -] UZZ40 |
85211-24101 |
from US $59.40 |
||
|
85212A
|
85212A
85212-24120 Blade, Fr Wiper, RhFR WIPER, RH [08.2006 - 07.2010] UZZ40 |
85212-24120 |
US $38.44 |
||
| replacement | |||||
|
85212A
|
85212A
85212-53081 Blade, Fr Wiper, RhFR WIPER, RH [08.2006 - 07.2010] UZZ40 |
85212-53081 |
from US $38.44 |
||
|
85212A
|
85212A
85212-53060 Blade, Fr Wiper, RhFR WIPER, RH [08.2005 - 05.2006] UZZ40 |
85212-53060 |
US $38.44 |
||
| replacement | |||||
|
85212A
|
85212A
85212-53061 Blade, Fr Wiper, RhFR WIPER, RH [08.2005 - 05.2006] UZZ40 |
85212-53061 |
from US $30.23 |
||
|
85212A
|
85212A
85212-53061 Blade, Fr Wiper, RhFR WIPER, RH [06.2006 - 08.2006] UZZ40 |
85212-53061 |
from US $30.23 |
||
|
85214A
|
85214A
85214-24050
Rubber, Wiper, Rh
[08.2005 - 05.2006] UZZ40 |
85214-24050 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-24051 Rubber, Wiper, Rh[08.2005 - 05.2006] UZZ40 |
85214-24051 |
from US $12.80 |
||
|
85214A
|
85214A
85214-24051 Rubber, Wiper, Rh[06.2006 - 08.2006] UZZ40 |
85214-24051 |
from US $12.80 |
||
|
85214A
|
85214A
85214-53090 Rubber, Wiper, Rh[08.2006 -] UZZ40 |
85214-53090 |
from US $11.08 |
||
|
85214B
|
85214B
85214-30380 Rubber, Wiper, Rh[08.2006 -] UZZ40 |
85214-30380 |
from US $13.60 |
||
|
85214B
|
85214B
85214-50100 Rubber, Wiper, Rh[08.2005 - 08.2006] UZZ40 |
85214-50100 |
from US $13.34 |
||
|
85221B
|
85221B
85221-24100
Arm, Front Wiper, Lh
[08.2005 - 08.2006] UZZ40 |
85221-24100 |
— | ||
| replacement | |||||
|
85221B
|
85221B
85221-24101 Arm, Front Wiper, Lh[08.2005 - 08.2006] UZZ40 |
85221-24101 |
US $52.27 |
||
|
85221B
|
85221B
85221-24101 Arm, Front Wiper, Lh[08.2006 -] UZZ40 |
85221-24101 |
US $52.27 |
||
|
85222A
|
85222A
85222-24080 Blade, Fr Wiper, LhFR WIPER, LH [08.2005 - 08.2006] UZZ40 |
85222-24080 |
from US $36.87 |
||
|
85222A
|
85222A
85222-24110 Blade, Fr Wiper, LhFR WIPER, LH [08.2006 - 07.2010] UZZ40 |
85222-24110 |
US $53.87 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
