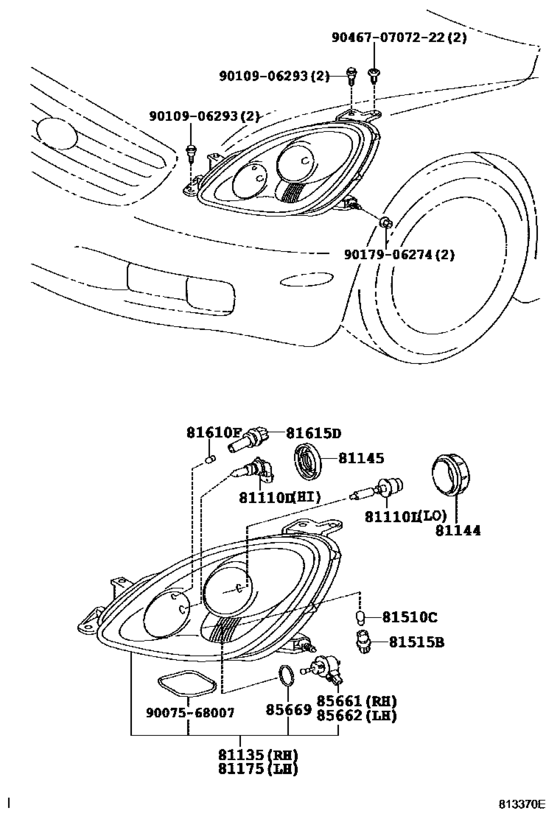

Headlamp ([08.2005 - ] (0508- )) Diagram Toyota LEXUS SC
- Year
- 2005 - 2010
- Sales region
- General
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- GCC
- Model
- SC430
- From
- 08.2005
- To
- 07.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110D
|
81110D
90981-13066 Bulb(For Headlamp, No.2)[08.2005 -] UZZ40 12V 65W,HALOGEN |
90981-13066 |
from US $24.22 |
||
|
81110L
|
81110L
90981-20013 Bulb, Discharge Headlamp[08.2005 - 04.2006] UZZ40 45V 35W |
90981-20013 |
US $189.28 |
||
| replacement | |||||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[08.2005 - 04.2006] UZZ40 45V 35W |
90981-20024 |
from US $164.74 |
||
|
81110L
|
81110L
90981-20021 Bulb, Discharge Headlamp[05.2006 - 02.2009] UZZ40 45V 35W |
90981-20021 |
US $189.28 |
||
| replacement | |||||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[05.2006 - 02.2009] UZZ40 45V 35W |
90981-20024 |
from US $164.74 |
||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[02.2009 -] UZZ40 42V 35W |
90981-20024 |
from US $164.74 |
||
|
81135
|
81135
81140-24170
Unit Assy, Headlamp, Rh
[08.2005 - 10.2006] UZZ40..LHD |
81140-24170 |
— | ||
| replacement | |||||
|
81135
|
81135
81140-24171
Unit Assy, Headlamp, Rh
[08.2005 - 10.2006] UZZ40..LHD |
81140-24171 |
— | ||
|
81135
|
81135
81140-24171
Unit Assy, Headlamp, Rh
[11.2006 -] UZZ40..LHD |
81140-24171 |
— | ||
|
81144
|
81144
81135-24160 Cover, Headlamp Back, No.1[08.2005 - 10.2006] UZZ40..LHD |
81135-24160 |
from US $11.04 |
||
|
81145
|
81145
90075-99054 Cover, Headlamp, No.2[08.2005 - 10.2006] UZZ40..LHD |
90075-99054 |
from US $8.70 |
||
|
81175
|
81175
81070-24170
Unit Assy, Headlamp, Lh
[08.2005 - 10.2006] UZZ40..LHD |
81070-24170 |
— | ||
| replacement | |||||
|
81175
|
81175
81070-24171
Unit Assy, Headlamp, Lh
[08.2005 - 10.2006] UZZ40..LHD |
81070-24171 |
— | ||
|
81175
|
81175
81070-24171
Unit Assy, Headlamp, Lh
[11.2006 -] UZZ40..LHD |
81070-24171 |
— | ||
|
81510C
|
81510C
90981-15021 Bulb (For Front Turn Signal Lamp)[08.2005 - 07.2010] UZZ40 12V 21W,AMBER |
90981-15021 |
from US $3.51 |
||
|
81515B
|
81515B
90075-60028 Socket, Headlamp, Bulb[08.2005 - 10.2006] UZZ40..LHD |
90075-60028 |
from US $6.73 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[08.2005 - 10.2006] UZZ40..LHD 12V 5W |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[08.2005 - 10.2006] UZZ40..LHD 12V 5W |
90080-81053 |
US $2.75 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[08.2005 - 10.2006] UZZ40..LHD |
90075-60077 |
from US $6.47 |
||
|
85661
|
85661
85661-48030 Motor, Headlamp Leveling, Rh[08.2005 - 10.2006] UZZ40..LHD |
85661-48030 |
from US $155.79 |
||
|
85662
|
85662
85661-48030 Motor, Headlamp Leveling, Rh[08.2005 - 10.2006] UZZ40..LHD |
85661-48030 |
from US $155.79 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[08.2005 - 10.2006] UZZ40..LHD |
90075-99120 |
from US $2.42 |
||
|
9007568007
|
9007568007
90075-68007 Gasket, Headlamp |
90075-68007 |
from US $7.68 |
||
|
9010906293
|
9010906293
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.74 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
904670707222
|
904670707222
90467-07072-22 Clip (For Roof Side Garnish) |
90467-07072-22 |
US $1.92 |
||
