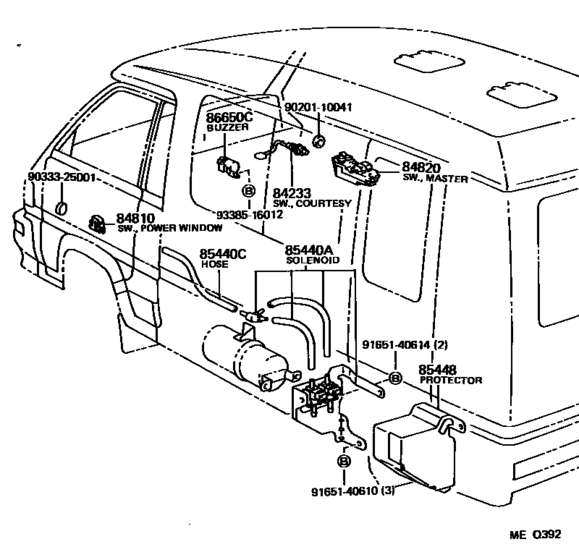

Switch & Relay & Computer ([11.1989 - ] ｷﾔﾝﾋﾟﾝｸﾞｶｰｼﾖｳ (8911- )CM65..IV) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- CM65
- grade
- DX
- body
- JL
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- IV
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84230-95703 Switch Assy, Courtesy Lamp (For Front Door)[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
84230-95703 |
US $14.41 |
||
|
84810
|
84810
84810-32070 Switch Assy, Power Window Regulator[11.1989 - 10.1993] CM65..IV;KM51,YM60..SPX |
84810-32070 |
from US $35.72 |
||
|
84820
|
84820
84820-87010
Master Switch Assy, Power Window Regulator
[11.1989 - 09.1993] CM65..IV;KM51,YM60..SPX |
84820-87010 |
— | ||
|
85440A
|
85440A
85440-27010 Solenoid Assy, Four Wheel Drive Control[10.1986 - 10.1991] CM6#,YM6# |
85440-27010 |
US $326.14 |
||
| replacement | |||||
|
85440A
|
85440A
85440-27011 Solenoid Assy, Four Wheel Drive Control[10.1986 - 10.1991] CM6#,YM6# |
85440-27011 |
US $434.03 |
||
|
85440A
|
85440A
85440-27011 Solenoid Assy, Four Wheel Drive Control[10.1991 - 10.1993] CM6#,YM6# |
85440-27011 |
US $434.03 |
||
|
85440A
|
85440A
85440-27040 Solenoid Assy, Four Wheel Drive Control[08.1995 - 11.1996] CM60,61;CM65..TS |
85440-27040 |
US $352.35 |
||
|
85440C
|
85440C
90445-10031 Hose (For Four Wheel Drive Control)[10.1986 - 10.1993] CM6# |
90445-10031 |
US $9.17 |
||
|
85448
|
85448
85448-27010 Protector, Solenoid[10.1986 - 10.1993] CM6#,YM6# |
85448-27010 |
US $14.71 |
||
|
86650C
|
86650C
86650-95A03
Buzzer Assy, Sedimenter Warning
[10.1991 - 10.1993] CM65..IV |
86650-95A03 |
— | ||
|
86650C
|
86650C
86650-95J04 Buzzer Assy, Sedimenter Warning[11.1989 - 10.1991] CM65..IV |
86650-95J04 |
US $28.39 |
||
|
9020110041
|
9020110041
90201-10041 New Genuine Part |
90201-10041 |
US $1.60 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $1.02 |
||
