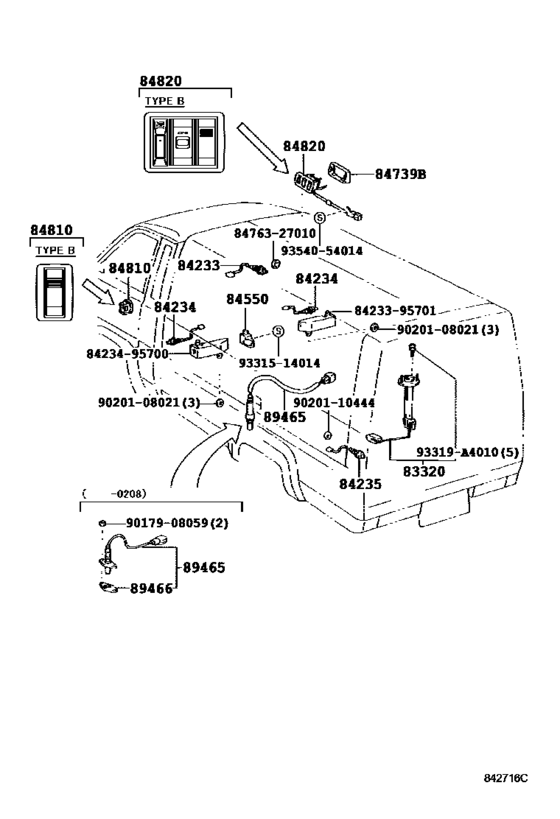

Switch & Relay & Computer ([06.1999 - ] ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾎﾞﾃﾞ- (9906- )GUT) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- CM80
- grade
- DX
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- DECK
- T1
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2002
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE
- Building Condition
- CBU
- Deck(Material)
- GUT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80373 Gage Assy, Fuel Sender[06.1999 - 08.2002] CM7#,8#,KM7#,8# |
83320-80373 |
US $56.61 |
||
|
84233
|
84233
84230-95703 Switch Assy, Courtesy Lamp (For Front Door)[06.1999 - 08.2002] CM7#,8#,KM7#,8# 運転席 |
84230-95703 |
US $14.41 |
||
|
84234
|
84234
84230-95704 Switch Assy, Courtesy Lamp (For Rear Door)[06.1999 - 08.2002] CM80,KM70..GUT |
84230-95704 |
US $14.41 |
||
| replacement | |||||
|
84234
|
84234
84231-28010 Switch Assy, Courtesy Lamp[06.1999 - 08.2002] CM80,KM70..GUT |
84231-28010 |
from US $16.26 |
||
|
84235
|
84235
84230-22040 Switch Assy, Courtesy Lamp (For Engine Room)[06.1999 - 08.2002] CM80,KM70..GUT |
84230-22040 |
US $14.27 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[06.1999 - 08.2002] CM7#,8#,KM7#,8# |
84550-16060 |
from US $17.48 |
||
|
84739B
|
84739B
84739-26020-B1 Retainer, Switch[06.1999 - 08.2002] CM7#,8#,KM7#,8#..DX DK.CHACOAL,TRIM1# |
84739-26020-B1 |
US $16.31 |
||
|
84810
|
84810
84810-20060-B5 Switch Assy, Power Window Regulator[06.1999 - 08.2002] CM7#,8#,KM7#,8#..DX ﾅｼ(ｱｳﾀ ﾐﾗ- ｽｲﾂﾁ),DK.CHACOAL,TRIM1#,ＴＹＰＥ Ｂ：イラスト参照 |
84810-20060-B5 |
US $50.23 |
||
| replacement | |||||
|
84810
|
84810
84810-20060-B3 Switch Assy, Power Window Regulator[06.1999 - 08.2002] CM7#,8#,KM7#,8#..DX ﾅｼ(ｱｳﾀ ﾐﾗ- ｽｲﾂﾁ),DK.CHACOAL,TRIM1#,ＴＹＰＥ Ｂ：イラスト参照 |
84810-20060-B3 |
US $50.23 |
||
|
84820
|
84820
84820-26041-B1 Master Switch Assy, Power Window Regulator[06.1999 - 08.2002] CM7#,8#,KM7#,8#..DX ﾅｼ(ｱｳﾀ ﾐﾗ- ｽｲﾂﾁ),DK.CHACOAL,TRIM1#,ＴＹＰＥ Ｂ：イラスト参照 |
84820-26041-B1 |
US $145.44 |
||
| replacement | |||||
|
84820
|
84820
84820-26041-B0 Master Switch Assy, Power Window Regulator[06.1999 - 08.2002] CM7#,8#,KM7#,8#..DX ﾅｼ(ｱｳﾀ ﾐﾗ- ｽｲﾂﾁ),DK.CHACOAL,TRIM1#,ＴＹＰＥ Ｂ：イラスト参照 |
84820-26041-B0 |
from US $145.44 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.70 |
||
|
8423395701
|
8423395701
84233-95701 Switch Assy, Courtesy Lamp (for Front Door) |
84233-95701 |
US $19.80 |
||
|
8423495700
|
8423495700
84234-95700 Switch Assy, Courtesy Lamp (for Rear Door) |
84234-95700 |
US $19.80 |
||
|
8476327010
|
8476327010
84763-27010 Plate, Switch |
84763-27010 |
US $5.24 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9020108021
|
9020108021
90201-08021 Washer, Plate (For Pressure Regulator Valve) |
90201-08021 |
US $1.16 |
||
|
9020110444
|
9020110444
90201-10444
New Genuine Part
|
90201-10444 |
— | ||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $1.01 |
||
