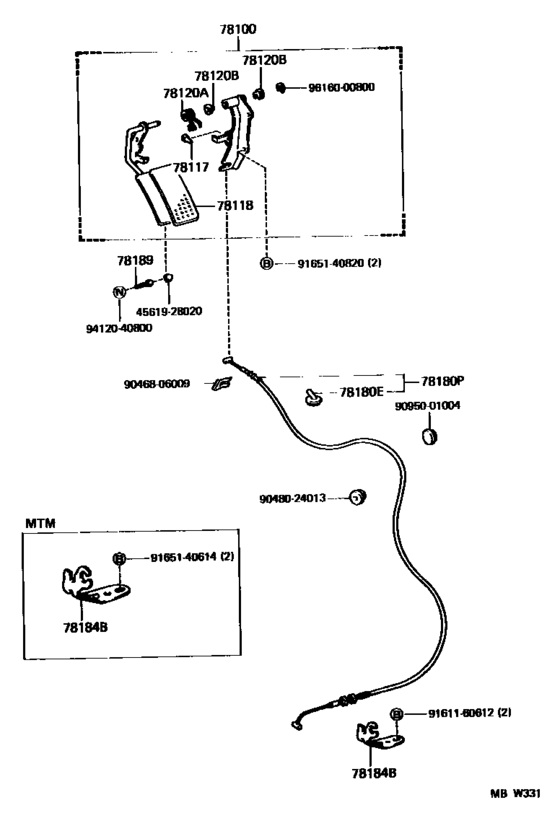

Accelerator Link ([01.1992 - ] (9201- )KR27) Diagram Toyota LITE/ TOWNACE
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- KR27
- grade
- D
- Roof
- SRF
- ENGINE
- 5KJ
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE V,WG
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 06S
- Vehicle Model
- LITE/TOWNACE V,WG
- Floor Shape
- V1
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-87004 Link Assy, Accelerator[01.1992 - 10.1996] YR21..ATM;KR27,YR25,30 |
78100-87004 |
US $45.72 |
||
|
78117
|
78117
90541-05006 Cushion (For Accelerator Rod)[01.1992 - 10.1996] CR2#,3#,KR27,YR2#,30 |
90541-05006 |
US $1.16 |
||
|
78118
|
78118
78119-95700
Pad, Accelerator Pedal
[01.1992 - 10.1996] CR2#,3#,KR27,YR2#,30 |
78119-95700 |
— | ||
|
78120A
|
78120A
90508-20061 Spring, Compression (For Accelerator Link Rod)[01.1992 - 10.1996] YR21..ATM;CR2#,3#,KR27,YR25,30 |
90508-20061 |
US $6.99 |
||
|
78120B
|
78120B
78118-87001 Bush (For Accelerator Link Rod)[01.1992 - 10.1996] CR2#,3#,KR27,YR2#,30 |
78118-87001 |
US $2.48 |
||
|
78180E
|
78180E
90480-25021
Grommet (For Accelerator Wire)
[01.1992 - 10.1996] CR2#,3#,KR27,YR2#,30 |
90480-25021 |
— | ||
|
78180P
|
78180P
78180-28070 Cable Assy, Accelerator Control[01.1992 - 08.1994] KR27 |
78180-28070 |
US $99.01 |
||
| replacement | |||||
|
78180P
|
78180P
78180-28230 Cable Assy, Accelerator Control[01.1992 - 08.1994] KR27 |
78180-28230 |
US $99.01 |
||
|
78180P
|
78180P
78180-28160 Cable Assy, Accelerator Control[08.1994 - 12.1994] KR27 |
78180-28160 |
US $99.01 |
||
| replacement | |||||
|
78180P
|
78180P
78180-28230 Cable Assy, Accelerator Control[08.1994 - 12.1994] KR27 |
78180-28230 |
US $99.01 |
||
|
78180P
|
78180P
78180-28230 Cable Assy, Accelerator Control[12.1994 - 10.1996] KR27 |
78180-28230 |
US $99.01 |
||
|
78184B
|
78184B
78184-95705 Bracket, Accelerator Control Cable[01.1992 - 10.1996] KR27 |
78184-95705 |
US $29.27 |
||
|
78189
|
78189
91131-40835 Bolt, Accelerator Pedal Stopper[01.1992 - 02.1992] KR27,YR2#,30 |
91131-40835 |
US $1.89 |
||
|
78189
|
78189
91131-40840
Bolt, Accelerator Pedal Stopper
[02.1992 - 10.1996] KR27,YR2#,30 |
91131-40840 |
— | ||
|
4561928020
|
4561928020
45619-28020 Cover, Knuckle Stopper |
45619-28020 |
US $3.93 |
||
|
9046806009
|
9046806009
90468-06009 New Genuine Part |
90468-06009 |
US $4.37 |
||
|
9048024013
|
9048024013
90480-24013 New Genuine Part |
90480-24013 |
US $7.13 |
||
|
9095001004
|
9095001004
90950-01004
Plug, Hole(For Front Door Panel)
|
90950-01004 |
— | ||
| replacement | |||||
|
9095001004
|
9095001004
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.90 |
||
