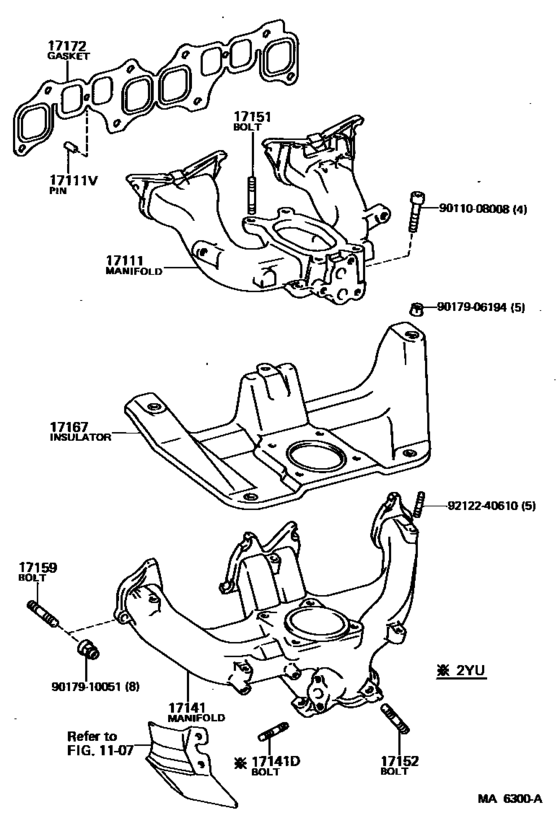

Manifold ([10.1982 - ] (8210- )1YJ,2YU) Diagram Toyota LITE/ TOWNACE
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- YM21G
- grade
- SW
- body
- WG
- Roof
- SRF
- ENGINE
- 2YU
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 08.1983
- To
- 08.1985
- Gear Shift Type
- 5H
- Seating Capacity
- 06S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-71010 Manifold, Intake[10.1982 - 09.1986] 1YJ,2YU..YM2# |
17111-71010 |
US $573.66 |
||
|
17111V
|
17111V
90250-08120 Pin, Straight, No.1[10.1982 - 09.1986] 1YJ,2YU..YM2# |
90250-08120 |
from US $1.07 |
||
|
17141
|
17141
17141-71010 Manifold, Exhaust[10.1982 - 08.1985] 2YU..YM21 |
17141-71010 |
US $317.41 |
||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[10.1982 - 08.1985] 2YU..YM21 L=28,S=8&17 |
90116-08128 |
US $4.16 |
||
|
17151
|
17151
92122-40835 Bolt, Stud(For Manifold To Carburetor)[10.1982 - 09.1986] 1YJ,2YU..YM2# |
92122-40835 |
US $1.31 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[10.1982 - 09.1986] 1C,2C..CM2# L=46.5,S=14&20; 1YJ,2YU..YM2# L=46.5,S=14&20 |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[10.1982 - 09.1986] 1YJ,2YU..YM2# |
90116-10063 |
US $3.68 |
||
|
17167
|
17167
17167-71020 Insulator, Exhaust Manifold Heat, No.1[10.1982 - 09.1986] 1YJ,2YU..YM2# |
17167-71020 |
US $101.34 |
||
|
17172
|
17172
17172-71010
Gasket, Manifold To Cylinder Head
[10.1982 - 06.1985] 1YJ,2YU..YM2# |
17172-71010 |
— | ||
| replacement | |||||
|
17172
|
17172
17172-71011 Gasket, Manifold To Cylinder Head[10.1982 - 06.1985] 1YJ,2YU..YM2# |
17172-71011 |
US $48.94 |
||
|
17172
|
17172
17172-71011 Gasket, Manifold To Cylinder Head[06.1985 - 09.1986] 1YJ,2YU..YM2# |
17172-71011 |
US $48.94 |
||
|
9011008008
|
9011008008
90110-08008 BOLT |
90110-08008 |
US $2.77 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9017910051
|
9017910051
90179-10051 NUT |
90179-10051 |
US $4.16 |
||
|
9212240610
|
9212240610
92122-40610 Bolt, Stud(For Manifold To Carburetor) |
92122-40610 |
US $2.08 |
||
