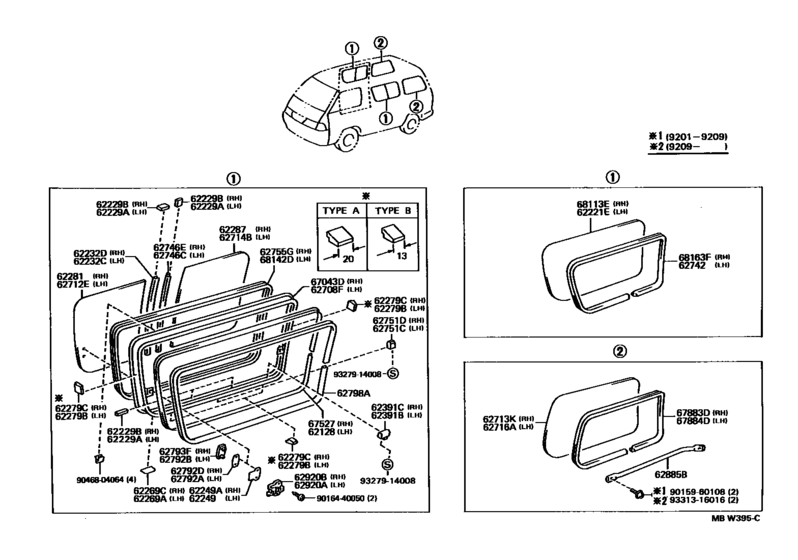

Side Window ([01.1992 - ] (9201- )LHD..05S) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- KR27
- grade
- STD
- Roof
- SRF
- ENGINE
- 5K
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62128
|
62128
62128-28020
Packing, Side Front Window, Lh
[01.1992 - 09.1993] CR27,KR2#,YR21..LHD..4D |
62128-28020 |
— | ||
|
62221E
|
62221E
62221-28010 Glass, Side Window, Front LhSIDE WINDOW, FRONT LH [01.1992 - 10.1996] CR27,KR27..LHD..05S |
62221-28010 |
US $232.96 |
||
|
62229A
|
62229A
62229-28010
Packing, Side Window
[03.1992 - 10.1996] CR27,KR27..LHD..05S 14 X 14 X 20 |
62229-28010 |
— | ||
|
62229A
|
62229A
62229-87001 Packing, Side Window[01.1992 - 03.1992] CR27,KR27..LHD..05S 10X10X20 |
62229-87001 |
US $2.77 |
||
|
62229A
|
62229A
62229-87002 Packing, Side Window[01.1992 - 03.1992] CR27,KR27..LHD..05S 10X10X15 |
62229-87002 |
US $2.77 |
||
|
62229A
|
62229A
62229-95J00 Packing, Side Window[01.1992 - 07.2000] CR27,KR2#,YR21..LHD..4D |
62229-95J00 |
US $1.92 |
||
|
62229B
|
62229B
62229-28010
Packing, Side Window
[03.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S 14 X 14 X 20 |
62229-28010 |
— | ||
|
62229B
|
62229B
62229-87001 Packing, Side Window[01.1992 - 03.1992] YR39..5D;CR27,KR27..LHD..05S 10X10X20 |
62229-87001 |
US $2.77 |
||
|
62229B
|
62229B
62229-87002 Packing, Side Window[01.1992 - 03.1992] YR39..5D;CR27,KR27..LHD..05S 10X10X15 |
62229-87002 |
US $2.77 |
||
|
62229B
|
62229B
62229-95J00 Packing, Side Window[01.1992 - 07.2000] YR39..5D;CR27,KR2#,YR21..LHD..4D 7 X 8 X 50 |
62229-95J00 |
US $1.92 |
||
|
62232C
|
62232C
62232-28010
Channel, Side Window Glass
[01.1992 - 10.1996] CR27,KR27..LHD..05S |
62232-28010 |
— | ||
|
62232D
|
62232D
62232-28010
Channel, Side Window Glass
[01.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S |
62232-28010 |
— | ||
|
62249
|
62249
62249-95700 Plate, Side Window, Rh[01.1992 - 09.1993] CR27,KR27,YR39..RHD..4D..(05S,06S) RH; CR27,KR27..LHD..05S LH |
62249-95700 |
from US $1.58 |
||
|
62249A
|
62249A
62249-95700 Plate, Side Window, Rh[01.1992 - 09.1993] CR27,KR27,YR39..RHD..(05S,06S) LH; YR39..5D;CR27,KR27..LHD..05S RH |
62249-95700 |
from US $1.58 |
||
|
62269A
|
62269A
62269-87001 Film, Side Window Frame, Rh[01.1992 - 07.2000] CR27,KR2#,YR21..LHD..4D |
62269-87001 |
US $2.77 |
||
|
62269C
|
62269C
62269-87001 Film, Side Window Frame, Rh[01.1992 - 07.2000] YR39..5D;CR27,KR2#,YR21..LHD..4D |
62269-87001 |
US $2.77 |
||
|
62279B
|
62279B
62279-28010
Spacer, Side Window Frame
[01.1992 - 07.2000] CR27,KR2#,YR21..LHD..4D TYPE A |
62279-28010 |
— | ||
|
62279B
|
62279B
62279-28020
Spacer, Side Window Frame
[01.1992 - 07.2000] CR27,KR2#,YR21..LHD..4D TYPE B |
62279-28020 |
— | ||
|
62279C
|
62279C
62279-28010
Spacer, Side Window Frame
[01.1992 - 07.2000] YR39..5D;CR27,KR2#,YR21..LHD..4D TYPE A |
62279-28010 |
— | ||
|
62279C
|
62279C
62279-28020
Spacer, Side Window Frame
[01.1992 - 07.2000] YR39..5D;CR27,KR2#,YR21..LHD..4D TYPE B |
62279-28020 |
— | ||
|
62281
|
62281
62281-28020 Glass, Slide Door Window, Front Rh[01.1992 - 09.1993] YR39..5D;CR27,KR27..LHD..05S *TEM,T=3.5,BLUE |
62281-28020 |
US $232.96 |
||
|
62281
|
62281
62281-28030 Glass, Slide Door Window, Front Rh[01.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S *TEM,T=3.5 |
62281-28030 |
US $218.40 |
||
|
62287
|
62287
62287-28080 Glass, Slide Door Window, Rear Rh[01.1992 - 09.1993] YR39..5D;CR27,KR27..LHD..05S *TEM,T=3.5,BLUE |
62287-28080 |
US $205.30 |
||
|
62287
|
62287
62287-28090 Glass, Slide Door Window, Rear Rh[01.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S *TEM,T=3.5 |
62287-28090 |
US $196.56 |
||
|
62391B
|
62391B
62391-28010 Stopper, Side Window, No.1 Front Rh[01.1992 - 10.1996] CR27,KR27..LHD..05S |
62391-28010 |
US $2.48 |
||
|
62391C
|
62391C
62391-28010 Stopper, Side Window, No.1 Front Rh[01.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S |
62391-28010 |
US $2.48 |
||
|
62708F
|
62708F
62708-28030 Frame Sub-Assy, Side Front Window, LhSIDE FRONT WINDOW, LH [01.1992 - 10.1996] CR27,KR27..LHD..05S |
62708-28030 |
US $155.79 |
||
|
62712E
|
62712E
62712-28040
Glass, Side Front Window, Lh
[01.1992 - 10.1996] CR27,KR27..LHD..05S *TEM,T=3.5 |
62712-28040 |
— | ||
| replacement | |||||
|
62712E
|
62712E
62712-28110
Glass, Side Front Window, Lh
[01.1992 - 10.1996] CR27,KR27..LHD..05S *TEM,T=3.5 |
62712-28110 |
— | ||
|
62712E
|
62712E
62712-28110
Glass, Side Front Window, Lh
[01.1992 - 09.1993] CR27,KR27..LHD..05S *TEM,T=3.5,BLUE |
62712-28110 |
— | ||
|
62713K
|
62713K
62713-28100 Glass, Side Window, Rear Rh[01.1992 - 07.2000] CR27,KR2#,YR21,39..05S,06S,08S *TEM,T=3.5 |
62713-28100 |
US $228.59 |
||
| replacement | |||||
|
62713K
|
62713K
62713-28110 Glass, Side Window, Rear Rh[01.1992 - 07.2000] CR27,KR2#,YR21,39..05S,06S,08S *TEM,T=3.5 |
62713-28110 |
US $238.78 |
||
|
62713K
|
62713K
62713-28110 Glass, Side Window, Rear Rh[01.1992 - 10.1996] CR27,KR27,YR39..05S,06S *TEM,T=3.5,BLUE |
62713-28110 |
US $238.78 |
||
|
62714B
|
62714B
62714-28030
Glass, Side Window, Rear Lh
[01.1992 - 10.1996] CR27,KR27..LHD..05S *TEM,T=3.5 |
62714-28030 |
— | ||
| replacement | |||||
|
62714B
|
62714B
62714-28070
Glass, Side Window, Rear Lh
[01.1992 - 10.1996] CR27,KR27..LHD..05S *TEM,T=3.5 |
62714-28070 |
— | ||
|
62714B
|
62714B
62714-28070
Glass, Side Window, Rear Lh
[01.1992 - 09.1993] CR27,KR27..LHD..05S *TEM,T=3.5,BLUE |
62714-28070 |
— | ||
|
62716A
|
62716A
62716-28090 Glass, Side Rear Window, Lh[01.1992 - 10.1996] CR27,KR27,YR22,39..STD..(05S,06S,08S) *TEM,T=3.5 |
62716-28090 |
US $232.96 |
||
| replacement | |||||
|
62716A
|
62716A
62716-28100 Glass, Side Rear Window, Lh[01.1992 - 10.1996] CR27,KR27,YR22,39..STD..(05S,06S,08S) *TEM,T=3.5 |
62716-28100 |
US $238.78 |
||
|
62716A
|
62716A
62716-28100 Glass, Side Rear Window, Lh[01.1992 - 10.1996] YR22..STD *TEM,T=3.5,BLUE; CR27,KR27,YR39..05S,06S *TEM,T=3.5,BLUE |
62716-28100 |
US $238.78 |
||
|
62742
|
62742
62741-28030 Weatherstrip, Quarter Window, Rh[01.1992 - 10.1996] CR27,KR27..LHD..05S |
62741-28030 |
US $109.20 |
||
|
62746C
|
62746C
62746-28010
Weatherstrip, Side Window Glass Channel, No.1
[01.1992 - 10.1996] CR27,KR27..LHD..05S |
62746-28010 |
— | ||
|
62746E
|
62746E
62746-28010
Weatherstrip, Side Window Glass Channel, No.1
[01.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S |
62746-28010 |
— | ||
|
62751C
|
62751C
62751-95661
Stop, Side Front Window Glass, Rh
[08.1993 - 10.1996] CR27,KR27..LHD..05S |
62751-95661 |
— | ||
|
62751D
|
62751D
62751-95661
Stop, Side Front Window Glass, Rh
[01.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S |
62751-95661 |
— | ||
|
62755G
|
62755G
62755-28040
Run, Slide Door Window, Rh
[01.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S |
62755-28040 |
— | ||
|
62792A
|
62792A
62792-95A00 Packing, Side Rear Window, Rh[01.1992 - 11.1992] CR27,KR27,YR39..RHD..4D..(05S,06S) RH; CR27,KR27..LHD..05S LH |
62792-95A00 |
from US $1.64 |
||
|
62792B
|
62792B
62793-95704 Retainer, Side Window Lock, No.1[01.1992 - 11.1992] CR27,KR27,YR39..RHD..4D..(05S,06S) RH; CR27,KR27..LHD..05S LH |
62793-95704 |
from US $6.81 |
||
|
62792D
|
62792D
62792-95A00 Packing, Side Rear Window, Rh[01.1992 - 11.1992] CR27,KR27,YR39..RHD..(05S,06S) LH; YR39..5D;CR27,KR27..LHD..05S RH |
62792-95A00 |
from US $1.64 |
||
|
62793F
|
62793F
62793-95704 Retainer, Side Window Lock, No.1[01.1992 - 11.1992] CR27,KR27,YR39..RHD..(05S,06S) LH; YR39..5D;CR27,KR27..LHD..05S RH |
62793-95704 |
from US $6.81 |
||
|
62798A
|
62798A
62798-28020
Moulding, Side Window, Front
[01.1992 - 01.1995] CR27,KR2#,YR39..4D..(05S,06S,08S) SIDE FRONT |
62798-28020 |
— | ||
|
62798A
|
62798A
62798-28040
Moulding, Side Window, Front
[01.1992 - 01.1995] YR22..STD;CR27,KR2#,YR21,39..4D..(05S,06S,08S) SLIDE DOOR |
62798-28040 |
— | ||
|
62885B
|
62885B
62885-28010 Guard, Quarter Window, No.2[01.1992 - 10.1996] CR27,KR27,YR39..05S,06S |
62885-28010 |
US $39.89 |
||
|
62920A
|
62920A
62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)[01.1992 - 09.1993] CR27,KR27,YR39..RHD..4D..(05S,06S) RH; CR27,KR27..LHD..05S LH |
62910-95703 |
from US $11.56 |
||
|
62920B
|
62920B
62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)[01.1992 - 09.1993] CR27,KR27,YR39..RHD..(05S,06S) LH; YR39..5D;CR27,KR27..LHD..05S RH |
62910-95703 |
from US $11.56 |
||
|
67043D
|
67043D
67043-28030 Frame Sub-Assy, Slide Door Window, Rh[01.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S |
67043-28030 |
US $196.56 |
||
|
67527
|
67527
67527-28010
Packing, Slide Door Window, Rh
[01.1992 - 09.1993] YR39..5D;CR27,KR2#,YR21..LHD..4D |
67527-28010 |
— | ||
|
67883D
|
67883D
67883-28030 Weatherstrip, Quarter Window, Rear[01.1992 - 07.2000] CR27,KR2#,YR21,39..05S,06S,08S |
67883-28030 |
US $110.66 |
||
|
67884D
|
67884D
67883-28030 Weatherstrip, Quarter Window, Rear[01.1992 - 10.1996] CR27,KR27,YR22,39..STD..(05S,06S,08S) |
67883-28030 |
US $110.66 |
||
|
68113E
|
68113E
68113-28020 Glass, Rear Door, Rh[01.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S |
68113-28020 |
US $206.75 |
||
|
68142D
|
68142D
68142-28040
Run, Side Front Window, Lh
[01.1992 - 10.1996] CR27,KR27..LHD..05S |
68142-28040 |
— | ||
|
68163F
|
68163F
68163-28010 Weatherstrip, Slide Door Glass, Rh[01.1992 - 10.1996] YR39..5D;CR27,KR27..LHD..05S |
68163-28010 |
US $117.94 |
||
|
9015960108
|
9015960108
90159-60108 New Genuine Part |
90159-60108 |
US $1.05 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
US $1.28 |
||
|
9046804064
|
9046804064
90468-04064 New Genuine Part |
90468-04064 |
US $2.72 |
||
|
9327914008
|
9327914008
93279-14008
New Genuine Part
|
93279-14008 |
— | ||
|
9331316016
|
9331316016
93313-16016 New Genuine Part |
93313-16016 |
US $0.87 |
||
