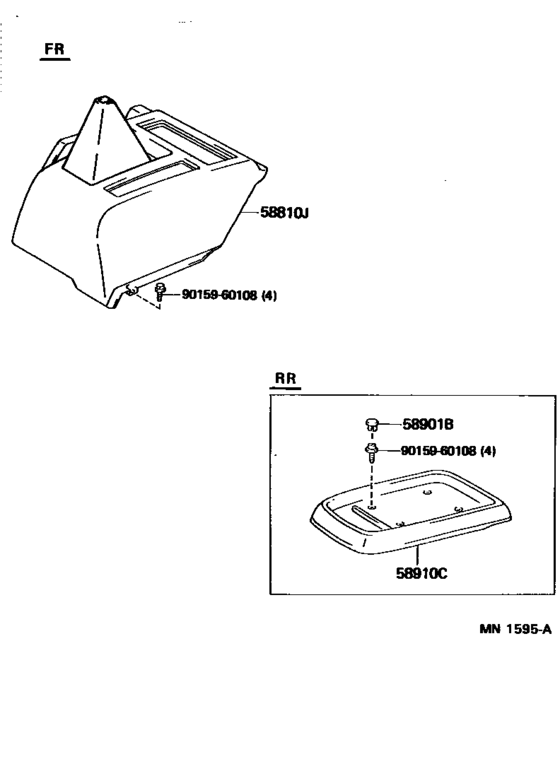

Console Box & Bracket ([01.1992 - ] (9201- )RHD) Diagram Toyota LITEACE
- Year
- 1992 - 1994
- Sales region
- Europe
- Frame
- KR27
- grade
- STD
- Roof
- MRF
- ENGINE
- 5K
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 05.1994
- No.of Doors
- 4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58810J
|
58810J
58810-28130-B0 Box Assy, Console[01.1992 - 01.1995] CR27,KR27..RHD GRAY,TRIM1# |
58810-28130-B0 |
US $238.78 |
||
|
58901B
|
58901B
90950-01541-B0 Plug, Hole(For Rear Console Box)[01.1992 - 01.1995] CR2#,KR2#,YR2# GRAY,TRIM1# |
90950-01541-B0 |
US $3.20 |
||
| replacement | |||||
|
58901B
|
58901B
90950-01541-22 Plug, Hole(For Rear Console Box) (Black)[01.1992 - 01.1995] CR2#,KR2#,YR2# GRAY,TRIM1# |
90950-01541-22 |
US $3.06 |
||
|
58910C
|
58910C
58911-87001-B0 Box Assy, Console, Rear[01.1992 - 09.1993] CR2#,KR2#,YR2# GRAY,TRIM1# |
58911-87001-B0 |
US $243.15 |
||
|
9015960108
|
9015960108
90159-60108 New Genuine Part |
90159-60108 |
US $1.05 |
||
