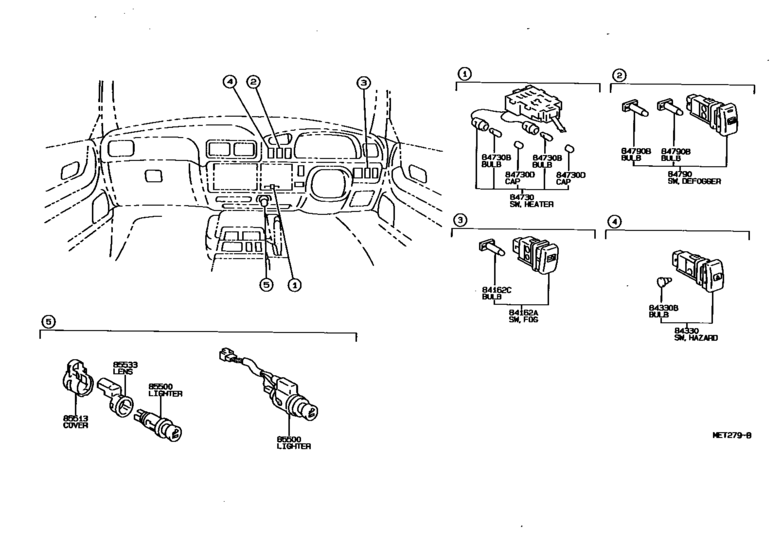

Switch & Relay & Computer ([01.1992 - ] INSTRUMENT PANEL SWITCH (9201- )RHD) Diagram Toyota LITEACE
- Year
- 1992 - 1994
- Sales region
- Europe
- Frame
- KR27
- grade
- STD
- Roof
- MRF
- ENGINE
- 5K
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 05.1994
- No.of Doors
- 4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84162A
|
84162A
84160-28030 Switch, Rear Fog LampREAR FOG LAMP [01.1992 - 01.1995] CR27,KR27..RHD |
84160-28030 |
US $56.93 |
||
|
84162C
|
84162C
84999-10320 Bulb, Satellite Switch[01.1992 - 01.1995] CR27,KR27..RHD 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84330
|
84330
84332-28090-B0
Switch Assy, Hazard Warning Signal
[01.1992 - 01.1995] CR27,KR27..RHD GRAY,TRIM1# |
84332-28090-B0 |
— | ||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[01.1992 - 01.1995] CR2#,KR2#,YR2# 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84730
|
84730
84732-28070
Switch Assy, Heater Blower
[01.1992 - 01.1995] CR27,KR27..RHD |
84732-28070 |
— | ||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[01.1992 - 01.1995] CR27,KR27..RHD 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
84730D
|
84730D
90339-04023 Cap, Position Indicator Lamp[01.1992 - 01.1995] CR27,KR27..RHD |
90339-04023 |
US $3.84 |
||
|
84790
|
84790
84790-28020-B0 Switch Assy, Rear Window Defogger[01.1992 - 01.1995] CR27,KR27..RHD GRAY,TRIM1# |
84790-28020-B0 |
US $64.65 |
||
|
84790B
|
84790B
84999-10320 Bulb, Satellite Switch[01.1992 - 01.1995] CR27,KR27..RHD 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
85500
|
85500
85500-17040
Lighter Assy, Cigarette
[01.1992 - 08.1994] CR27,KR27..RHD |
85500-17040 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-17060 Lighter Assy, Cigarette[01.1992 - 08.1994] CR27,KR27..RHD |
85500-17060 |
from US $31.34 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[01.1992 - 01.1995] CR27,KR27..RHD |
85513-12020 |
from US $5.05 |
||
|
85533
|
85533
85533-26010 Lens, Cigarette Lighter Indicator[01.1992 - 01.1995] CR27,KR27..RHD |
85533-26010 |
US $12.80 |
||
