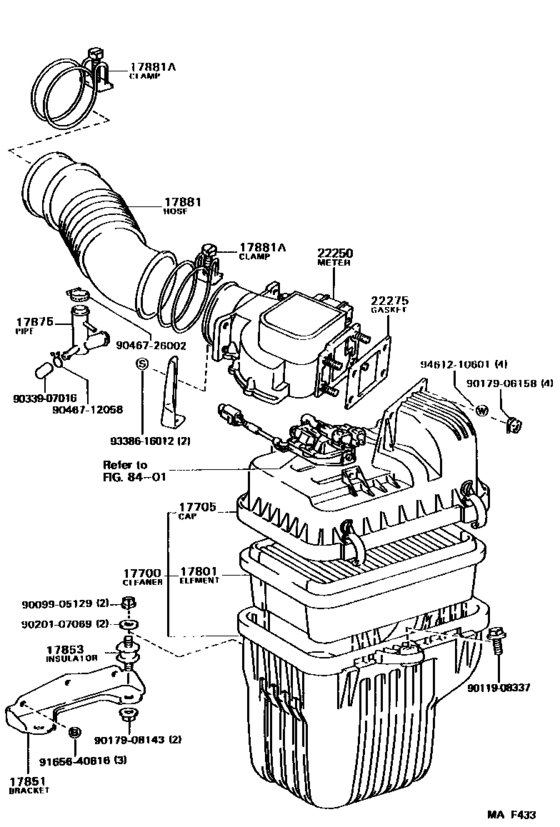

Air Cleaner ([01.1992 - 10.1996] (9201-9610)4YEC) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- YR22
- grade
- STD
- Roof
- MRF
- ENGINE
- 4YEC
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-73043
Cleaner Assy, Air
[01.1992 - 10.1996] 4YEC..YR22 |
17700-73043 |
— | ||
|
17705
|
17705
17705-73011
Cap Sub-Assy, Air Cleaner
[01.1992 - 10.1996] 4YEC..YR22 |
17705-73011 |
— | ||
|
17801
|
17801
17801-70010
Element Sub-Assy, Air Cleaner Filter
[01.1992 - 10.1996] 4YEC..YR22 |
17801-70010 |
— | ||
|
17851
|
17851
17851-73020
Bracket, Air Cleaner Support
[01.1992 - 10.1996] 4YEC..YR22 |
17851-73020 |
— | ||
|
17853
|
17853
17853-73020 Insulator, Air Cleaner Bracket[01.1992 - 10.1996] 4YEC..YR22 |
17853-73020 |
US $12.38 |
||
|
17875
|
17875
17875-73011 Pipe, Intake Air Connector[01.1992 - 10.1996] 4YEC..YR22 |
17875-73011 |
US $32.18 |
||
|
17881
|
17881
17881-73020
Hose, Air Cleaner, No.1
[01.1992 - 10.1996] 4YEC..YR22 |
17881-73020 |
— | ||
|
17881A
|
17881A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[01.1992 - 10.1996] 4YEC..YR22 THROTTLE BODY SIDE |
96111-10710 |
from US $2.56 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[01.1992 - 10.1996] 4YEC..YR22 AIR FLOW METER SIDE |
96111-10800 |
from US $2.56 |
||
|
22250
|
22250
22250-73010
Meter Assy, Intake Air Flow
[01.1992 - 09.1993] 4YEC..YR22 |
22250-73010 |
— | ||
|
22275
|
22275
22275-41010 Gasket, Air Flow Meter[01.1992 - 10.1996] 4YEC..YR22 |
22275-41010 |
US $10.88 |
||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9011908337
|
9011908337
90119-08337 New Genuine Part |
90119-08337 |
US $2.04 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.76 |
||
|
9020107069
|
9020107069
90201-07069 Collar, Speedometer Flexible Tube Shaft Gasket (Mtm) |
90201-07069 |
US $2.24 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9046712058
|
9046712058
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90467-12058 |
from US $0.72 |
||
|
9046726002
|
9046726002
90467-26002
Clip(For Ventilation Hose)
|
90467-26002 |
— | ||
| replacement | |||||
|
9046726002
|
9046726002
96134-52600 Clip Or Clamp(For Ventilation Hose) |
96134-52600 |
from US $3.84 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9338616012
|
9338616012
93386-16012 New Genuine Part |
93386-16012 |
US $1.02 |
||
|
9461210601
|
9461210601
94612-10601 New Genuine Part |
94612-10601 |
US $0.87 |
||
