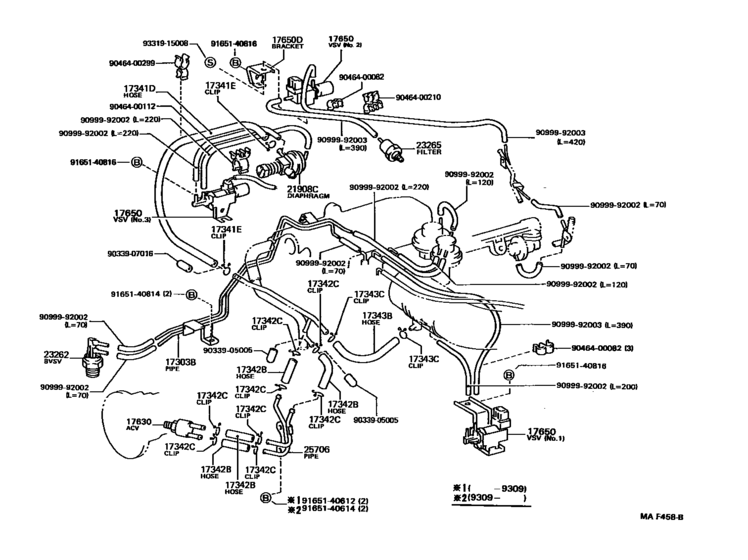

Vacuum Piping ([01.1992 - 10.1996] (9201-9610)4YEC) Diagram Toyota LITEACE
- Year
- 1992 - 1996
- Sales region
- General
- Frame
- YR22
- grade
- STD
- Roof
- MRF
- ENGINE
- 4YEC
- TRANSMISSION
- ATM
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 10.1996
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-73011 Pipe Sub-Assy, Air, No.1AIR, NO.1 [01.1992 - 05.1994] 4YEC..YR22 |
17303-73011 |
US $60.28 |
||
|
17341D
|
17341D
17341-73020
Hose, No.1(For Idle-Up)
[01.1992 - 10.1996] 4YEC..YR22 |
17341-73020 |
— | ||
|
17341E
|
17341E
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose)[01.1992 - 10.1996] 4YEC..YR22 |
90467-12058 |
from US $0.72 |
||
|
17342B
|
17342B
90445-12127
Hose, No.2(For Idle-Up)
[01.1992 - 10.1996] 4YEC..YR22 |
90445-12127 |
— | ||
|
17342C
|
17342C
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose)[01.1992 - 10.1996] 4YEC..YR22..STD |
90467-12058 |
from US $0.72 |
||
|
17343B
|
17343B
90445-12130
Hose, No.3(For Idle-Up)
[01.1992 - 10.1996] 4YEC..YR22 |
90445-12130 |
— | ||
|
17343C
|
17343C
90467-12058 Clamp Or Clip(For Radiator Reserve Tank Hose)[01.1992 - 10.1996] 4YEC..YR22 |
90467-12058 |
from US $0.72 |
||
|
17630
|
17630
17630-70010 Valve Assy, Air Control[01.1992 - 10.1996] 4YEC..YR22 |
17630-70010 |
US $202.38 |
||
|
17650
|
17650
90910-12003
Valve Assy, Vacuum Switching
[01.1992 - 09.1993] 4YEC..YR22 W(AIR CONDITIONER),NO.1 |
90910-12003 |
— | ||
|
17650
|
17650
90910-12005
Valve Assy, Vacuum Switching
[01.1992 - 01.1995] 4YEC..YR22 NO.1 |
90910-12005 |
— | ||
|
17650
|
17650
90910-12043 Valve Assy, Vacuum Switching[01.1992 - 01.1995] 4YEC..YR22 NO.2 |
90910-12043 |
US $66.53 |
||
|
17650D
|
17650D
25861-73010 Bracket, Vacuum Switching Valve[01.1992 - 10.1996] 4YEC..YR22 |
25861-73010 |
US $12.23 |
||
|
21908C
|
21908C
88606-28010
Diaphragm Sub-Assy, Idle-Up
[01.1992 - 10.1996] 4YEC..YR22 |
88606-28010 |
— | ||
|
23262
|
23262
90925-05017 Valve, Bimetal Vacuum Switching, No.1[01.1992 - 05.1994] 4YEC..YR22 |
90925-05017 |
US $41.95 |
||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[01.1992 - 10.1996] 4YEC..YR22 |
90917-11022 |
US $15.50 |
||
|
25706
|
25706
17645-73011 Pipe Sub-Assy, Vacuum Transmitting, No.1[01.1992 - 10.1996] 4YEC..YR22 |
17645-73011 |
US $18.93 |
||
|
9033905005
|
9033905005
90339-05005 New Genuine Part |
90339-05005 |
US $2.72 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400112
|
9046400112
90464-00112 New Genuine Part |
90464-00112 |
US $4.22 |
||
|
9046400210
|
9046400210
90464-00210 New Genuine Part |
90464-00210 |
US $3.06 |
||
|
9046400299
|
9046400299
90464-00299 New Genuine Part |
90464-00299 |
US $4.80 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.99 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
