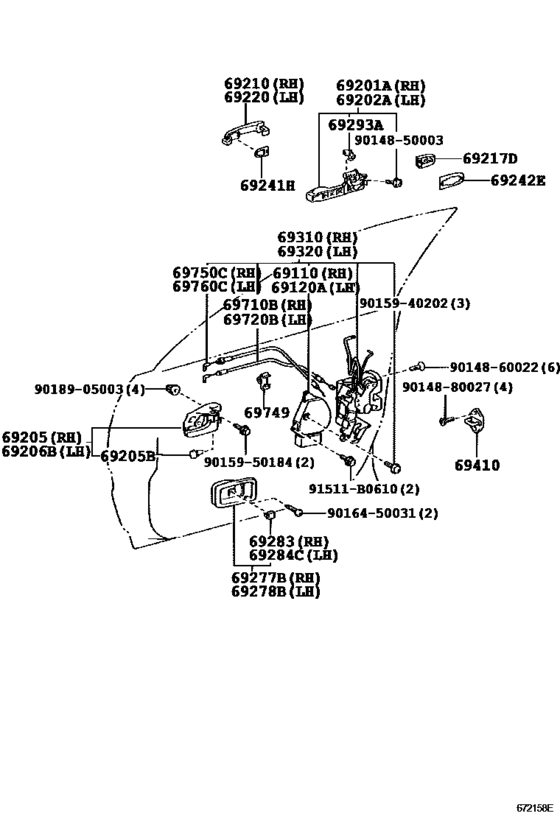

Front Door Lock & Handle ([10.2000 - ] (0010- )) Diagram Toyota MARK 2
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- JZX115
- grade
- GDG
- body
- SED
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 10.2000
- To
- 11.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69110
|
69110
69110-22010 Actuator Assy, Front Door Lock, Rh[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
69110-22010 |
US $120.85 |
||
|
69120A
|
69120A
69120-22010 Actuator Assy, Front Door Lock, Lh[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
69120-22010 |
US $120.85 |
||
|
69201A
|
69201A
69201-42010 Frame Sub-Assy, Front Door Outside Handle, Rh[10.2000 - 10.2002] GX11#,JZX11# |
69201-42010 |
US $71.64 |
||
| replacement | |||||
|
69201A
|
69201A
69201-52010 Frame Sub-Assy, Front Door Outside Handle, Rh[10.2000 - 10.2002] GX11#,JZX11# |
69201-52010 |
US $45.30 |
||
|
69201A
|
69201A
69201-52010 Frame Sub-Assy, Front Door Outside Handle, Rh[10.2002 -] GX11#,JZX11#..WG; GX11#,JZX11#..SED |
69201-52010 |
US $45.30 |
||
|
69202A
|
69202A
69202-42010 Frame Sub-Assy, Front Door Outside Handle, Lh[10.2000 - 10.2002] GX11#,JZX11# |
69202-42010 |
US $71.64 |
||
| replacement | |||||
|
69202A
|
69202A
69202-52010 Frame Sub-Assy, Front Door Outside Handle, Lh[10.2000 - 10.2002] GX11#,JZX11# |
69202-52010 |
US $45.30 |
||
|
69202A
|
69202A
69202-52010 Frame Sub-Assy, Front Door Outside Handle, Lh[10.2002 -] GX11#,JZX11#..WG; GX11#,JZX11#..SED |
69202-52010 |
US $45.30 |
||
|
69205
|
69205
69205-22090-B0
Handle Sub-Assy, Front Door Inside, Rh
[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
69205-22090-B0 |
— | ||
| replacement | |||||
|
69205
|
69205
69205-22090-C0 Handle Sub-Assy, Front Door Inside, Rh (Black)[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
69205-22090-C0 |
US $41.06 |
||
|
69205
|
69205
69205-22090-E0 Handle Sub-Assy, Front Door Inside, Rh[10.2002 - 11.2004] GX11#,JZX11#..GD,GDG SANDAL WOOD,TRIM0# |
69205-22090-E0 |
US $41.06 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
90541-04014 |
from US $1.60 |
||
|
69206B
|
69206B
69206-22090-B0 Handle Sub-Assy, Front Door Inside, Lh[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
69206-22090-B0 |
US $41.06 |
||
| replacement | |||||
|
69206B
|
69206B
69206-47010-B2
Handle Sub-Assy, Front Door Inside, Lh
[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
69206-47010-B2 |
— | ||
|
69206B
|
69206B
69206-22090-E0 Handle Sub-Assy, Front Door Inside, Lh[10.2002 - 11.2004] GX11#,JZX11#..GD,GDG SANDAL WOOD,TRIM0# |
69206-22090-E0 |
US $41.06 |
||
|
69210
|
69210
69210-12260 Handle Assy, Front Door, Outside Rh[02.2001 - 06.2007] JZX110;GX11#,JZX115..GD,GDG,IR,IRS ＊ＣＲ |
69210-12260 |
from US $30.73 |
||
|
69210
|
69210
69211-12200 Handle Assy, Front Door, Outside Rh[10.2000 - 02.2001] GX11#,JZX11# ＊ＣＲ |
69211-12200 |
US $35.38 |
||
| replacement | |||||
|
69210
|
69210
69210-12260 Handle Assy, Front Door, Outside Rh[10.2000 - 02.2001] GX11#,JZX11# ＊ＣＲ |
69210-12260 |
from US $30.73 |
||
|
69217D
|
69217D
69217-12010 Cover, Front Door Outside Handle[10.2000 - 06.2007] JZX110;GX11#,JZX115..GD,GDG,IR,IRS ＊ＣＲ |
69217-12010 |
from US $6.24 |
||
|
69220
|
69220
69210-12260 Handle Assy, Front Door, Outside Rh[02.2001 - 06.2007] JZX110;GX11#,JZX115..GD,GDG,IR,IRS ＊ＣＲ |
69210-12260 |
from US $30.73 |
||
|
69220
|
69220
69211-12200 Handle Assy, Front Door, Outside Rh[10.2000 - 02.2001] GX11#,JZX11# ＊ＣＲ |
69211-12200 |
US $35.38 |
||
| replacement | |||||
|
69220
|
69220
69210-12260 Handle Assy, Front Door, Outside Rh[10.2000 - 02.2001] GX11#,JZX11# ＊ＣＲ |
69210-12260 |
from US $30.73 |
||
|
69241H
|
69241H
69241-42020 Pad, Front Door Outside Handle, Rh[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
69241-42020 |
from US $6.40 |
||
|
69242E
|
69242E
69242-42010 Pad, Front Door Outside Handle, Lh[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
69242-42010 |
from US $6.34 |
||
|
69277B
|
69277B
69277-22100-B0 Bezel, Front Door Inside Handle, Rh[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
69277-22100-B0 |
US $13.40 |
||
| replacement | |||||
|
69277B
|
69277B
69277-22100-C0 Bezel, Front Door Inside Handle, Rh[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
69277-22100-C0 |
US $13.10 |
||
|
69277B
|
69277B
69277-22100-E0 Bezel, Front Door Inside Handle, Rh[10.2002 - 11.2004] GX11#,JZX11#..GD,GDG SANDAL WOOD,TRIM0# |
69277-22100-E0 |
US $13.40 |
||
|
69278B
|
69278B
69278-22060-B0 Bezel, Front Door Inside Handle, Lh[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
69278-22060-B0 |
US $13.40 |
||
|
69278B
|
69278B
69278-22060-E0
Bezel, Front Door Inside Handle, Lh
[10.2002 - 11.2004] GX11#,JZX11#..GD,GDG SANDAL WOOD,TRIM0# |
69278-22060-E0 |
— | ||
|
69283
|
69283
69283-30040-B9 Plug, Front Door Inside Handle Bezel, Rh[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
69283-30040-B9 |
US $2.62 |
||
| replacement | |||||
|
69283
|
69283
69283-30040-P0 Plug, Front Door Inside Handle Bezel (DK.GRAY)[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
69283-30040-P0 |
US $2.27 |
||
|
69283
|
69283
69283-30040-E2 Plug, Front Door Inside Handle Bezel, Rh[10.2002 - 11.2004] GX11#,JZX11#..GD,GDG SANDAL WOOD,TRIM0# |
69283-30040-E2 |
US $2.62 |
||
|
69284C
|
69284C
69284-30040-B9 Plug, Front Door Inside Handle Bezel, Lh[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT SADDLE GRAY,TRIM0#,1# |
69284-30040-B9 |
US $2.62 |
||
|
69284C
|
69284C
69284-30040-E2 Plug, Front Door Inside Handle Bezel, Lh[10.2002 - 11.2004] GX11#,JZX11#..GD,GDG SANDAL WOOD,TRIM0# |
69284-30040-E2 |
US $2.62 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS 右側 |
69293-12030 |
from US $2.09 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS 左側 |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69030-22430 Lock Assy, Front Door, Rh[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
69030-22430 |
US $209.44 |
||
|
69320
|
69320
69040-22560 Lock Assy, Front Door, Lh[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
69040-22560 |
US $224.22 |
||
|
69410
|
69410
69410-20110 Plate Assy, Front Door Lock Striker[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
69410-20110 |
US $15.96 |
||
|
69710B
|
69710B
69710-22060 Cable Assy, Front Door Lock Remote Control, Rh[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
69710-22060 |
US $24.32 |
||
|
69720B
|
69720B
69710-22060 Cable Assy, Front Door Lock Remote Control, Rh[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
69710-22060 |
US $24.32 |
||
|
69749
|
69749
69749-30050 Clamp, Front Door Lock Link[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
69749-30050 |
US $3.20 |
||
|
69750C
|
69750C
69750-22050 Cable Assy, Front Door Inside Locking, Rh[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
69750-22050 |
US $24.32 |
||
|
69760C
|
69760C
69760-22050 Cable Assy, Front Door Inside Locking Lh[10.2000 -] GX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS |
69760-22050 |
US $24.32 |
||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $0.96 |
||
|
9015950184
|
9015950184
90159-50184 New Genuine Part |
90159-50184 |
US $1.60 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.68 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
