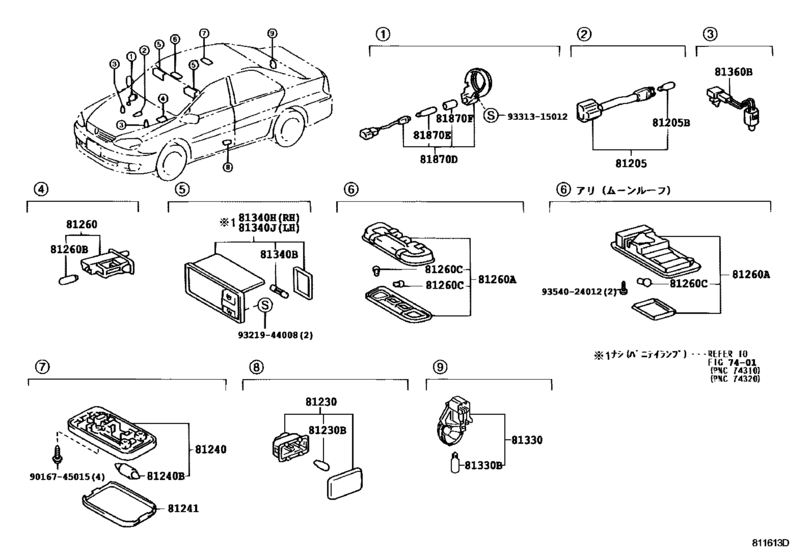

Interior Lamp ([10.2000 - ] (0010- )SED) Diagram Toyota MARK 2
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- JZX115
- grade
- GDG
- body
- SED
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 10.2000
- To
- 11.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81205
|
81205
81850-53011 Lamp Sub-Assy, Ash Receptacle[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
81850-53011 |
US $18.64 |
||
|
81205B
|
81205B
90981-11014 Bulb, Position Indicator Lamp[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
81230
|
81230
81230-30140 Lamp Assy, Courtesy[10.2000 - 10.2002] GX11#,JZX11#..SED |
81230-30140 |
from US $15.46 |
||
|
81230B
|
81230B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[10.2000 - 06.2007] JZX110;GX11#,JZX115..GD,GDG,IR,IRS １２Ｖ ３．８Ｗ |
90981-11020 |
from US $2.72 |
||
|
81240
|
81240
81023-22010-A0 Lamp Assy, Room, No.1[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
81023-22010-A0 |
US $37.56 |
||
| replacement | |||||
|
81240
|
81240
81240-51010-A0 Lamp Assy, Room, No.1[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
81240-51010-A0 |
US $42.22 |
||
|
81240
|
81240
81023-22010-B0 Lamp Assy, Room, No.1[10.2000 - 10.2002] JZX110..GDS,GDV MD.CHARCOAL,TRIM2#; GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
81023-22010-B0 |
US $37.56 |
||
| replacement | |||||
|
81240
|
81240
81240-51010-B1 Lamp Assy, Room, No.1[10.2000 - 10.2002] JZX110..GDS,GDV MD.CHARCOAL,TRIM2#; GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
81240-51010-B1 |
US $45.14 |
||
|
81240B
|
81240B
90981-14004 Bulb, Room Lamp, No.1[10.2000 - 10.2002] GX11#,JZX11#..SED １２Ｖ ８Ｗ |
90981-14004 |
from US $2.28 |
||
|
81241
|
81241
81241-32031
Lens, Room Lamp, No.1
[10.2000 - 03.2001] GX11#,JZX11# |
81241-32031 |
— | ||
|
81241
|
81241
81241-51010 Lens, Room Lamp, No.1[03.2001 - 10.2002] GX11#,JZX11#..SED |
81241-51010 |
US $10.98 |
||
|
81260
|
81260
81260-22160 Lamp Assy, Glove Box[10.2000 - 06.2002] GX11#,JZX11# |
81260-22160 |
US $13.34 |
||
|
81260
|
81260
81260-33030 Lamp Assy, Glove Box[06.2002 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
81260-33030 |
from US $12.58 |
||
|
81260A
|
81260A
81260-22180-A0
Lamp Assy, Map
[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
81260-22180-A0 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-22180-B2 Lamp Assy, Map[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
81260-22180-B2 |
US $96.10 |
||
|
81260A
|
81260A
81260-22180-B1
Lamp Assy, Map
[10.2000 - 10.2002] JZX110..GDS,GDV MD.CHARCOAL,TRIM2#; GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
81260-22180-B1 |
— | ||
| replacement | |||||
|
81260A
|
81260A
81260-22190-B0 Lamp Assy, Map[10.2000 - 10.2002] JZX110..GDS,GDV MD.CHARCOAL,TRIM2#; GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
81260-22190-B0 |
US $126.67 |
||
|
81260A
|
81260A
81260-32090-A2 Lamp Assy, Map[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM0# |
81260-32090-A2 |
US $157.25 |
||
|
81260A
|
81260A
81260-32090-B2 Lamp Assy, Map[10.2000 - 10.2002] JZX110..GDS,GDV ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD.CHARCOAL,TRIM2#; GX11#,JZX11#..GD,GDG,GDGT ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD.CHARCOAL,TRIM1# |
81260-32090-B2 |
US $167.04 |
||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.07 |
||
|
81260C
|
81260C
90981-12014 Bulb, Room Lamp, No.1[10.2000 - 10.2002] GX11#,JZX11#..SED １２Ｖ １０Ｗ,ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
90981-12014 |
from US $2.72 |
||
|
81260C
|
81260C
90981-12020 Bulb, Room Lamp, No.1[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS １２Ｖ ８Ｗ |
90981-12020 |
from US $2.24 |
||
|
81330
|
81330
81330-12020 Lamp Assy, Luggage Compartment, No.1[10.2000 - 10.2002] GX11#,JZX11#..SED |
81330-12020 |
from US $10.83 |
||
|
81330B
|
81330B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[10.2000 - 10.2002] GX11#,JZX11#..SED １２Ｖ ３．８Ｗ |
90981-11020 |
from US $2.72 |
||
|
81340B
|
81340B
90981-14007 Bulb, Room Lamp, No.1[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS １２Ｖ ３Ｗ,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ |
90981-14007 |
from US $4.76 |
||
|
81340H
|
81340H
81350-30050-A0 Lamp Assy, Vanity[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
81350-30050-A0 |
US $109.78 |
||
|
81340H
|
81340H
81350-30050-B0 Lamp Assy, Vanity[10.2000 - 10.2002] JZX110..GDS,GDV MD.CHARCOAL,TRIM2#; GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
81350-30050-B0 |
US $113.57 |
||
|
81340J
|
81340J
81340-30090-A0
Lamp Assy, Vanity
[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT IVORY,TRIM0# |
81340-30090-A0 |
— | ||
|
81340J
|
81340J
81340-30090-B0 Lamp Assy, Vanity[10.2000 - 10.2002] JZX110..GDS,GDV MD.CHARCOAL,TRIM2#; GX11#,JZX11#..GD,GDG,GDGT MD.CHARCOAL,TRIM1# |
81340-30090-B0 |
US $113.57 |
||
|
81360B
|
81360B
81090-50010 Lamp Assy, Interior Illumination, No.1[10.2000 -] JZX11#..GDG,GDGT,IRS,IRV １２Ｖ １．８Ｗ |
81090-50010 |
US $23.15 |
||
|
81870D
|
81870D
81870-22100 Lamp Assy, Key Cylinder[10.2000 - 10.2002] GX11#,JZX11#..SED |
81870-22100 |
US $63.63 |
||
|
81870E
|
81870E
90981-11014 Bulb, Position Indicator Lamp[10.2000 - 10.2002] GX11#,JZX11#..SED １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
81870F
|
81870F
84998-10080
Cap, Key Cylinder Lamp Bulb
[10.2000 - 10.2002] GX11#,JZX11#..SED |
84998-10080 |
— | ||
|
9016745015
|
9016745015
90167-45015 New Genuine Part |
90167-45015 |
US $1.46 |
||
|
9321944008
|
9321944008
93219-44008 New Genuine Part |
93219-44008 |
US $1.46 |
||
|
9331315012
|
9331315012
93313-15012 New Genuine Part |
93313-15012 |
US $1.05 |
||
|
9354024012
|
9354024012
93540-24012 New Genuine Part |
93540-24012 |
US $2.33 |
||
