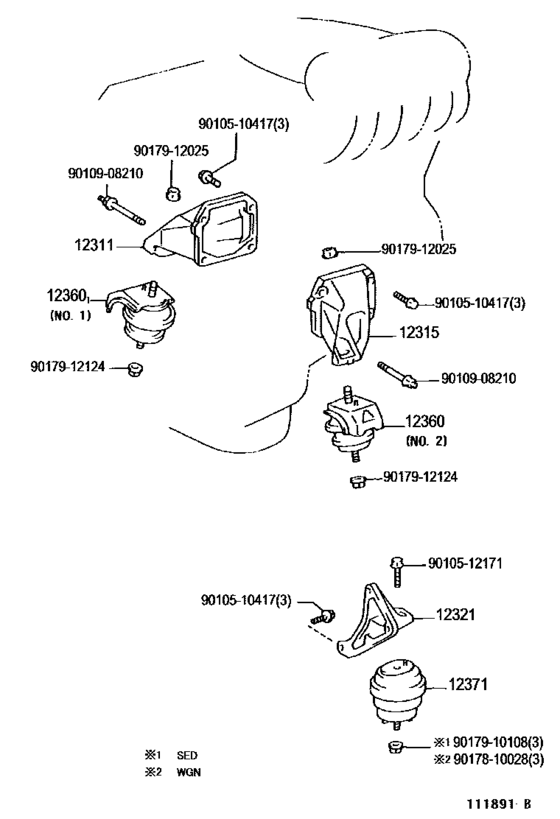

Mounting ([10.2000 - ] (0010- )1JZGE) Diagram Toyota MARK 2
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- JZX115
- grade
- GDG
- body
- SED
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 10.2000
- To
- 11.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-46100 Bracket, Engine Mounting, Front No.1 Rh[10.2000 -] 1JZGE..JZX115 |
12311-46100 |
US $116.48 |
||
|
12315
|
12315
12315-46100
Bracket, Engine Mounting, Front No.1 Lh
[10.2000 -] 1JZGE..JZX115 |
12315-46100 |
— | ||
|
12321
|
12321
12321-50010 Bracket, Engine Mounting, Rear, No.1[10.2000 -] 1JZGE..JZX115; 1GFE..GX115..IR |
12321-50010 |
US $51.40 |
||
|
12360
|
12360
12360-46080 Insulator Assy, Engine Mounting, FrontRight [10.2000 -] 1JZGE..JZX115 ＮＯ．１ |
12360-46080 |
US $170 |
||
|
12360
|
12360
12380-46030 Insulator Assy, Engine Mounting, FrontLeft [10.2000 -] 1JZGE..JZX115 ＮＯ．２ |
12380-46030 |
US $170 |
||
|
12371
|
12371
12371-46130
Insulator, Engine Mounting, Rear No.1
[10.2000 - 11.2001] 1JZGE..JZX115; 1GFE..GX115 |
12371-46130 |
— | ||
| replacement | |||||
|
12371
|
12371
12371-46240 Insulator, Engine Mounting, Rear No.1[10.2000 - 11.2001] 1JZGE..JZX115; 1GFE..GX115 |
12371-46240 |
US $106.40 |
||
|
12371
|
12371
12371-46240 Insulator, Engine Mounting, Rear No.1[11.2001 -] 1JZGE..JZX115; 1GFE..GX115..IR |
12371-46240 |
US $106.40 |
||
|
9010510417
|
9010510417
90105-10417 Bolt (For Front Differential Carrier Cover Setting) |
90105-10417 |
US $2.72 |
||
|
9010512171
|
9010512171
90105-12171 Bolt, Lift Arm Body Bracket |
90105-12171 |
US $4.08 |
||
|
9010908210
|
9010908210
90109-08210 New Genuine Part |
90109-08210 |
US $6.56 |
||
|
9017810028
|
9017810028
90178-10028 New Genuine Part |
90178-10028 |
US $1.92 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017912025
|
9017912025
90179-12025 Nut (For Rear Axle Carrier) |
90179-12025 |
from US $1.21 |
||
|
9017912124
|
9017912124
90179-12124 New Genuine Part |
90179-12124 |
US $4.02 |
||
