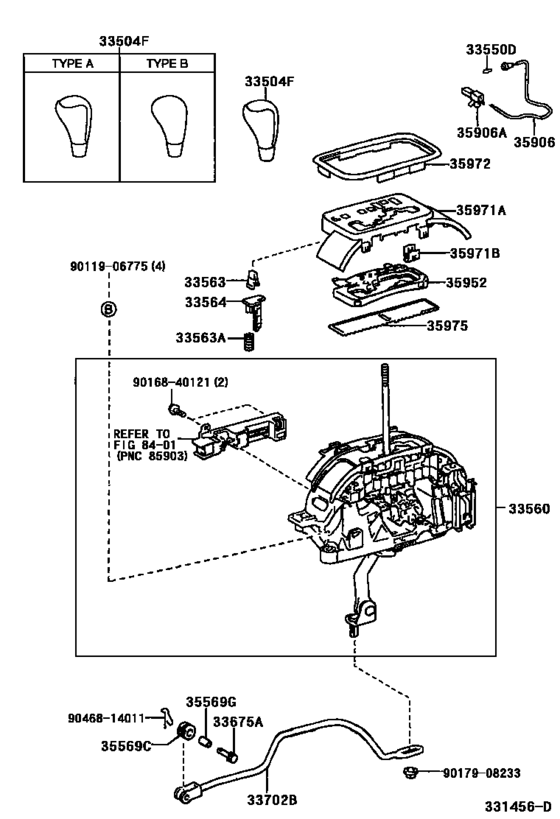

Shift Lever & Retainer ([10.2000 - ] (0010- )GX115,JZX115) Diagram Toyota MARK 2
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- JZX115
- grade
- GDG
- body
- SED
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 10.2000
- To
- 11.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-30310-B3 Knob Sub-Assy, Shift Lever[10.2000 - 10.2002] JZX11#..GDG,GDGT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SADDLE GRAY,TRIM0#,1# |
33504-30310-B3 |
US $110.66 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30310-P0 Knob Sub-Assy, Shift LeverSHIFT LEVER [10.2000 - 10.2002] JZX11#..GDG,GDGT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SADDLE GRAY,TRIM0#,1# |
33504-30310-P0 |
US $110.66 |
||
|
33504F
|
33504F
33504-30310-E3 Knob Sub-Assy, Shift Lever[10.2002 - 11.2004] JZX11#..GDG TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0# |
33504-30310-E3 |
US $110.66 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30310-P0 Knob Sub-Assy, Shift LeverSHIFT LEVER [10.2002 - 11.2004] JZX11#..GDG TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SANDAL WOOD,TRIM0# |
33504-30310-P0 |
US $110.66 |
||
|
33550D
|
33550D
90981-11014 Bulb, Position Indicator Lamp[10.2000 - 10.2002] GX11#,JZX11#..SED..ATM １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
33560
|
33560
33560-22040 Unit Assy, Shift Lock Control[10.2000 - 10.2002] GX115,JZX115..SED |
33560-22040 |
US $404.77 |
||
|
33563
|
33563
33563-22080 Button, Shift Lock Release[10.2000 - 10.2002] GX11#,JZX11#..SED..ATM |
33563-22080 |
US $2.04 |
||
|
33563A
|
33563A
90501-07103 Spring, Compression (For Shift Lock Release Button)[10.2000 - 10.2002] GX11#,JZX11#..SED..ATM |
90501-07103 |
US $2.04 |
||
|
33564
|
33564
33564-22070 Link, Shift Lock Release, No.1[10.2000 - 10.2002] GX11#,JZX11#..SED..ATM |
33564-22070 |
US $5.68 |
||
|
33675A
|
33675A
33726-35010 Pin, W/hole (For Transmission Control Rod)[10.2000 - 04.2004] GX110..GD;JZX110..SED..ATM; GX115,JZX115;GX110,JZX110..WG |
33726-35010 |
US $3.04 |
||
|
33702B
|
33702B
33702-22120 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[10.2000 - 10.2002] GX115,JZX115..SED |
33702-22120 |
US $28.68 |
||
|
35569C
|
35569C
90480-17023 Grommet (For Transmission Control Rod)[10.2000 - 06.2007] GX115,JZX115 |
90480-17023 |
from US $1.27 |
||
|
35569G
|
35569G
90389-08005 Bushing(For Gear Selecting Rod)[10.2000 - 06.2007] GX115,JZX115 |
90389-08005 |
from US $1.76 |
||
|
35906
|
35906
35906-22090 Wire Sub-Assy, Indicator Lamp[10.2000 - 10.2002] GX11#,JZX11#..SED..ATM |
35906-22090 |
US $15.58 |
||
|
35906A
|
35906A
90980-11967 Housing, Connector Male (For Indicator Lamp Wire)[10.2000 - 10.2002] GX11#,JZX11#..SED..ATM |
90980-11967 |
US $3.52 |
||
|
35952
|
35952
35952-22020 Lens, Position Indicator[10.2000 - 10.2002] GX11#,JZX11#..SED..4FC |
35952-22020 |
US $37.42 |
||
|
35971A
|
35971A
35971-22150 Housing, Position Indicator, Upper[10.2000 - 10.2002] GX11#,JZX11#..SED..4FC |
35971-22150 |
US $20.97 |
||
| replacement | |||||
|
35971A
|
35971A
35971-22210 Housing, Position Indicator, Upper[10.2000 - 10.2002] GX11#,JZX11#..SED..4FC |
35971-22210 |
US $21.40 |
||
|
35971B
|
35971B
33593-50020 Clip, Bezel[10.2000 - 10.2002] GX11#,JZX11#..SED..ATM |
33593-50020 |
US $2.62 |
||
|
35972
|
35972
35972-22190 Cover, Position Indicator Housing[10.2000 - 10.2002] GX11#,JZX11#..SED..ATM |
35972-22190 |
US $38.73 |
||
|
35975
|
35975
35975-22170 Cover, Slide (For Position Indicator)[10.2000 - 10.2002] GX11#,JZX11#..SED..ATM |
35975-22170 |
US $10.48 |
||
| replacement | |||||
|
35975
|
35975
35975-30270 Cover, Slide (For Position Indicator)[10.2000 - 10.2002] GX11#,JZX11#..SED..ATM |
35975-30270 |
from US $11.84 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.11 |
||
|
9016840121
|
9016840121
90168-40121 New Genuine Part |
90168-40121 |
US $1.24 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.40 |
||
|
9046814011
|
9046814011
90468-14011 Clip, No.2(For Parking Brake) |
90468-14011 |
US $0.96 |
||
