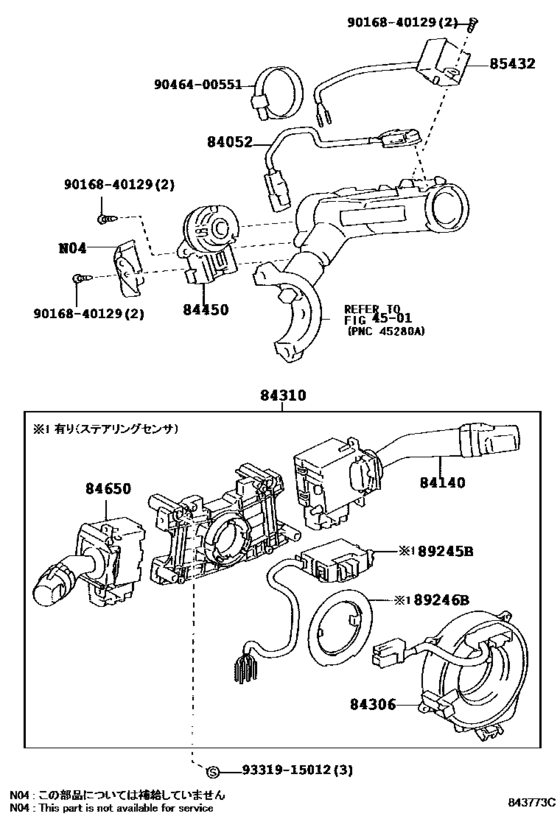

Switch & Relay & Computer ([10.2000 - ] ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ (0010- )) Diagram Toyota MARK 2
- Year
- 2000 - 2004
- Sales region
- Japan
- Frame
- JZX115
- grade
- GDG
- body
- SED
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 10.2000
- To
- 11.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-22050 Switch Assy, Un-Lock Warning[10.2000 - 06.2007] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
84052-22050 |
from US $14.26 |
||
|
84140
|
84140
84140-32210 Switch Assy, Headlamp Dimmer[10.2000 - 01.2005] GX110,JZX115..GD,GDG,IR;GX115,JZX110..GD,GDG,GDGT,GDS,GDV,IRS,IRV |
84140-32210 |
US $128.13 |
||
|
84306
|
84306
84306-33070 Cable Sub-Assy, Spiral[10.2000 - 10.2002] JZX110..GDG;GX115,JZX115..SED; JZX110..GD,GDGT ｱﾘ(VSC) |
84306-33070 |
US $270.82 |
||
|
84310
|
84310
84310-2A850 Switch Assy, Turn Signal[10.2000 - 10.2002] JZX110..GDG;GX115,JZX115..SED; JZX110..GD,GDGT ｱﾘ(VSC) |
84310-2A850 |
US $583.86 |
||
|
84310
|
84310
84310-2A860 Switch Assy, Turn Signal[10.2000 - 10.2002] JZX110..GDG;GX115,JZX115..SED ｱﾘ(ﾘﾔﾜｲﾊﾟ); JZX110..GD,GDGT ｱﾘ(VSC & ﾘﾔﾜｲﾊﾟ) |
84310-2A860 |
US $607.15 |
||
|
84450
|
84450
84450-52010 Switch Assy, Ignition Or Starter[10.2000 - 06.2007] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
84450-52010 |
from US $76.96 |
||
|
84650
|
84650
84652-22880 Switch Assy, Windshield Wiper[10.2000 - 10.2002] GX11#,JZX11#..SED |
84652-22880 |
US $152.88 |
||
|
84650
|
84650
84652-22890 Switch Assy, Windshield Wiper[10.2000 - 10.2002] GX11#,JZX11#..GD,GDG,GDGT ｱﾘ(ﾘﾔﾜｲﾊﾟ); JZX110..GDS,GDV ｱﾘ(ﾘﾔﾜｲﾊﾟ---INTﾂｷ) |
84652-22890 |
US $174.72 |
||
|
85432
|
85432
85432-14040 Solenoid, Key Inter Lock[10.2000 - 06.2007] JZX110..ATM;GX11#,JZX115..GD,GDG,IR,IRS |
85432-14040 |
US $39.53 |
||
|
89245B
|
89245B
89245-22030 Sensor, Steering[10.2000 - 06.2007] GX115,JZX11#..GD,GDG,GDGT,IR,IRS,IRV |
89245-22030 |
US $291.20 |
||
|
89246B
|
89246B
89246-22020 Disc, Sensor Steering[10.2000 - 06.2007] GX115,JZX11#..GD,GDG,GDGT,IR,IRS,IRV |
89246-22020 |
from US $81.92 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
