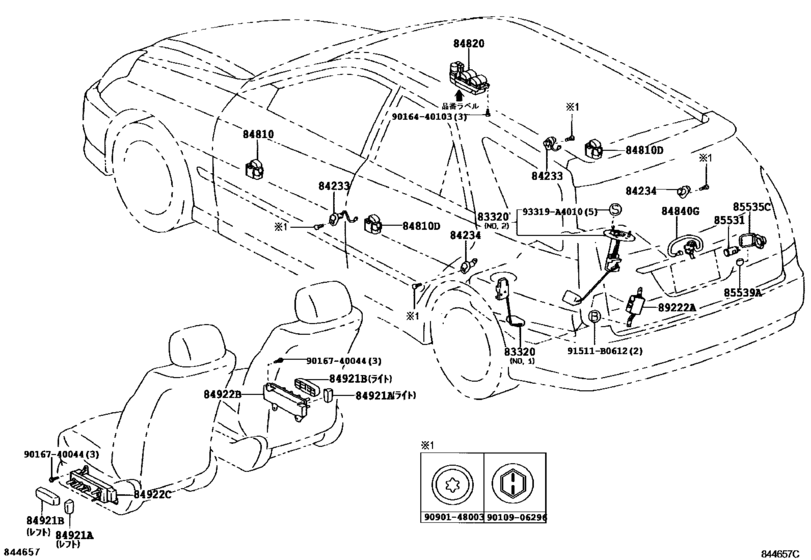

Switch & Relay & Computer ([01.2002 - ] ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ,ｼ-ﾄ & ﾗﾂｹﾞ-ｼﾞ (0201- )WG) Diagram Toyota MARK 2
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- JZX115
- grade
- IRS
- body
- WG
- ENGINE
- 1JZGE
- TRANSMISSION
- ATM
- Model
- MARK 2 Wagon Blit
- From
- 01.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2 Wagon Blit
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-51010 Gage Assy, Fuel Sender[10.2000 - 06.2007] JZX110;GX11#,JZX115..GD,GDG,IR,IRS ＮＯ．１ |
83320-51010 |
from US $62.58 |
||
|
83320
|
83320
83320-59095 Gage Assy, Fuel Sender[10.2000 - 06.2007] JZX110;GX11#,JZX115..GD,GDG,IR,IRS ＮＯ．２ |
83320-59095 |
US $65.82 |
||
|
84233
|
84233
84231-22130 Switch Assy, Courtesy Lamp (For Front Door)[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
84231-22130 |
US $14.41 |
||
| replacement | |||||
|
84233
|
84233
84231-30280 Switch Assy, Courtesy Lamp (For Rear Door)[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
84231-30280 |
US $16.26 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[10.2000 -] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
84231-53010 |
from US $10.56 |
||
|
84810
|
84810
84030-22010 Switch Assy, Power Window Regulator[10.2000 - 05.2003] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
84030-22010 |
US $47.90 |
||
|
84810
|
84810
84030-22050 Switch Assy, Power Window Regulator[05.2003 -] GX11#,JZX11#..WG |
84030-22050 |
US $179.09 |
||
|
84810D
|
84810D
84030-22010 Switch Assy, Power Window Regulator[10.2000 - 05.2003] JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
84030-22010 |
US $47.90 |
||
|
84810D
|
84810D
84030-22050 Switch Assy, Power Window Regulator[05.2003 -] GX11#,JZX11#..WG |
84030-22050 |
US $179.09 |
||
|
84820
|
84820
84040-22060 Master Switch Assy, Power Window Regulator[01.2002 - 05.2003] GX11#,JZX11#..WG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84040-22060 |
84040-22060 |
US $343.62 |
||
|
84820
|
84820
84040-22100 Master Switch Assy, Power Window Regulator[05.2003 -] GX11#,JZX11#..WG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84040-22100 |
84040-22100 |
US $366.91 |
||
|
84840G
|
84840G
84840-22020
Switch Assy, Back Door Opener
[01.2002 -] GX11#,JZX11#..WG |
84840-22020 |
— | ||
|
84921A
|
84921A
84921-30120-B0 Knob, Power Seat Switch (For Reclining)[10.2000 - 06.2007] GX11#,JZX11#..GD,GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,右側 |
84921-30120-B0 |
US $6.84 |
||
| replacement | |||||
|
84921A
|
84921A
84921-30120-C0 Knob, Power Seat Switch (For Reclining)[10.2000 - 06.2007] GX11#,JZX11#..GD,GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,右側 |
84921-30120-C0 |
US $5.53 |
||
|
84921A
|
84921A
84921-30120-C0 Knob, Power Seat Switch (For Reclining)[10.2000 - 06.2007] JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,右側 |
84921-30120-C0 |
US $5.53 |
||
|
84921A
|
84921A
84921-30130-B0 Knob, Power Seat Switch (For Reclining)[10.2000 - 06.2007] JZX11#..GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,左側 |
84921-30130-B0 |
US $6.99 |
||
| replacement | |||||
|
84921A
|
84921A
84921-30130-C0 Knob, Power Seat Switch (For Reclining)[10.2000 - 06.2007] JZX11#..GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,左側 |
84921-30130-C0 |
US $5.53 |
||
|
84921A
|
84921A
84921-30130-C0 Knob, Power Seat Switch (For Reclining)[10.2000 - 06.2007] JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,左側 |
84921-30130-C0 |
US $5.53 |
||
|
84921B
|
84921B
84921-24030-B3 Knob, Power Seat Switch (For Slide & Vertical)[10.2000 - 06.2007] GX11#,JZX11#..GD,GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,右側 |
84921-24030-B3 |
US $28.39 |
||
| replacement | |||||
|
84921B
|
84921B
84921-24030-C0
Knob, Power Seat Switch
[10.2000 - 06.2007] GX11#,JZX11#..GD,GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,右側 |
84921-24030-C0 |
— | ||
|
84921B
|
84921B
84921-24030-C0
Knob, Power Seat Switch
[10.2000 - 06.2007] JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,右側 |
84921-24030-C0 |
— | ||
|
84921B
|
84921B
84921-24040-B3 Knob, Power Seat Switch (For Slide & Vertical)[10.2000 - 06.2007] JZX11#..GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,左側 |
84921-24040-B3 |
US $28.39 |
||
| replacement | |||||
|
84921B
|
84921B
84921-24040-C0 Knob, Power Seat Switch[10.2000 - 06.2007] JZX11#..GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,左側 |
84921-24040-C0 |
US $28.39 |
||
|
84921B
|
84921B
84921-24040-C0 Knob, Power Seat Switch[10.2000 - 06.2007] JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,左側 |
84921-24040-C0 |
US $28.39 |
||
|
84922B
|
84922B
84922-30210 Switch, Front Power Seat, Rh[10.2000 - 06.2007] JZX110;GX11#,JZX115..GD,GDG,IRS |
84922-30210 |
US $174.72 |
||
|
84922C
|
84922C
84922-30290 Switch, Front Power Seat, Lh[10.2000 - 06.2007] JZX11#..GDG,GDGT,GDS,GDV,IRS,IRV |
84922-30290 |
US $113.57 |
||
|
85531
|
85531
85531-48010 Socket, Power Outlet[01.2002 -] GX11#,JZX11#..WG |
85531-48010 |
US $33.20 |
||
|
85535C
|
85535C
85535-31010-B1 Cover, Power Outlet Socket, Rear[01.2002 - 06.2007] GX11#,JZX11#..WG MD.CHARCOAL,TRIM1# |
85535-31010-B1 |
US $9.90 |
||
| replacement | |||||
|
85535C
|
85535C
85535-53010-C0 Cover, Power Outlet Socket, RearPOWER OUTLET SOCKET, REAR [01.2002 - 06.2007] GX11#,JZX11#..WG MD.CHARCOAL,TRIM1# |
85535-53010-C0 |
US $8.30 |
||
|
85535C
|
85535C
85535-31010-C0 Cover, Power Outlet Socket, Rear[01.2002 - 06.2007] GX11#,JZX11#..WG BLACK,TRIM2# |
85535-31010-C0 |
US $9.90 |
||
| replacement | |||||
|
85535C
|
85535C
85535-53010-C0 Cover, Power Outlet Socket, RearPOWER OUTLET SOCKET, REAR [01.2002 - 06.2007] GX11#,JZX11#..WG BLACK,TRIM2# |
85535-53010-C0 |
US $8.30 |
||
|
85539A
|
85539A
85539-60010 Label, Power Outlet Notice[01.2002 -] GX11#,JZX11#..WG |
85539-60010 |
US $1.14 |
||
|
89222A
|
89222A
89222-22010 Computer, Multiplex Network Door[01.2002 -] GX11#,JZX11#..WG |
89222-22010 |
US $301.39 |
||
|
91511B0612
|
91511B0612
91511-B0612 BOLT FLANGE |
91511-B0612 |
from US $1.12 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.70 |
||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.44 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.72 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
