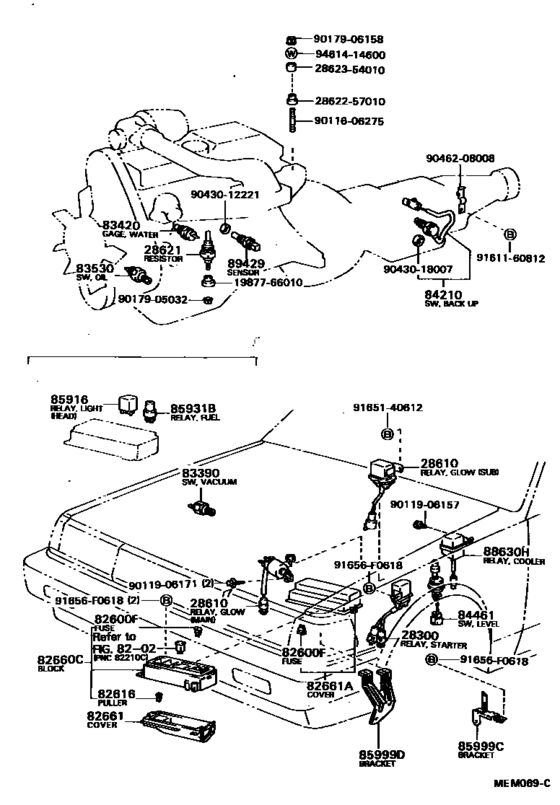

Switch & Relay & Computer ([12.1988 - ] ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐﾂｼﾖﾝ & ｴﾝｼﾞﾝﾙ-ﾑ (8812- )LX76) Diagram Toyota MARK 2
- Year
- 1988 - 1994
- Sales region
- Japan
- Frame
- LX76
- grade
- DX
- body
- V
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 12.1988
- To
- 09.1994
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-54100 Relay Assy, Starter[08.1990 - 02.1993] 2L..LX76 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
28300-54100 |
US $116.48 |
||
|
28300
|
28300
28300-54110 Relay Assy, Starter[02.1993 - 09.1994] 2L..LX76 |
28300-54110 |
from US $63.53 |
||
|
28300
|
28300
28300-64030 Relay Assy, Starter[12.1988 - 08.1990] 2L..LX76 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
28300-64030 |
US $117.94 |
||
|
28610
|
28610
28610-54290 Relay Assy, Glow Plug[12.1988 - 08.1990] 2L..LX76 MAIN |
28610-54290 |
US $113.57 |
||
|
28610
|
28610
28610-64080
Relay Assy, Glow Plug
[12.1988 - 08.1990] 2L..LX76 SUB |
28610-64080 |
— | ||
|
28610
|
28610
28610-64130 Relay Assy, Glow Plug[02.1993 - 09.1994] 2L..LX76 |
28610-64130 |
US $88.82 |
||
|
28621
|
28621
28621-54080
Resistor, Glow Plug
[12.1988 - 09.1994] 2L..LX76 |
28621-54080 |
— | ||
|
82600F
|
82600F
90982-09002 Fusible Link[10.1988 - 08.1990] GX70,LX76,YX76 １０Ａ,COWL SIDE |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[10.1988 - 08.1990] GX70,LX76,YX76 １５Ａ,E/G ROOM J/B |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[10.1988 - 08.1990] YX76 ２０Ａ,E/G ROOM J/B; GX70,LX76,YX76 ２０Ａ,E/G ROOM RELAY BLOCK |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[02.1993 - 04.1997] GX70,LX76,YX78 ７．５Ａ,E/G ROOM RELAY BLOCK |
90982-09005 |
from US $0.99 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[10.1988 - 04.1997] GX70,LX76,YX7# |
82616-12010 |
from US $3.04 |
||
|
82660C
|
82660C
82660-23020 Block Assy, Relay[02.1993 - 09.1994] LX76 |
82660-23020 |
US $366.91 |
||
|
82660C
|
82660C
82660-91602 Block Assy, Relay[12.1988 - 02.1993] LX76 |
82660-91602 |
US $215.49 |
||
|
82661
|
82661
82661-22121 Cover, Relay Block, No.1[10.1988 - 04.1997] GX70,LX76 |
82661-22121 |
US $21.55 |
||
|
82661A
|
82661A
82661-23040 Cover, Relay Block, No.2[02.1993 - 09.1994] LX76 |
82661-23040 |
US $29.41 |
||
|
82661A
|
82661A
82661-91603 Cover, Relay Block, No.2[12.1988 - 02.1993] LX76 |
82661-91603 |
US $56.35 |
||
|
83390
|
83390
83390-30020
Switch Assy, Vacuum Warning
[12.1988 - 09.1994] LX76 |
83390-30020 |
— | ||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[02.1993 - 04.1997] GX70,LX76,YX78 |
83420-16040 |
from US $30.71 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[10.1988 - 02.1993] GX70,LX76,YX76 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[12.1988 - 09.1994] LX76 |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[12.1988 - 09.1994] LX76 |
83530-60030 |
from US $26.54 |
||
|
84210
|
84210
84210-30060 Switch Assy, Back-Up Lamp[10.1988 - 04.1997] GX70,LX76,YX7#..5F |
84210-30060 |
from US $38.08 |
||
|
84461
|
84461
84461-30080 Switch, Level Warning[02.1993 - 09.1994] LX76 |
84461-30080 |
US $77.17 |
||
|
84461
|
84461
84461-35030 Switch, Level Warning[12.1988 - 02.1993] LX76 |
84461-35030 |
US $38.09 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[10.1988 - 08.1996] GX70,LX76,YX7# MARUKO,TAIL LAMP |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[10.1988 - 08.1996] GX70,LX76,YX7# MARUKO,TAIL LAMP |
90987-02004 |
from US $28.20 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[10.1988 - 08.1996] GX70,LX76,YX7# *ND,TAIL LAMP |
90987-02004 |
from US $28.20 |
||
|
85916
|
85916
90987-02006 Relay[10.1988 - 08.1990] GX70,LX76,YX76 HEADLAMP |
90987-02006 |
from US $27.65 |
||
|
85931B
|
85931B
90987-02004 Relay Assy, Starter[08.1990 - 09.1994] LX76 |
90987-02004 |
from US $28.20 |
||
|
85999C
|
85999C
85999-22230 Bracket, Relay, No.3[12.1988 - 09.1994] LX76 |
85999-22230 |
US $15.58 |
||
|
85999D
|
85999D
85999-22300 Bracket, Relay, No.3[12.1988 - 09.1994] LX76 |
85999-22300 |
US $6.26 |
||
|
88630H
|
88630H
88630-14020
Relay Assy, Cooler
[08.1990 - 02.1993] LX76 |
88630-14020 |
— | ||
|
89429
|
89429
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1990 - 09.1994] LX76 |
89422-20010 |
from US $36.78 |
||
|
89429
|
89429
89422-30020
Sensor, Water Temperature (For E.f.i.)
[12.1988 - 08.1990] LX76 |
89422-30020 |
— | ||
| replacement | |||||
|
89429
|
89429
89422-12010 Sensor, Water Temperature (For E.f.i.)[12.1988 - 08.1990] LX76 |
89422-12010 |
from US $61.10 |
||
|
91656F0618
|
91656F0618
91656-F0618 New Genuine Part |
91656-F0618 |
US $1.60 |
||
| replacement | |||||
|
91656F0618
|
91656F0618
90119-06482 New Genuine Part |
90119-06482 |
US $1.60 |
||
|
1987766010
|
1987766010
19877-66010 Insulator Sub-Assy, Glow Plug, No.1 |
19877-66010 |
US $5.10 |
||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9011906157
|
9011906157
90119-06157 Bolt |
90119-06157 |
US $2.33 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.08 |
||
|
9017905032
|
9017905032
90179-05032
NUT
|
90179-05032 |
— | ||
| replacement | |||||
|
9017905032
|
9017905032
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9461414600
|
9461414600
94614-14600
New Genuine Part
|
94614-14600 |
— | ||
