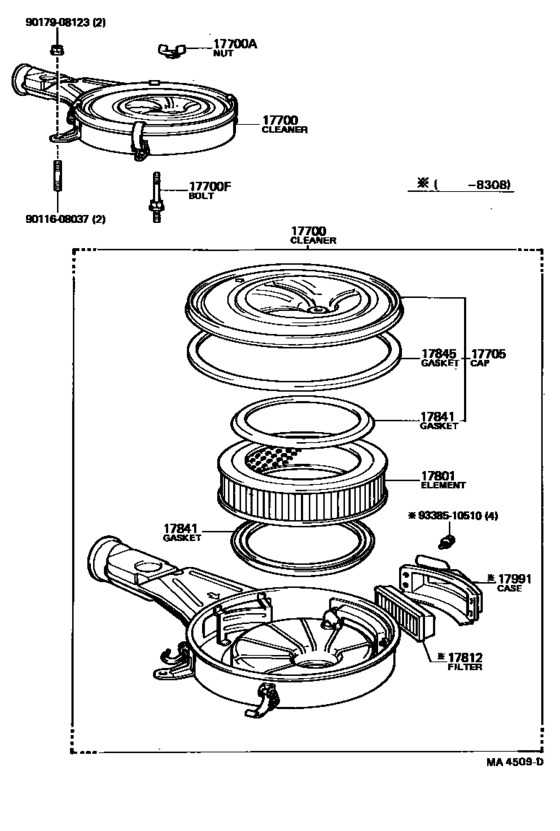

Air Cleaner ([11.1980 - ] (8011- )MU) Diagram Toyota MARK 2
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- MX60
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 11.1980
- Engine
- MPU
- To
- 07.1984
- Gear Shift Type
- 4F
- Vehicle Model
- MARK 2
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-41550
Cleaner Assy, Air
[11.1980 - 08.1983] MU..MX60 |
17700-41550 |
— | ||
|
17700
|
17700
17700-41620 Cleaner Assy, Air[08.1983 - 07.1984] MU..MX60 |
17700-41620 |
US $254.80 |
||
| replacement | |||||
|
17700
|
17700
17700-41610 Cleaner Assy, Air[08.1983 - 07.1984] MU..MX60 |
17700-41610 |
US $256.26 |
||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[09.1980 - 07.1984] MU..MX60; 21RU..RX60; 13T#..TX6# |
90175-06003 |
from US $1.23 |
||
|
17700F
|
17700F
90116-06309 Bolt, Stud(For Air Cleaner Setting)[11.1980 - 07.1984] MU..MX60 |
90116-06309 |
US $3.35 |
||
|
17705
|
17705
17705-41130
Cap Sub-Assy, Air Cleaner
[11.1980 - 08.1983] MU..MX60 |
17705-41130 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-41200
Cap Sub-Assy, Air Cleaner
[11.1980 - 08.1983] MU..MX60 |
17705-41200 |
— | ||
|
17705
|
17705
17705-41200
Cap Sub-Assy, Air Cleaner
[08.1983 - 07.1984] MU..MX60 |
17705-41200 |
— | ||
|
17801
|
17801
17801-41060 Element Sub-Assy, Air Cleaner Filter[11.1980 - 07.1984] MU..MX60 |
17801-41060 |
US $30.58 |
||
|
17812
|
17812
17812-31010
Filter, Air Cleaner, No.2
[11.1980 - 08.1983] MU..MX60; 2YPU..SX60 |
17812-31010 |
— | ||
|
17841
|
17841
17841-41050
Gasket, Filter Element
[09.1980 - 07.1984] MU..MX60; 21RU..RX60 |
17841-41050 |
— | ||
|
17845
|
17845
17845-41040
Gasket, Air Cleaner Cap
[11.1980 - 10.1982] MU..MX60 |
17845-41040 |
— | ||
| replacement | |||||
|
17845
|
17845
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[11.1980 - 10.1982] MU..MX60 |
17845-61011 |
— | ||
|
17845
|
17845
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[10.1982 - 07.1984] MU..MX60 *G,L=1172 |
17845-61011 |
— | ||
|
17991
|
17991
17804-41020
Case, Air Suction Filter
[09.1980 - 08.1983] MU..MX60 |
17804-41020 |
— | ||
|
9011608037
|
9011608037
90116-08037 Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
90116-08037 |
US $2.62 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9338510510
|
9338510510
93385-10510
New Genuine Part
|
93385-10510 |
— | ||
