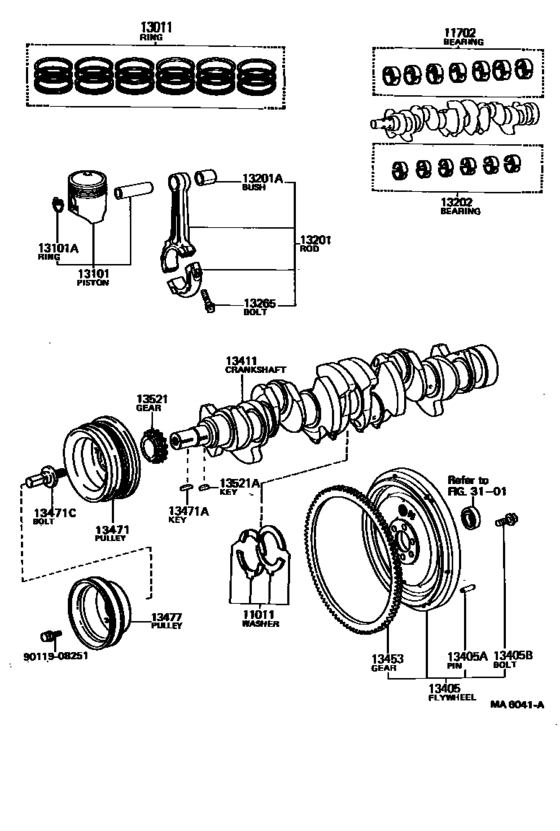

Crankshaft & Piston ([11.1980 - ] (8011- )MU ; (8110- )MTEU) Diagram Toyota MARK 2
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- MX60
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 11.1980
- Engine
- MPU
- To
- 07.1984
- Gear Shift Type
- 4F
- Vehicle Model
- MARK 2
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-43010 Washer Set, Crankshaft Thrust[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# ＳＴＤ,STD |
11011-43010 |
US $26.56 |
||
|
11011
|
11011
11012-43010
Washer Set, Crankshaft Thrust
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-43010 |
— | ||
|
11011
|
11011
11013-43010
Washer Set, Crankshaft Thrust
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｏ／Ｓ ０．２５０,O/S 0.250 |
11013-43010 |
— | ||
|
11702
|
11702
11702-45011
Bearing Set, Crankshaft
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# ＳＴＤ,STD |
11702-45011 |
— | ||
|
11702
|
11702
11703-45011 Bearing Set, Crankshaft[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．０５,U/S 0.05 |
11703-45011 |
US $301.39 |
||
|
11702
|
11702
11704-45011
Bearing Set, Crankshaft
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-45011 |
— | ||
|
11702
|
11702
11705-45011
Bearing Set, Crankshaft
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．５０,U/S 0.50 |
11705-45011 |
— | ||
|
13011
|
13011
13011-41015 Ring Set, Piston[11.1980 - 07.1984] MTEU,MU..MX60,61 ＳＴＤ,STD |
13011-41015 |
US $248.98 |
||
|
13011
|
13011
13013-41015
Ring Set, Piston
[11.1980 - 07.1984] MTEU,MU..MX60,61 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-41015 |
— | ||
|
13011
|
13011
13014-41015 Ring Set, Piston[11.1980 - 07.1984] MTEU,MU..MX60,61 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-41015 |
US $248.98 |
||
|
13011
|
13011
13015-41015 Ring Set, Piston[11.1980 - 07.1984] MTEU,MU..MX60,61 Ｏ／Ｓ １．００,O/S 1.00 |
13015-41015 |
US $248.98 |
||
|
13101
|
13101
13101-41040 Piston Sub-Assy, W/pinW/PIN [11.1980 - 08.1983] MU..MX60 STD |
13101-41040 |
US $100.46 |
||
|
13101
|
13101
13101-41070 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MU..MX60 STD |
13101-41070 |
US $91.73 |
||
| replacement | |||||
|
13101
|
13101
13101-41071-02 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MU..MX60 STD |
13101-41071-02 |
US $90.27 |
||
|
13101
|
13101
13103-41040 Piston Sub-Assy, W/pinW/PIN [11.1980 - 08.1983] MU..MX60 O/S 0.50 |
13103-41040 |
US $109.20 |
||
|
13101
|
13101
13103-41070 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MU..MX60 O/S 0.50 |
13103-41070 |
US $91.73 |
||
| replacement | |||||
|
13101
|
13101
13103-41071 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MU..MX60 O/S 0.50 |
13103-41071 |
US $90.27 |
||
|
13101
|
13101
13104-41040 Piston Sub-Assy, W/pinW/PIN [11.1980 - 08.1983] MU..MX60 O/S 0.75 |
13104-41040 |
US $109.20 |
||
|
13101
|
13101
13104-41070 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MU..MX60 O/S 0.75 |
13104-41070 |
US $91.73 |
||
| replacement | |||||
|
13101
|
13101
13104-41071 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MU..MX60 O/S 0.75 |
13104-41071 |
US $90.27 |
||
|
13101
|
13101
13105-41040 Piston Sub-Assy, W/pinW/PIN [11.1980 - 08.1983] MU..MX60 O/S 1.00 |
13105-41040 |
US $109.20 |
||
|
13101
|
13101
13105-41070 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MU..MX60 O/S 1.00 |
13105-41070 |
US $91.73 |
||
| replacement | |||||
|
13101
|
13101
13105-41071 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MU..MX60 O/S 1.00 |
13105-41071 |
US $90.27 |
||
|
13101A
|
13101A
90521-25052 Ring, Hole Snap(For Piston Pin)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90521-25052 |
US $2.48 |
||
|
13201
|
13201
13201-41011 Rod Sub-Assy, Connecting[11.1980 - 07.1984] MTEU,MU..MX60,61 |
13201-41011 |
US $179.09 |
||
|
13201A
|
13201A
90999-73066 Bush(For Connecting Rod Small End)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90999-73066 |
US $7.16 |
||
|
13202
|
13202
13202-45011
Bearing, Connecting Rod
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# ＳＴＤ,STD |
13202-45011 |
— | ||
|
13202
|
13202
13203-45011 Bearing Set, Connecting Rod[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．０５,U/S 0.05 |
13203-45011 |
US $160.16 |
||
|
13202
|
13202
13204-45011
Bearing Set, Connecting Rod
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-45011 |
— | ||
|
13202
|
13202
13205-45011
Bearing Set, Connecting Rod
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．５０,U/S 0.50 |
13205-45011 |
— | ||
|
13265
|
13265
90910-02044 Bolt, Connecting Rod[11.1980 - 07.1984] MTEU,MU..MX60,61 |
90910-02044 |
US $3.35 |
||
|
13405
|
13405
13405-49116 Flywheel Sub-Assy[11.1980 - 07.1984] MU..MX60..4F |
13405-49116 |
US $416.42 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[09.1980 - 07.1984] L..LX60,67..5F 長さ＝２３，外径＝８; 21RU,18RGEU..RX6#..MTM 長さ＝２３，外径＝８; 1SU,2YPU..SX60..5F 長さ＝２３，外径＝８; 13T#..TX6#..4F 長さ＝２３，外径＝８; 1G#..GX6#..MTM 長さ＝２３，外径＝８; MU..MX60..4F 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[09.1980 - 07.1984] 2YPU..SX60 *10-1.25PX26-18; 13T#..TX6#..4F *10-1.25PX26-18; 1G#..GX6#..MTM *10-1.25PX26-18; MU..MX60..4F *10-1.25PX26-18 |
90105-10042 |
from US $1.31 |
||
|
13411
|
13411
13411-41015 Crankshaft[11.1980 - 07.1984] MTEU,MU..MX60,61 |
13411-41015 |
US $1,587.04 |
||
| replacements | |||||
|
13411
|
13411
13411-41016 Crankshaft[11.1980 - 07.1984] MTEU,MU..MX60,61 |
13411-41016 |
US $1,601.60 |
||
|
13411
|
13411
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[11.1980 - 07.1984] MTEU,MU..MX60,61 |
90280-05003 |
US $2.62 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[09.1980 - 07.1984] 21RU,18RGEU..RX6#..MTM; 1SU,2YPU..SX60..5F; 13T#..TX6#..4F; 1G#..GX6#..MTM; MU..MX60..4F |
13453-20010 |
US $67.79 |
||
|
13471
|
13471
13407-41021
Pulley, Crankshaft
[09.1980 - 08.1983] 5MEU,MTEU,MU..MX6# |
13407-41021 |
— | ||
|
13471
|
13471
13407-41030
Pulley, Crankshaft
[08.1983 - 07.1984] MTEU,MU..MX6# |
13407-41030 |
— | ||
|
13471A
|
13471A
90280-05001 Key, Crankshaft(For Crankshaft Pulley Set)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90280-05001 |
US $3.32 |
||
|
13471C
|
13471C
90105-16002
Bolt(For Crankshaft Pulley Set)
[09.1980 - 03.1982] 5MEU,MTEU,MU..MX6# *16-1.5PX26-21 |
90105-16002 |
— | ||
| replacement | |||||
|
13471C
|
13471C
90105-16011
Bolt(For Crankshaft Pulley Set)
[09.1980 - 03.1982] 5MEU,MTEU,MU..MX6# *16-1.5PX26-21 |
90105-16011 |
— | ||
|
13471C
|
13471C
90105-16011
Bolt(For Crankshaft Pulley Set)
[03.1982 - 07.1984] 5MEU,MTEU,MU..MX6# |
90105-16011 |
— | ||
|
13521
|
13521
13521-41011 Gear Or Sprocket, Crankshaft Timing[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# N=20 |
13521-41011 |
US $50.38 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6#; 21RU,18RGEU..RX6#; 2YPU..SX60; 13T#..TX6# |
90280-05010 |
US $4.16 |
||
|
9011908251
|
9011908251
90119-08251 BOLT |
90119-08251 |
from US $1.25 |
||
