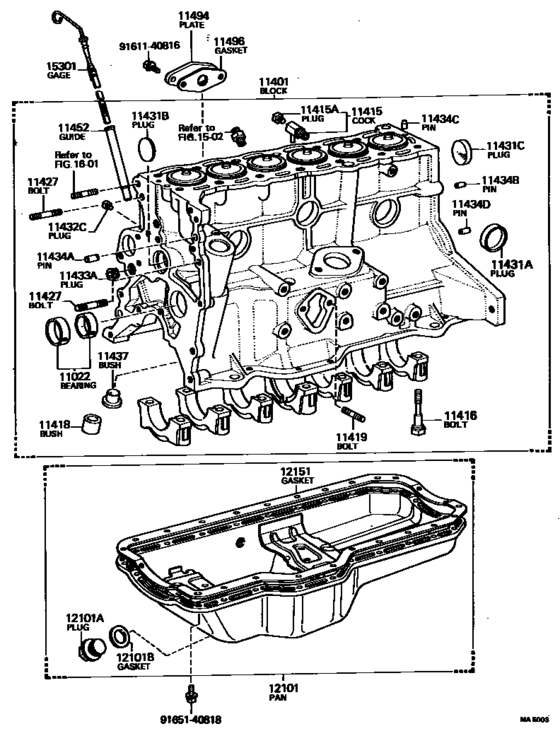

Cylinder Block ([11.1980 - 08.1983] (8011-8308)MU) Diagram Toyota MARK 2
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- MX60
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 11.1980
- Engine
- MPU
- To
- 07.1984
- Gear Shift Type
- 4F
- Vehicle Model
- MARK 2
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11022
|
11022
11022-41010
Bearing Set, Pump Drive Shaft
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
11022-41010 |
— | ||
|
11401
|
11401
11401-49255
Block Sub-Assy, Cylinder
[11.1980 - 08.1983] MU..MX60 |
11401-49255 |
— | ||
| replacements | |||||
|
11401
|
11401
11071-43010-01
Bearing, Crankshaft
[11.1980 - 08.1983] MU..MX60 |
11071-43010-01 |
— | ||
|
11401
|
11401
15473-42010 Gasket, Turbo Oil Outlet, No.2[11.1980 - 08.1983] MU..MX60 |
15473-42010 |
US $8 |
||
|
11401
|
11401
11494-41010 Plate, Oil Hole Cover[11.1980 - 08.1983] MU..MX60 |
11494-41010 |
US $7.86 |
||
|
11401
|
11401
90179-08012 NUT[11.1980 - 08.1983] MU..MX60 |
90179-08012 |
from US $2.03 |
||
|
11401
|
11401
90341-12011 Plug, W/head Straight Screw, No.1(For Cylinder Block)[11.1980 - 08.1983] MU..MX60 |
90341-12011 |
US $3.06 |
||
|
11401
|
11401
90345-51006 Plug, W/head Taper Screw, No.2[11.1980 - 08.1983] MU..MX60 |
90345-51006 |
from US $0.96 |
||
|
11401
|
11401
90430-12010 Gasket(For Water Hole)[11.1980 - 08.1983] MU..MX60 |
90430-12010 |
US $3.20 |
||
|
11401
|
11401
92122-40818 Bolt, Stud(For Oil Pan)[11.1980 - 08.1983] MU..MX60 |
92122-40818 |
US $2.18 |
||
|
11401
|
11401
90179-10132 Nut[11.1980 - 08.1983] MU..MX60 |
90179-10132 |
from US $0.94 |
||
|
11401
|
11401
11071-43010-02
Bearing, Crankshaft
[11.1980 - 08.1983] MU..MX60 |
11071-43010-02 |
— | ||
|
11401
|
11401
11071-43010-03
Bearing, Crankshaft
[11.1980 - 08.1983] MU..MX60 |
11071-43010-03 |
— | ||
|
11401
|
11401
11071-43010-04
Bearing, Crankshaft
[11.1980 - 08.1983] MU..MX60 |
11071-43010-04 |
— | ||
|
11401
|
11401
11071-43010-05
Bearing, Crankshaft
[11.1980 - 08.1983] MU..MX60 |
11071-43010-05 |
— | ||
|
11401
|
11401
11401-49525
Block Sub-assy, Cylinder
[11.1980 - 08.1983] MU..MX60 |
11401-49525 |
— | ||
|
11401
|
11401
90116-10097 New Genuine Part[11.1980 - 08.1983] MU..MX60 |
90116-10097 |
US $2.33 |
||
|
11401
|
11401
11401-49355 Block Sub-Assy, Cylinder[08.1983 - 04.1984] MU..MX60 |
11401-49355 |
US $3,508.96 |
||
| replacements | |||||
|
11401
|
11401
11071-43010-01
Bearing, Crankshaft
[08.1983 - 04.1984] MU..MX60 |
11071-43010-01 |
— | ||
|
11401
|
11401
15473-42010 Gasket, Turbo Oil Outlet, No.2[08.1983 - 04.1984] MU..MX60 |
15473-42010 |
US $8 |
||
|
11401
|
11401
11494-41010 Plate, Oil Hole Cover[08.1983 - 04.1984] MU..MX60 |
11494-41010 |
US $7.86 |
||
|
11401
|
11401
90179-08012 NUT[08.1983 - 04.1984] MU..MX60 |
90179-08012 |
from US $2.03 |
||
|
11401
|
11401
90341-12011 Plug, W/head Straight Screw, No.1(For Cylinder Block)[08.1983 - 04.1984] MU..MX60 |
90341-12011 |
US $3.06 |
||
|
11401
|
11401
90345-51006 Plug, W/head Taper Screw, No.2[08.1983 - 04.1984] MU..MX60 |
90345-51006 |
from US $0.96 |
||
|
11401
|
11401
90430-12010 Gasket(For Water Hole)[08.1983 - 04.1984] MU..MX60 |
90430-12010 |
US $3.20 |
||
|
11401
|
11401
92122-40818 Bolt, Stud(For Oil Pan)[08.1983 - 04.1984] MU..MX60 |
92122-40818 |
US $2.18 |
||
|
11401
|
11401
90179-10132 Nut[08.1983 - 04.1984] MU..MX60 |
90179-10132 |
from US $0.94 |
||
|
11401
|
11401
11071-43010-02
Bearing, Crankshaft
[08.1983 - 04.1984] MU..MX60 |
11071-43010-02 |
— | ||
|
11401
|
11401
11071-43010-03
Bearing, Crankshaft
[08.1983 - 04.1984] MU..MX60 |
11071-43010-03 |
— | ||
|
11401
|
11401
11071-43010-04
Bearing, Crankshaft
[08.1983 - 04.1984] MU..MX60 |
11071-43010-04 |
— | ||
|
11401
|
11401
11071-43010-05
Bearing, Crankshaft
[08.1983 - 04.1984] MU..MX60 |
11071-43010-05 |
— | ||
|
11401
|
11401
11401-49505 Block Sub-Assy, Cylinder[08.1983 - 04.1984] MU..MX60 |
11401-49505 |
US $3,523.52 |
||
|
11401
|
11401
90116-10097 New Genuine Part[08.1983 - 04.1984] MU..MX60 |
90116-10097 |
US $2.33 |
||
|
11401
|
11401
11401-49395
Block Sub-Assy, Cylinder
[04.1984 - 07.1984] MU..MX60 |
11401-49395 |
— | ||
| replacements | |||||
|
11401
|
11401
90179-10132 Nut[04.1984 - 07.1984] MU..MX60 |
90179-10132 |
from US $0.94 |
||
|
11401
|
11401
11071-43010-01
Bearing, Crankshaft
[04.1984 - 07.1984] MU..MX60 |
11071-43010-01 |
— | ||
|
11401
|
11401
11071-43010-02
Bearing, Crankshaft
[04.1984 - 07.1984] MU..MX60 |
11071-43010-02 |
— | ||
|
11401
|
11401
11071-43010-03
Bearing, Crankshaft
[04.1984 - 07.1984] MU..MX60 |
11071-43010-03 |
— | ||
|
11401
|
11401
11071-43010-04
Bearing, Crankshaft
[04.1984 - 07.1984] MU..MX60 |
11071-43010-04 |
— | ||
|
11401
|
11401
11071-43010-05
Bearing, Crankshaft
[04.1984 - 07.1984] MU..MX60 |
11071-43010-05 |
— | ||
|
11401
|
11401
11401-49505 Block Sub-Assy, Cylinder[04.1984 - 07.1984] MU..MX60 |
11401-49505 |
US $3,523.52 |
||
|
11401
|
11401
90116-10097 New Genuine Part[04.1984 - 07.1984] MU..MX60 |
90116-10097 |
US $2.33 |
||
|
11401
|
11401
11401-49505 Block Sub-Assy, Cylinder[07.1984 - 07.1984] MU..MX60 |
11401-49505 |
US $3,523.52 |
||
|
11415
|
11415
90910-09070
Cock Sub-Assy, Water Drain(For Cylinder Block)
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90910-09070 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
96431-53828 |
US $9.96 |
||
|
11415A
|
11415A
90910-09072
Plug, Water Drain Cock(For Cylinder Block)
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90910-09072 |
— | ||
| replacement | |||||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
96432-23814 |
— | ||
|
11416
|
11416
90910-02047
Bolt(For Crankshaft Bearing Cap Set)
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# *12-1.25PX67-22 |
90910-02047 |
— | ||
|
11418
|
11418
90999-70056 Bush, Solid(For Distributor)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90999-70056 |
US $13.25 |
||
|
11419
|
11419
90116-08185 Bolt, Stud(For Fuel Pump)[09.1980 - 02.1984] 5MEU,MTEU,MU..MX6# L=39,S=25&9 |
90116-08185 |
US $3.35 |
||
|
11419
|
11419
90116-08191
Bolt, Stud(For Fuel Pump)
[02.1984 - 07.1984] MTEU,MU..MX6# |
90116-08191 |
— | ||
|
11427
|
11427
90116-08121 Bolt, Stud(For Timing Chain Cover Set)STUD(FOR TIMING CHAIN COVER SET) [09.1980 - 09.1981] 5MEU,MU..MX6# L=65,S=12&12 |
90116-08121 |
US $2.91 |
||
|
11427
|
11427
90116-08147 Bolt, Stud(For Timing Chain Cover Set)[09.1981 - 07.1984] 5MEU,MTEU,MU..MX6# L=68,S=12&24 |
90116-08147 |
US $1.49 |
||
|
11427
|
11427
90116-10010 Bolt, Stud(For Timing Chain Cover Set)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# L=80,S=12&26 |
90116-10010 |
US $2.77 |
||
|
11431A
|
11431A
96411-44000 Plug, Tight, No.1[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# OD=40 |
96411-44000 |
from US $4.19 |
||
|
11431B
|
11431B
96412-43500 Plug, Tight, No.2(For Cylinder Block)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# OD=35 |
96412-43500 |
US $2.62 |
||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# OD=35; 13T#..TX6# OD=35 |
96411-43500 |
from US $3.88 |
||
|
11432C
|
11432C
90345-51006 Plug, W/head Taper Screw, No.2[02.1984 - 07.1984] MTEU,MU..MX6# |
90345-51006 |
from US $0.96 |
||
|
11432C
|
11432C
90345-51025 Plug, W/head Taper Screw, No.2[09.1980 - 02.1984] 5MEU,MTEU,MU..MX6#; 21RU..RX60 |
90345-51025 |
US $3.36 |
||
|
11433A
|
11433A
90344-53015 Plug, W/head Taper Screw, No.1[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90344-53015 |
US $4.80 |
||
|
11434A
|
11434A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# 長さ＝２２，外径＝１０,L=22,OD=10 |
90250-10192 |
from US $1.01 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# 長さ＝２２，外径＝１０,L=22,OD=10 |
90250-10192 |
from US $1.01 |
||
|
11434C
|
11434C
90250-08112
Pin, Straight(For Timing Gear Case)
[09.1980 - 02.1984] 5MEU,MTEU,MU..MX6# 長さ＝１６，外径＝８,L=16,OD=8 |
90250-08112 |
— | ||
| replacement | |||||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[09.1980 - 02.1984] 5MEU,MTEU,MU..MX6# 長さ＝１６，外径＝８,L=16,OD=8 |
90250-08120 |
from US $1.03 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[02.1984 - 07.1984] MTEU,MU..MX6# 長さ＝１８，外径＝８,L=18,OD=8 |
90250-08120 |
from US $1.03 |
||
|
11434D
|
11434D
90250-10192 Pin, Straight(For Timing Gear Cover Set)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# 長さ＝２２，外径＝１０,L=22,OD=10 |
90250-10192 |
from US $1.01 |
||
|
11437
|
11437
11437-45010
Bush, Oil Pump Shaft Guide
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
11437-45010 |
— | ||
|
11452
|
11452
11452-41020 Guide, Oil Level Gage[09.1980 - 07.1984] 5MEU,MU..MX60,63 |
11452-41020 |
US $14.56 |
||
|
11494
|
11494
11494-41010 Plate, Oil Hole Cover[04.1984 - 07.1984] MU..MX60 RR |
11494-41010 |
US $7.86 |
||
|
11494
|
11494
11494-45010
Plate, Oil Hole Cover
[09.1980 - 07.1984] 5MEU,MU..MX60,63 FR |
11494-45010 |
— | ||
|
11496
|
11496
15318-45011
Gasket, Oil Hole Cover Plate
[09.1980 - 07.1984] 5MEU,MU..MX60,63 FR |
15318-45011 |
— | ||
| replacement | |||||
|
11496
|
11496
15318-42011
Gasket, Oil Hole Cover Plate
[09.1980 - 07.1984] 5MEU,MU..MX60,63 FR |
15318-42011 |
— | ||
|
11496
|
11496
15473-41010
Gasket, Oil Hole Cover Plate
[04.1984 - 07.1984] MU..MX60 RR |
15473-41010 |
— | ||
| replacement | |||||
|
11496
|
11496
15473-42010 Gasket, Turbo Oil Outlet, No.2[04.1984 - 07.1984] MU..MX60 RR |
15473-42010 |
US $8 |
||
|
12101
|
12101
12101-49275
Pan Sub-Assy, Oil
[09.1980 - 08.1982] 5MEU,MU..MX60,63 |
12101-49275 |
— | ||
| replacements | |||||
|
12101
|
12101
12101-41040
Pan Sub-Assy, Oil
[09.1980 - 08.1982] 5MEU,MU..MX60,63 |
12101-41040 |
— | ||
|
12101
|
12101
90341-14032 Plug, W/head Taper Screw, No.1[09.1980 - 08.1982] 5MEU,MU..MX60,63 |
90341-14032 |
US $2.53 |
||
|
12101
|
12101
90430-14235 Gasket, W/head Taper Screw Plug[09.1980 - 08.1982] 5MEU,MU..MX60,63 |
90430-14235 |
US $3.68 |
||
|
12101
|
12101
12101-49295
Pan Sub-Assy, Oil
[08.1982 - 07.1984] MU..MX60 |
12101-49295 |
— | ||
| replacement | |||||
|
12101
|
12101
12101-49296 Pan Sub-Assy, Oil[08.1982 - 07.1984] MU..MX60 |
12101-49296 |
US $511.06 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[09.1980 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; 5MEU,MTEU,MU..MX6#; 21RU,18RGEU..RX6#; 1SU,2YPU..SX60; 13T#..TX6# |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[09.1980 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; 5MEU,MTEU,MU..MX6#; 21RU,18RGEU..RX6#; 1SU,2YPU..SX60; 13T#..TX6# |
90033-41020 |
from US $2.32 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[09.1980 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; 5MEU,MTEU,MU..MX6#; 21RU,18RGEU..RX6#; 1SU,2YPU..SX60; 13T#..TX6# |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[09.1980 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; 5MEU,MTEU,MU..MX6#; 21RU,18RGEU..RX6#; 1SU,2YPU..SX60; 13T#..TX6# |
90430-18023 |
from US $1.05 |
||
|
12151
|
12151
12151-41010 Gasket, Oil Pan[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
12151-41010 |
US $20.44 |
||
|
15301
|
15301
15301-45010 Gage Sub-Assy, Oil Level[09.1980 - 07.1984] 5MEU,MU..MX60,63 |
15301-45010 |
US $13.54 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
from US $1.19 |
||
