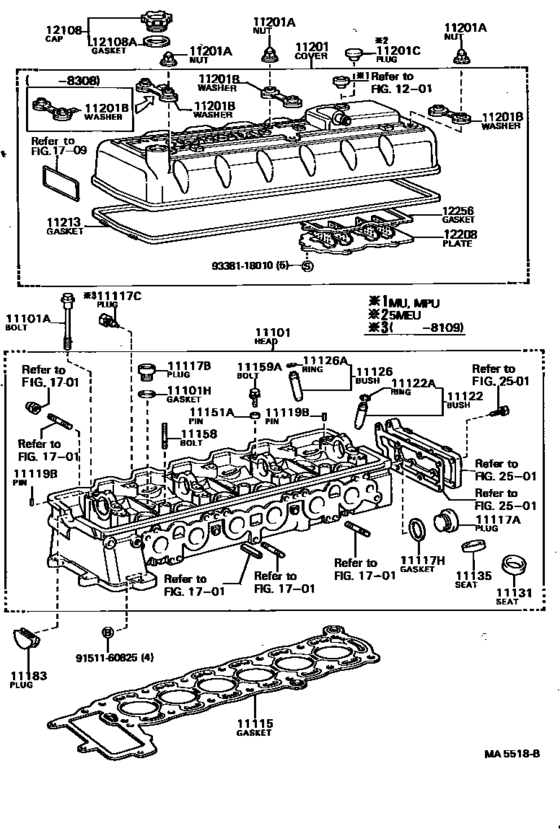

Cylinder Head ([09.1980 - ] (8009- )5MEU,MU) Diagram Toyota MARK 2
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- MX60
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 11.1980
- Engine
- MPU
- To
- 07.1984
- Gear Shift Type
- 4F
- Vehicle Model
- MARK 2
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49275 Head Sub-Assy, Cylinder[11.1980 - 07.1984] MU..MX60 |
11101-49275 |
US $1,572.48 |
||
| replacement | |||||
|
11101
|
11101
11101-41900 Head Sub-Assy, Cylinder[11.1980 - 07.1984] MU..MX60 |
11101-41900 |
US $1,485.12 |
||
|
11101A
|
11101A
90910-02058 Bolt(For Cylinder Head Set)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# *12-1.25PX166.5-21; 21RU..RX60 *12-1.25PX166.5-21 |
90910-02058 |
US $4.96 |
||
|
11101H
|
11101H
90430-33133 Gasket(For Cylinder Head Screw Plug)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90430-33133 |
US $3.20 |
||
|
11115
|
11115
11115-41040
Gasket, Cylinder Head
[11.1980 - 07.1984] MU..MX60 |
11115-41040 |
— | ||
|
11117A
|
11117A
90341-36001 Plug, W/head Taper Screw, No.1[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90341-36001 |
US $5.60 |
||
|
11117B
|
11117B
90341-32070 Plug, W/head Taper Screw, No.1[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90341-32070 |
US $10.66 |
||
|
11117H
|
11117H
90430-36001 Gasket(For Water Hole)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90430-36001 |
US $1.40 |
||
|
11119B
|
11119B
90253-08001 Pin, Straight, No.2[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# 長さ＝１８，外径＝７．９,L=18,OD=7.9 |
90253-08001 |
US $3.35 |
||
|
11122
|
11122
11122-41020 Bush, Intake Valve Guide[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# ＳＴＤ,STD |
11122-41020 |
US $13.25 |
||
|
11122
|
11122
11123-41020 Bush, Intake Valve Guide[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-41020 |
US $11.94 |
||
|
11122A
|
11122A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6#; 21RU..RX60; 1SU,2YPU..SX60; 13T#..TX6# |
90520-12049 |
from US $2.72 |
||
|
11126
|
11126
11126-41040 Bush, Exhaust Valve Guide[10.1981 - 07.1984] 5MEU,MTEU,MU..MX6# ＳＴＤ,STD |
11126-41040 |
US $7.13 |
||
|
11126
|
11126
11126-45020 Bush, Exhaust Valve GuideEXHAUST VALVE GUIDE [09.1980 - 10.1981] 5MEU,MU..MX6# ＳＴＤ,STD |
11126-45020 |
US $12.23 |
||
| replacement | |||||
|
11126
|
11126
11126-41040 Bush, Exhaust Valve Guide[09.1980 - 10.1981] 5MEU,MU..MX6# ＳＴＤ,STD |
11126-41040 |
US $7.13 |
||
|
11126
|
11126
11127-41040 Bush, Exhaust Valve Guide[10.1981 - 07.1984] 5MEU,MTEU,MU..MX6# Ｏ／Ｓ ０．０５,O/S 0.05 |
11127-41040 |
US $7.13 |
||
|
11126
|
11126
11127-45020 Bush, Exhaust Valve GuideEXHAUST VALVE GUIDE [09.1980 - 10.1981] 5MEU,MU..MX6# Ｏ／Ｓ ０．０５,O/S 0.05 |
11127-45020 |
US $12.23 |
||
| replacement | |||||
|
11126
|
11126
11127-41040 Bush, Exhaust Valve Guide[09.1980 - 10.1981] 5MEU,MU..MX6# Ｏ／Ｓ ０．０５,O/S 0.05 |
11127-41040 |
US $7.13 |
||
|
11126A
|
11126A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6#; 21RU..RX60; 1SU,2YPU..SX60; 13T#..TX6# |
90520-12049 |
from US $2.72 |
||
|
11131
|
11131
11131-43010 Seat, Intake Valve[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# ＳＴＤ,STD |
11131-43010 |
US $16.45 |
||
|
11131
|
11131
11132-43010 Seat, Intake Valve[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｏ／Ｓ ０．０３,O/S 0.03 |
11132-43010 |
US $15.87 |
||
|
11135
|
11135
11135-41030 Seat, Exhaust Valve[11.1980 - 07.1984] MU..MX60 ＳＴＤ,STD |
11135-41030 |
US $18.20 |
||
|
11135
|
11135
11136-41030 Seat, Exhaust Valve[11.1980 - 07.1984] MU..MX60 Ｏ／Ｓ ０．５０,O/S 0.03 |
11136-41030 |
US $19.36 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.46 |
||
|
11158
|
11158
90116-08003 Bolt, Stud(For Head To Cylinder Head Cover)[09.1980 - 07.1984] 5MEU,MU..MX60,63 長さ＝５１,L=51,S=14&8.5 |
90116-08003 |
US $2.18 |
||
|
11159A
|
11159A
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
91611-60825 |
— | ||
| replacement | |||||
|
11159A
|
11159A
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
91611-B0825 |
from US $1.13 |
||
|
11183
|
11183
11183-45010
Plug, Semicircular
[09.1980 - 11.1982] 5MEU,MTEU,MU..MX6# |
11183-45010 |
— | ||
| replacement | |||||
|
11183
|
11183
11183-45020 Plug, Semicircular[09.1980 - 11.1982] 5MEU,MTEU,MU..MX6# |
11183-45020 |
US $14.56 |
||
|
11183
|
11183
11183-45020 Plug, Semicircular[11.1982 - 07.1984] MTEU,MU..MX6# |
11183-45020 |
US $14.56 |
||
|
11201
|
11201
11201-49146 Cover Sub-Assy, Cylinder Head[09.1980 - 07.1984] 5MEU,MU..MX60,63 |
11201-49146 |
US $327.60 |
||
| replacement | |||||
|
11201
|
11201
11201-49147
Cover Sub-Assy, Cylinder Head
[09.1980 - 07.1984] 5MEU,MU..MX60,63 |
11201-49147 |
— | ||
|
11201A
|
11201A
90176-08015 Nut, Cap(For Cylinder Head Cover)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90176-08015 |
US $1.22 |
||
|
11201B
|
11201B
90210-09002 Washer, Seal(For Cylinder Head Cover)[09.1980 - 08.1983] 5MEU,MU..MX60,63 CTR,RR |
90210-09002 |
US $9.44 |
||
|
11201B
|
11201B
90210-09003
Washer, Seal(For Cylinder Head Cover)
[09.1980 - 08.1983] 5MEU,MTEU,MU..MX6# FR |
90210-09003 |
— | ||
|
11201B
|
11201B
90210-09009
Washer, Seal(For Cylinder Head Cover)
[08.1983 - 07.1984] MTEU,MU..MX6# FR |
90210-09009 |
— | ||
|
11213
|
11213
11213-41020 Gasket, Cylinder Head Cover[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
11213-41020 |
from US $21.74 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[09.1980 - 06.1983] 1GEU..GX6#; L,2LTE..LX6#; 5MEU,MTEU,MU..MX6#; 21RU..RX60; 1SU..SX60; 13T#..TX6# |
12180-13010 |
from US $16.11 |
||
|
12108
|
12108
12180-70010
Cap Sub-Assy, Oil Filler
[08.1983 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; MTEU,MU..MX6# |
12180-70010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[08.1983 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; MTEU,MU..MX6# |
12180-E0010 |
from US $13.61 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[09.1980 - 07.1984] 1G#..GX6#; L,2LTE..LX6#; 5MEU,MTEU,MU..MX6#; 21RU..RX60; 1SU..SX60; 13T#..TX6# |
90430-37140 |
from US $1.21 |
||
|
12208
|
12208
12208-41010 Plate Sub-Assy, Ventilation Baffle[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
12208-41010 |
US $42.95 |
||
|
12256
|
12256
12256-41021
Gasket, Ventilation Baffle
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
12256-41021 |
— | ||
| replacement | |||||
|
12256
|
12256
12256-43020
Gasket, Ventilation Baffle
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
12256-43020 |
— | ||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $2.24 |
||
|
9338118010
|
9338118010
93381-18010 New Genuine Part |
93381-18010 |
US $0.87 |
||
