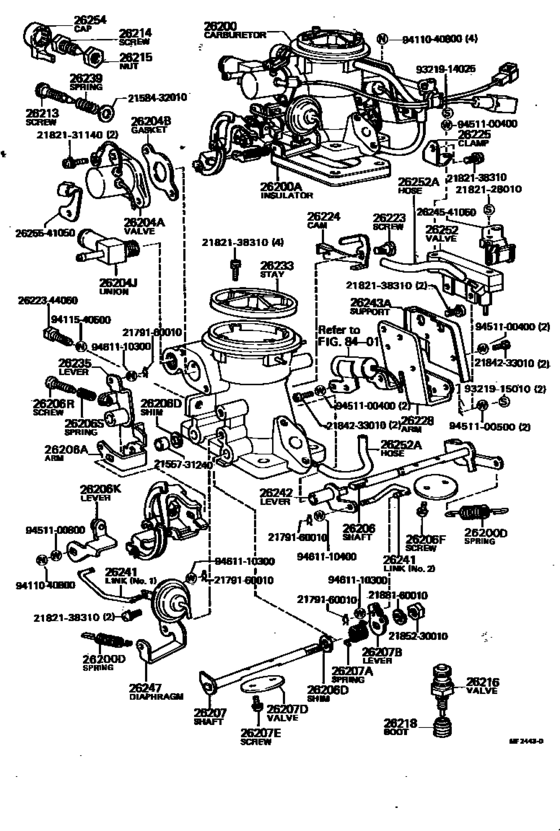

Lpg Carburetor ([11.1980 - 08.1983] (8011-8308)MU) Diagram Toyota MARK 2
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- MX60
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 11.1980
- Engine
- MPU
- To
- 07.1984
- Gear Shift Type
- 4F
- Vehicle Model
- MARK 2
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26200
|
26200
26200-41050
Carburetor Assy, Lpg
[11.1980 - 03.1981] MU..MX60 |
26200-41050 |
— | ||
|
26200
|
26200
26200-41060
Carburetor Assy, Lpg
[03.1981 - 08.1983] MU..MX60 |
26200-41060 |
— | ||
|
26200
|
26200
26200-41080
Carburetor Assy, Lpg
[08.1983 - 07.1984] MU..MX60 |
26200-41080 |
— | ||
|
26200A
|
26200A
21912-41060 Insulator, Lpg Carburetor Heat[11.1980 - 07.1984] MU..MX60 |
21912-41060 |
US $46.30 |
||
| replacement | |||||
|
26200A
|
26200A
21912-41061 Insulator, Lpg Carburetor Heat[11.1980 - 07.1984] MU..MX60 |
21912-41061 |
US $45.86 |
||
|
26200D
|
26200D
90506-09023 Spring, Back(For Lpg)[11.1980 - 03.1981] MU..MX60 |
90506-09023 |
US $2.33 |
||
| replacement | |||||
|
26200D
|
26200D
90506-09371 Spring, Back(For Lpg)[11.1980 - 03.1981] MU..MX60 |
90506-09371 |
US $2.33 |
||
|
26200D
|
26200D
90507-11001 Spring, Back(For Lpg)[03.1981 - 07.1984] MU..MX60 |
90507-11001 |
US $9.61 |
||
| replacement | |||||
|
26200D
|
26200D
90506-09371 Spring, Back(For Lpg)[03.1981 - 07.1984] MU..MX60 |
90506-09371 |
US $2.33 |
||
|
26204A
|
26204A
26208-41050 Valve, Throttle Solenoid(For Lpg)[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
26208-41050 |
US $123.76 |
||
|
26204B
|
26204B
26236-44020 Gasket, Solenoid Valve(For Lpg)[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
26236-44020 |
US $3.64 |
||
|
26204J
|
26204J
26249-41050
Union, No.2 Fuel Hose(For Lpg)
[11.1980 - 08.1983] MU..MX60 |
26249-41050 |
— | ||
|
26206
|
26206
26234-41050
Shaft, 1St Throttle(For Lpg)
[11.1980 - 03.1981] MU..MX60 |
26234-41050 |
— | ||
|
26206
|
26206
26234-41051
Shaft, 1St Throttle(For Lpg)
[03.1981 - 08.1983] MU..MX60 |
26234-41051 |
— | ||
|
26206A
|
26206A
26213-41050
Arm, 1St Throttle Shaft(For Lpg)
[11.1980 - 08.1983] MU..MX60 |
26213-41050 |
— | ||
|
26206D
|
26206D
21581-21010
Shim, 1St Throttle Shaft
[11.1980 - 08.1983] MU..MX60 2ND SHAFT (T=0.2) |
21581-21010 |
— | ||
|
26206D
|
26206D
21581-32010 Shim, 1St Throttle ShaftCHOKE ROD BELLCRANK SHAFT [11.1980 - 08.1983] MU..MX60 1ST SHAFT (T=0.2) |
21581-32010 |
US $3.93 |
||
|
26206D
|
26206D
21581-41010 Shim, 1St Throttle ShaftCHOKE ROD BELLCRANK SHAFT [11.1980 - 08.1983] MU..MX60 1ST SHAFT (T=0.1) |
21581-41010 |
US $3.93 |
||
|
26206D
|
26206D
21582-21010
Shim, 1St Throttle Shaft
[11.1980 - 08.1983] MU..MX60 2ND SHAFT (T=0.3) |
21582-21010 |
— | ||
| replacements | |||||
|
26206D
|
26206D
21581-21010
Shim, 1St Throttle Shaft
[11.1980 - 08.1983] MU..MX60 2ND SHAFT (T=0.3) |
21581-21010 |
— | ||
|
26206D
|
26206D
21588-21010
Shim, 1St Throttle Shaft
[11.1980 - 08.1983] MU..MX60 2ND SHAFT (T=0.3) |
21588-21010 |
— | ||
|
26206D
|
26206D
21583-21010
Shim, 1St Throttle Shaft
[11.1980 - 08.1983] MU..MX60 2ND SHAFT (T=0.6) |
21583-21010 |
— | ||
|
26206D
|
26206D
21583-32010
Shim, 1St Throttle Shaft
[11.1980 - 08.1983] MU..MX60 1ST SHAFT (T=0.6) |
21583-32010 |
— | ||
|
26206D
|
26206D
21583-41010 Shim, 1St Throttle ShaftCHOKE ROD BELLCRANK SHAFT [11.1980 - 08.1983] MU..MX60 1ST SHAFT (T=0.3) |
21583-41010 |
US $3.93 |
||
| replacements | |||||
|
26206D
|
26206D
21581-32010 Shim, 1St Throttle ShaftCHOKE ROD BELLCRANK SHAFT [11.1980 - 08.1983] MU..MX60 1ST SHAFT (T=0.3) |
21581-32010 |
US $3.93 |
||
|
26206D
|
26206D
21581-41010 Shim, 1St Throttle ShaftCHOKE ROD BELLCRANK SHAFT [11.1980 - 08.1983] MU..MX60 1ST SHAFT (T=0.3) |
21581-41010 |
US $3.93 |
||
|
26206D
|
26206D
21588-21010
Shim, 1St Throttle Shaft
[11.1980 - 08.1983] MU..MX60 2ND SHAFT (T=1.0) |
21588-21010 |
— | ||
|
26206F
|
26206F
21821-60011
Screw, 2Nd Throttle Valve Set
[11.1980 - 08.1983] MU..MX60 |
21821-60011 |
— | ||
|
26206K
|
26206K
26227-41050
Lever, Throttle Shaft(For Lpg)
[11.1980 - 08.1983] MU..MX60 |
26227-41050 |
— | ||
|
26206R
|
26206R
21842-24230 Screw, Adjusting[11.1980 - 07.1984] MU..MX60 |
21842-24230 |
US $4.51 |
||
|
26206S
|
26206S
21723-21030 Spring, Idle Adjusting[11.1980 - 07.1984] MU..MX60 |
21723-21030 |
US $4.19 |
||
|
26207
|
26207
26232-41050
Shaft, 2Nd Throttle(For Lpg)
[11.1980 - 08.1983] MU..MX60 |
26232-41050 |
— | ||
|
26207A
|
26207A
26239-41050 Spring, 2Nd Throttle Back(For Lpg)[11.1980 - 03.1981] MU..MX60 |
26239-41050 |
US $5.68 |
||
| replacement | |||||
|
26207A
|
26207A
26239-41051
Spring, 2Nd Throttle Back(For Lpg)
[11.1980 - 03.1981] MU..MX60 |
26239-41051 |
— | ||
|
26207A
|
26207A
26239-41051
Spring, 2Nd Throttle Back(For Lpg)
[03.1981 - 08.1983] MU..MX60 |
26239-41051 |
— | ||
|
26207B
|
26207B
26234-41010
Lever, 2Nd Throttle(For Lpg)
[11.1980 - 08.1983] MU..MX60 |
26234-41010 |
— | ||
|
26207D
|
26207D
21332-40010
Valve, 2Nd Throttle(For Lpg)
[11.1980 - 08.1983] MU..MX60 |
21332-40010 |
— | ||
|
26207E
|
26207E
21821-60011
Screw, 2Nd Throttle Valve Set
[11.1980 - 08.1983] MU..MX60 |
21821-60011 |
— | ||
|
26213
|
26213
26214-44060 Screw, Adjust[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
26214-44060 |
US $6.70 |
||
| replacement | |||||
|
26213
|
26213
26214-10010 Screw, Adjust[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
26214-10010 |
US $10.48 |
||
|
26214
|
26214
26214-44010 Screw, Power Adjust[11.1980 - 08.1983] MU..MX60 |
26214-44010 |
US $6.12 |
||
| replacement | |||||
|
26214
|
26214
26214-72010 Screw, Power Adjust[11.1980 - 08.1983] MU..MX60 |
26214-72010 |
US $6.70 |
||
|
26214
|
26214
26214-72010 Screw, Power Adjust[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
26214-72010 |
US $6.70 |
||
|
26215
|
26215
26215-41010 Nut, Power Adjust[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
26215-41010 |
US $2.77 |
||
|
26216
|
26216
26216-44060 Valve, Power[11.1980 - 07.1984] MU..MX60 |
26216-44060 |
US $30.28 |
||
|
26218
|
26218
26218-44060 Boot(For Power Valve)[11.1980 - 03.1981] MU..MX60 |
26218-44060 |
US $13.40 |
||
| replacement | |||||
|
26218
|
26218
26218-44061 Boot(For Power Valve)[11.1980 - 03.1981] MU..MX60 |
26218-44061 |
US $12.81 |
||
|
26218
|
26218
26218-44061 Boot(For Power Valve)[03.1981 - 07.1984] MU..MX60; 2YPU..SX60 |
26218-44061 |
US $12.81 |
||
|
26223
|
26223
26223-31012 Screw, Set(For Power Valve Cam)[11.1980 - 08.1983] MU..MX60 |
26223-31012 |
US $3.93 |
||
|
26224
|
26224
26224-41050
Cam, Power Valve, No.1
[11.1980 - 08.1983] MU..MX60 |
26224-41050 |
— | ||
|
26225
|
26225
26225-41050
Clamp(For Thermostatic Valve Set)
[11.1980 - 08.1983] MU..MX60 |
26225-41050 |
— | ||
|
26228
|
26228
26228-41050
Arm(For Thermostatic Valve)
[11.1980 - 08.1983] MU..MX60 |
26228-41050 |
— | ||
|
26233
|
26233
26233-41030 Stay, Stud[11.1980 - 07.1984] MU..MX60 |
26233-41030 |
US $46.30 |
||
|
26235
|
26235
26235-41050
Lever(For Power Valve)
[11.1980 - 08.1983] MU..MX60 |
26235-41050 |
— | ||
|
26239
|
26239
26239-44060 Spring[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
26239-44060 |
US $3.93 |
||
|
26241
|
26241
26241-41030
Link, Connecting
[11.1980 - 08.1983] MU..MX60 NO.1 |
26241-41030 |
— | ||
|
26241
|
26241
26241-41050
Link, Connecting
[11.1980 - 08.1983] MU..MX60 NO.2 |
26241-41050 |
— | ||
|
26242
|
26242
26242-41050
Lever, Throttle Shaft(For Lpg)
[11.1980 - 08.1983] MU..MX60 |
26242-41050 |
— | ||
|
26243A
|
26243A
26243-41050
Support(For Thermostatic Valve)
[11.1980 - 08.1983] MU..MX60 |
26243-41050 |
— | ||
|
26247
|
26247
26247-41050 Diaphragm[11.1980 - 07.1984] MU..MX60 |
26247-41050 |
US $56.93 |
||
|
26252
|
26252
26252-41050 Valve, Thermostatic[11.1980 - 07.1984] MU..MX60 |
26252-41050 |
US $44.41 |
||
|
26252A
|
26252A
26237-44050 Hose, Connecting[11.1980 - 07.1984] MU..MX60 |
26237-44050 |
US $5.97 |
||
| replacement | |||||
|
26252A
|
26252A
90079-71001
Pipe Or Hose, Connecting
[11.1980 - 07.1984] MU..MX60 |
90079-71001 |
— | ||
|
26254
|
26254
26254-44060 Cap, Power Screw Limit[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
26254-44060 |
US $10.63 |
||
|
2155731240
|
2155731240
21557-31240
Spacer(for 1st Idle Cam)
|
21557-31240 |
— | ||
|
2158432010
|
2158432010
21584-32010
Shim, Choke Rod Bellcrank Shaft
|
21584-32010 |
— | ||
|
2179160010
|
2179160010
21791-60010
Ring, Snap, No.1(For Carburetor Link)
|
21791-60010 |
— | ||
| replacement | |||||
|
2179160010
|
2179160010
21791-13010 Ring, Snap, No.1(For Carburetor Link) |
21791-13010 |
from US $1.54 |
||
|
2182128010
|
2182128010
21821-28010
Screw, 2nd Throttle Valve Set
|
21821-28010 |
— | ||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
2182138310
|
2182138310
21821-38310 Screw, 2Nd Throttle Valve Set |
21821-38310 |
from US $1.42 |
||
|
2184233010
|
2184233010
21842-33010
Screw, Power Piston Stop
|
21842-33010 |
— | ||
|
2185230010
|
2185230010
21852-30010 Nut, Throttle Lever Set |
21852-30010 |
US $4.22 |
||
|
2188160010
|
2188160010
21881-60010 Washer, Lock(For Throttle Shaft) |
21881-60010 |
US $3.79 |
||
|
2622344060
|
2622344060
26223-44060
Screw, Set(for Power Valve Cam)
|
26223-44060 |
— | ||
|
2624541050
|
2624541050
26245-41050
Bracket, Accele Rod Support
|
26245-41050 |
— | ||
|
2625541050
|
2625541050
26255-41050
New Genuine Part
|
26255-41050 |
— | ||
|
9321914025
|
9321914025
93219-14025
New Genuine Part
|
93219-14025 |
— | ||
|
9321915010
|
9321915010
93219-15010 SCREW |
93219-15010 |
US $2.04 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
