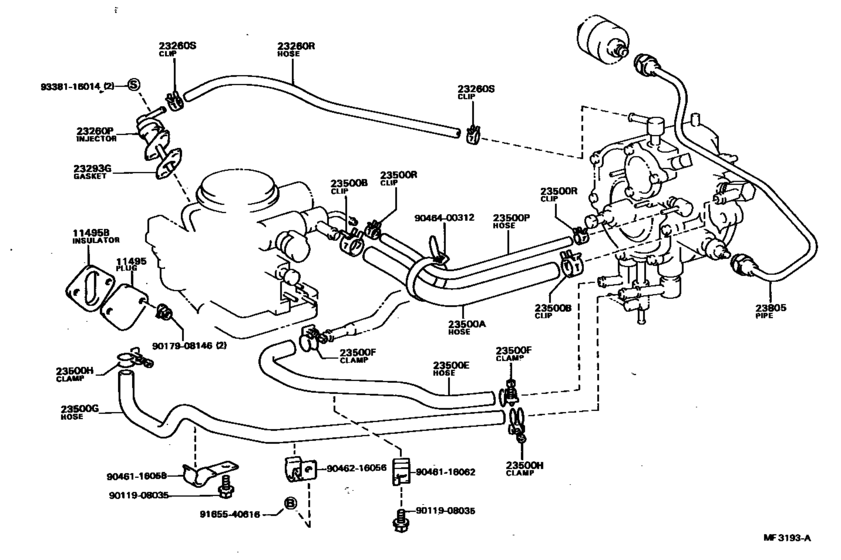

Lpg(Carburetor) Fuel Pipe ([08.1983 - ] (8308- )MU) Diagram Toyota MARK 2
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- MX60
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 11.1980
- Engine
- MPU
- To
- 07.1984
- Gear Shift Type
- 4F
- Vehicle Model
- MARK 2
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11495
|
11495
11495-41010 Cover, Cylinder Block Side, No.2[11.1980 - 07.1984] MU..MX60 |
11495-41010 |
US $11.36 |
||
|
11495B
|
11495B
90923-06002
Insulator, Fuel Pump(For Cylinder Block Plate Plug)
[11.1980 - 08.1983] MU..MX60 |
90923-06002 |
— | ||
| replacement | |||||
|
11495B
|
11495B
90923-06011
Insulator, Fuel Pump(For Cylinder Block Plate Plug)
[11.1980 - 08.1983] MU..MX60 |
90923-06011 |
— | ||
|
11495B
|
11495B
90923-06007
Gasket, Cylinder Block Side Cover, No.2
[08.1983 - 07.1984] MU..MX60 |
90923-06007 |
— | ||
| replacement | |||||
|
11495B
|
11495B
90923-06012 Gasket, Cylinder Block Side Cover, No.2[08.1983 - 07.1984] MU..MX60 |
90923-06012 |
US $7.43 |
||
|
23260P
|
23260P
23260-41040 Injector Assy, Lpg[11.1980 - 07.1984] MU..MX60 |
23260-41040 |
US $183.46 |
||
|
23260R
|
23260R
95332-08060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1980 - 07.1984] MU..MX60 ＊Ｈ，Ｌ＝４６０，内径＝８ |
95332-08060 |
— | ||
| replacement | |||||
|
23260R
|
23260R
95333-08060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1980 - 07.1984] MU..MX60 ＊Ｈ，Ｌ＝４６０，内径＝８ |
95333-08060 |
— | ||
|
23260S
|
23260S
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
90467-13001 |
— | ||
| replacement | |||||
|
23260S
|
23260S
96135-51300 Clamp, Hose[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
96135-51300 |
from US $1.92 |
||
|
23293G
|
23293G
23293-34020
Gasket, Cold Start Injector
[11.1980 - 07.1984] MU..MX60 |
23293-34020 |
— | ||
| replacement | |||||
|
23293G
|
23293G
23293-43020 Gasket, Cold Start Injector[11.1980 - 07.1984] MU..MX60 |
23293-43020 |
US $2.77 |
||
|
23500A
|
23500A
23271-41050
Hose, No.1(For Lpg Regulator To Lpg Carburetor)
[11.1980 - 08.1983] MU..MX60 |
23271-41050 |
— | ||
|
23500A
|
23500A
23271-41080
Hose, No.1(For Lpg Regulator To Lpg Carburetor)
[08.1983 - 07.1984] MU..MX60 |
23271-41080 |
— | ||
|
23500B
|
23500B
90467-20134 Clip(For Ventilation Hose No.2)[08.1983 - 07.1984] MU..MX60 |
90467-20134 |
from US $1.44 |
||
|
23500B
|
23500B
90467-26002
Clip(For Ventilation Hose)
[11.1980 - 08.1983] MU..MX60 CARBURETOR SIDE |
90467-26002 |
— | ||
| replacement | |||||
|
23500B
|
23500B
96134-52600 Clip Or Clamp(For Ventilation Hose)[11.1980 - 08.1983] MU..MX60 CARBURETOR SIDE |
96134-52600 |
from US $3.14 |
||
|
23500B
|
23500B
96112-10300 Clamp Or Clip, No.2(For Air Injection System Hose, No.2)[11.1980 - 08.1983] MU..MX60 REGULATOR SIDE |
96112-10300 |
US $3.06 |
||
|
23500E
|
23500E
16264-41070
Hose, Water(For Lpg Regulator Inlet)
[08.1983 - 07.1984] MU..MX60 |
16264-41070 |
— | ||
|
23500E
|
23500E
16267-41030
Hose, Water(For Lpg Regulator Inlet)
[11.1980 - 08.1983] MU..MX60 |
16267-41030 |
— | ||
|
23500F
|
23500F
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
96112-10220 |
US $0.61 |
||
|
23500G
|
23500G
16261-41080
Hose, Water(For Lpg Regulator Outlet)
[08.1983 - 07.1984] MU..MX60 |
16261-41080 |
— | ||
|
23500G
|
23500G
16264-41040 Hose, Water(For Lpg Regulator Outlet)WATER(FOR LPG REGULATOR OUTLET) [11.1980 - 08.1983] MU..MX60 |
16264-41040 |
US $17.62 |
||
|
23500H
|
23500H
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
96112-10220 |
US $0.61 |
||
|
23500P
|
23500P
95332-04030
Hose, No.2(For Lpg Regulator To Lpg Carburetor)
[08.1983 - 07.1984] MU..MX60 ＊Ｈ，Ｌ＝３００ |
95332-04030 |
— | ||
| replacement | |||||
|
23500P
|
23500P
95333-04030 Hose, No.2(For Lpg Regulator To Lpg Carburetor)[08.1983 - 07.1984] MU..MX60 ＊Ｈ，Ｌ＝３００ |
95333-04030 |
US $8.56 |
||
|
23500P
|
23500P
95332-08030
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1980 - 08.1983] MU..MX60 ＊Ｈ，Ｌ＝３００，内径＝８ |
95332-08030 |
— | ||
| replacement | |||||
|
23500P
|
23500P
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[11.1980 - 08.1983] MU..MX60 ＊Ｈ，Ｌ＝３００，内径＝８ |
95333-08030 |
from US $10.56 |
||
|
23500R
|
23500R
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[11.1980 - 08.1983] MU..MX60 |
90467-13001 |
— | ||
| replacement | |||||
|
23500R
|
23500R
96135-51300 Clamp, Hose[11.1980 - 08.1983] MU..MX60 |
96135-51300 |
from US $1.92 |
||
|
23500R
|
23500R
96132-30400
Clip Or Clamp(For Ventilation Hose)
[08.1983 - 07.1984] MU..MX60 |
96132-30400 |
— | ||
| replacement | |||||
|
23500R
|
23500R
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1983 - 07.1984] MU..MX60 |
96132-51000 |
from US $1.62 |
||
|
23805
|
23805
23805-41030
Pipe Sub-Assy, Lpg Regulator
[11.1980 - 08.1983] MU..MX60 |
23805-41030 |
— | ||
|
23805
|
23805
23805-72020
Pipe Sub-Assy, Lpg Regulator
[08.1983 - 07.1984] MU..MX60 |
23805-72020 |
— | ||
|
9011908035
|
9011908035
90119-08035 New Genuine Part |
90119-08035 |
US $2.04 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046116058
|
9046116058
90461-16058
New Genuine Part
|
90461-16058 |
— | ||
|
9046116062
|
9046116062
90461-16062 New Genuine Part |
90461-16062 |
US $4.66 |
||
|
9046216056
|
9046216056
90462-16056 New Genuine Part |
90462-16056 |
US $8.59 |
||
|
9046400312
|
9046400312
90464-00312 New Genuine Part |
90464-00312 |
US $1.31 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9338116014
|
9338116014
93381-16014 New Genuine Part |
93381-16014 |
US $0.87 |
||
