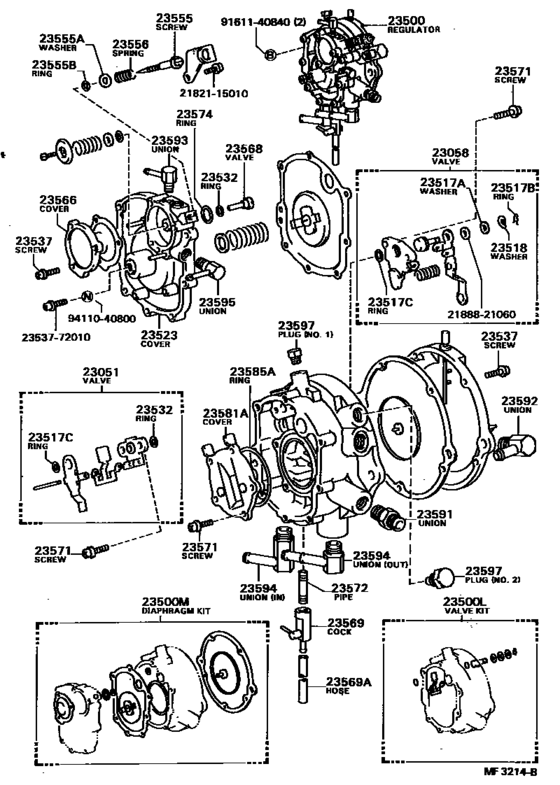

Lpg Or Cng Regulator ([08.1983 - ] (8308- )MU) Diagram Toyota MARK 2
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- MX60
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 11.1980
- Engine
- MPU
- To
- 07.1984
- Gear Shift Type
- 4F
- Vehicle Model
- MARK 2
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23051
|
23051
23051-44040 Valve Sub-Assy, 1St1ST [11.1980 - 08.1983] MU..MX60 |
23051-44040 |
US $34.07 |
||
|
23051
|
23051
23051-72010 Valve Sub-Assy, 1St[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23051-72010 |
US $42.22 |
||
|
23058
|
23058
23058-41070 Valve Sub-Assy, 2Nd[08.1983 - 07.1984] MU..MX60 |
23058-41070 |
US $56.64 |
||
|
23058
|
23058
23058-44040 Valve Sub-Assy, 2Nd[11.1980 - 12.1982] MU..MX60 |
23058-44040 |
US $44.84 |
||
| replacement | |||||
|
23058
|
23058
23058-44041 Valve Sub-Assy, 2Nd[11.1980 - 12.1982] MU..MX60 |
23058-44041 |
US $46.88 |
||
|
23058
|
23058
23058-44041 Valve Sub-Assy, 2Nd[12.1982 - 08.1983] MU..MX60 |
23058-44041 |
US $46.88 |
||
|
23500
|
23500
23500-41050 Regulator Assy, Lpg(Cng)LPG(CNG) [11.1980 - 08.1983] MU..MX60 |
23500-41050 |
US $831.38 |
||
|
23500
|
23500
23500-41070
Regulator Assy, Lpg(Cng)
[08.1983 - 07.1984] MU..MX60 |
23500-41070 |
— | ||
|
23500L
|
23500L
04236-44010 Valve Kit, Lpg RegulatorLPG REGULATOR [11.1980 - 08.1983] MU..MX60 |
04236-44010 |
US $33.78 |
||
|
23500L
|
23500L
04236-72010 Valve Kit, Lpg Regulator[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
04236-72010 |
US $31.42 |
||
|
23500M
|
23500M
04235-44030 Diaphragm Kit, Lpg Regulator, W/o Valve[11.1980 - 08.1983] MU..MX60 |
04235-44030 |
US $142.69 |
||
|
23500M
|
23500M
04235-72010 Diaphragm Kit, Lpg Regulator, W/o Valve[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
04235-72010 |
US $199.18 |
||
|
23517A
|
23517A
21535-10010 Shim(For High Speed Shaft)[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
21535-10010 |
US $1.60 |
||
|
23517B
|
23517B
21792-69210
Ring, Snap
[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
21792-69210 |
— | ||
|
23517C
|
23517C
23532-44020 Gasket(For Elastic Face Valve)[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
23532-44020 |
US $3.58 |
||
|
23518
|
23518
23518-40010
Washer, Wave(For Elastic Face Valve Set)
[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
23518-40010 |
— | ||
|
23523
|
23523
23523-72010 Cover, 1St Regulator[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23523-72010 |
US $80.08 |
||
|
23532
|
23532
23532-40010 Ring, O(For Thermostatic Valve)[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
23532-40010 |
US $3.36 |
||
|
23537
|
23537
21821-31140 Screw(For 2Nd Regulator Cover Set)[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
21821-31140 |
US $2.34 |
||
|
23555
|
23555
23555-44041 Screw, Idle Adjust[11.1980 - 08.1983] MU..MX60 |
23555-44041 |
US $5.97 |
||
| replacement | |||||
|
23555
|
23555
23555-48050 Screw, Idle Adjust[11.1980 - 08.1983] MU..MX60 |
23555-48050 |
US $5.68 |
||
|
23555
|
23555
23555-72020
Screw, Idle Adjust
[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23555-72020 |
— | ||
| replacement | |||||
|
23555
|
23555
23555-48050 Screw, Idle Adjust[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23555-48050 |
US $5.68 |
||
|
23555A
|
23555A
21885-26040 Washer, Idle Adjust Screw[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
21885-26040 |
US $2.33 |
||
|
23555B
|
23555B
23532-40010 Ring, O(For Thermostatic Valve)[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
23532-40010 |
US $3.36 |
||
|
23556
|
23556
21723-21030 Spring, Idle Adjusting[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
21723-21030 |
US $4.19 |
||
|
23566
|
23566
23566-72010 Cover(For Vacuum Lock Diaphragm)[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23566-72010 |
US $18.35 |
||
|
23568
|
23568
23568-72010 Valve(For Vacuum Lock Diaphragm)[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23568-72010 |
US $8.74 |
||
|
23569
|
23569
23569-40011
Cock, Drain
[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
23569-40011 |
— | ||
|
23569A
|
23569A
23579-41050 Hose(For Drain Cock)[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
23579-41050 |
US $10.63 |
||
|
23571
|
23571
23571-72010 Screw(For Vacuum Lock Diaphragm Ring Set)[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23571-72010 |
US $3.30 |
||
|
23571
|
23571
93219-14012 Screw(For Vacuum Lock Diaphragm Ring Set)[11.1980 - 08.1983] MU..MX60 |
93219-14012 |
US $1.31 |
||
|
23572
|
23572
23572-41030 Pipe, Drain[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
23572-41030 |
US $7.86 |
||
|
23574
|
23574
23574-44021 Ring, O, No.1(For Bulb)[11.1980 - 08.1983] MU..MX60 |
23574-44021 |
US $3.20 |
||
|
23574
|
23574
23574-72010 Ring, O, No.1(For Bulb)[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23574-72010 |
US $6.84 |
||
|
23581A
|
23581A
23581-72010 Cover, Upper Preheater[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23581-72010 |
US $24.32 |
||
|
23585A
|
23585A
23585-72010 Ring, O(For Preheater)[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23585-72010 |
US $13.69 |
||
|
23591
|
23591
90404-14064 Union, Lpg Filter Inlet[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
90404-14064 |
US $7.43 |
||
|
23592
|
23592
23592-40012
Union, No.2, Fuel Hose
[11.1980 - 08.1983] MU..MX60 |
23592-40012 |
— | ||
|
23592
|
23592
23592-44050 Union, No.1, Fuel[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23592-44050 |
US $18.64 |
||
| replacement | |||||
|
23592
|
23592
23592-72010 Union, No.1, Fuel[02.1983 - 07.1984] MU..MX60; 2YPU..SX60 |
23592-72010 |
US $11.36 |
||
|
23593
|
23593
23593-44040 Union, No.3NO.3 [08.1983 - 07.1984] MU..MX60 |
23593-44040 |
US $17.91 |
||
|
23593
|
23593
23593-44050
Union, No.3
[11.1980 - 08.1983] MU..MX60 |
23593-44050 |
— | ||
|
23594
|
23594
23592-73020 Union, No.2, Fuel Hose[08.1983 - 07.1984] MU..MX60 OUTLET |
23592-73020 |
US $18.35 |
||
|
23594
|
23594
23594-41030 Union, Water Hose(For Inlet)[11.1980 - 08.1983] MU..MX60 INLET |
23594-41030 |
US $18.20 |
||
|
23594
|
23594
23594-41040 Union, No.4, Water Hose[11.1980 - 08.1983] MU..MX60 OUTLET |
23594-41040 |
US $20.68 |
||
|
23595
|
23595
23591-41041
Union, No.5
[11.1980 - 08.1983] MU..MX60 |
23591-41041 |
— | ||
|
23595
|
23595
23591-41070 Union, No.1, Fuel[08.1983 - 07.1984] MU..MX60 |
23591-41070 |
US $19.66 |
||
|
23597
|
23597
90341-16094 Plug, W/head Taper Screw, No.1[08.1983 - 07.1984] MU..MX60 NO.2 |
90341-16094 |
from US $6.08 |
||
|
23597
|
23597
90345-51005
Plug, W/head Taper Screw, No.1
[08.1983 - 07.1984] 2YPU..SX60; MU..MX60 NO.1 |
90345-51005 |
— | ||
| replacement | |||||
|
23597
|
23597
90345-51025 Plug, W/head Taper Screw, No.2[08.1983 - 07.1984] 2YPU..SX60; MU..MX60 NO.1 |
90345-51025 |
US $3.36 |
||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
2188821060
|
2188821060
21888-21060 Washer, Spring |
21888-21060 |
US $3.35 |
||
|
2353772010
|
2353772010
23537-72010 Screw(for 2nd Regulator Cover Set) |
23537-72010 |
US $4.08 |
||
|
9161140840
|
9161140840
91611-40840
New Genuine Part
|
91611-40840 |
— | ||
| replacement | |||||
|
9161140840
|
9161140840
91611-60840 BOLT |
91611-60840 |
from US $1.54 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
