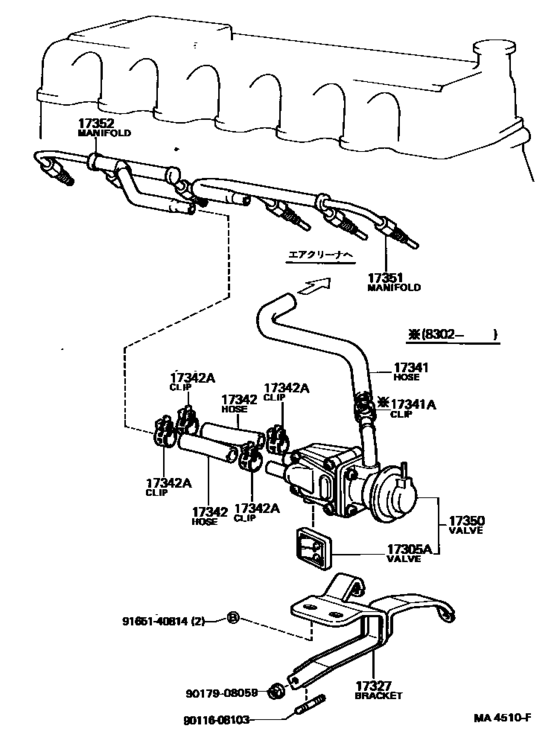

Manifold Air Injection System ([11.1980 - ] (8011- )MU) Diagram Toyota MARK 2
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- MX60
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 11.1980
- Engine
- MPU
- To
- 07.1984
- Gear Shift Type
- 4F
- Vehicle Model
- MARK 2
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17305A
|
17305A
17305-15020
Valve Sub-Assy, Reed
[11.1980 - 07.1984] MU..MX60 |
17305-15020 |
— | ||
|
17327
|
17327
17327-41010 Bracket, Reed Valve[11.1980 - 07.1984] MU..MX60 |
17327-41010 |
US $74.26 |
||
|
17341
|
17341
17341-41060
Hose, No.1(For Air Injection System)
[11.1980 - 08.1983] MU..MX60 |
17341-41060 |
— | ||
|
17341
|
17341
17341-41070
Hose, No.1(For Air Injection System)
[08.1983 - 07.1984] MU..MX60 |
17341-41070 |
— | ||
|
17341A
|
17341A
90467-26001
Clip Or Clamp(For Ventilation Hose)
[08.1983 - 07.1984] MU..MX60 |
90467-26001 |
— | ||
| replacement | |||||
|
17341A
|
17341A
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.1983 - 07.1984] MU..MX60 |
96134-52600 |
from US $3.84 |
||
|
17341A
|
17341A
90467-26002
Clip(For Ventilation Hose)
[02.1983 - 08.1983] MU..MX60 |
90467-26002 |
— | ||
| replacement | |||||
|
17341A
|
17341A
96134-52600 Clip Or Clamp(For Ventilation Hose)[02.1983 - 08.1983] MU..MX60 |
96134-52600 |
from US $3.84 |
||
|
17342
|
17342
90445-23005 Hose, No.2(For Air Injection System)[11.1980 - 07.1984] MU..MX60 |
90445-23005 |
US $5.10 |
||
|
17342A
|
17342A
90467-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.1980 - 07.1984] MU..MX60; 13TU..TX60 |
90467-21001 |
US $2.77 |
||
| replacement | |||||
|
17342A
|
17342A
90467-21006 Clip(For Ventilation Hose No.2)[09.1980 - 07.1984] MU..MX60; 13TU..TX60 |
90467-21006 |
US $2.56 |
||
|
17350
|
17350
17350-41010 Valve Assy, Reed[11.1980 - 07.1984] MU..MX60 |
17350-41010 |
US $208.21 |
||
|
17351
|
17351
17351-41050 Manifold, Air Injection[11.1980 - 07.1984] MU..MX60 |
17351-41050 |
US $116.48 |
||
|
17352
|
17352
17352-41010 Manifold, Air Injection, No.2[11.1980 - 07.1984] MU..MX60 |
17352-41010 |
US $91.73 |
||
|
9011608103
|
9011608103
90116-08103 New Genuine Part |
90116-08103 |
US $3.64 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
