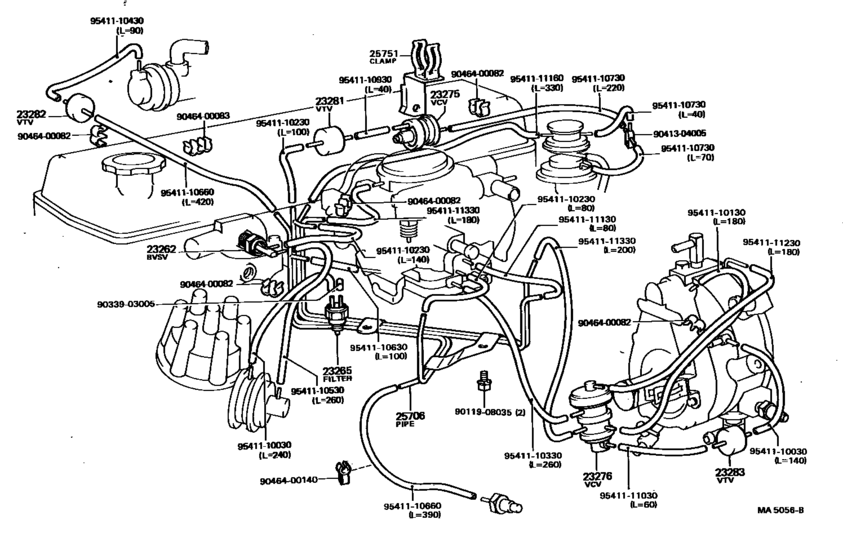

Vacuum Piping ([11.1980 - 08.1983] (8011-8308)MU) Diagram Toyota MARK 2
- Year
- 1980 - 1984
- Sales region
- Japan
- Frame
- MX60
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 11.1980
- Engine
- MPU
- To
- 07.1984
- Gear Shift Type
- 4F
- Vehicle Model
- MARK 2
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23262
|
23262
90925-05017 Valve, Bimetal Vacuum Switching, No.1[11.1980 - 07.1984] MU..MX60 |
90925-05017 |
US $41.95 |
||
|
23265
|
23265
90917-11029 Filter Assy, Air[11.1980 - 07.1984] MU..MX60; 2YPU..SX60 |
90917-11029 |
US $19.95 |
||
|
23275
|
23275
90925-03085 Valve, Vacuum Control, No.1VACUUM CONTROL, NO.1 [11.1980 - 08.1983] MU..MX60 |
90925-03085 |
US $39.31 |
||
|
23275
|
23275
90925-03142 Valve, Vacuum Control, No.1[08.1983 - 07.1984] MU..MX60 |
90925-03142 |
US $53.87 |
||
|
23276
|
23276
90925-03086 Valve, Vacuum Control, No.2[11.1980 - 06.1982] MU..MX60 |
90925-03086 |
US $125.22 |
||
| replacement | |||||
|
23276
|
23276
90925-03144 Valve, Vacuum Control, No.2[11.1980 - 06.1982] MU..MX60 |
90925-03144 |
US $123.76 |
||
|
23276
|
23276
90925-03144 Valve, Vacuum Control, No.2[06.1982 - 08.1983] MU..MX60 |
90925-03144 |
US $123.76 |
||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[09.1980 - 07.1984] MU..MX60; 18RGEU..RX63 |
90925-01014 |
— | ||
|
23282
|
23282
90925-01076 Valve, Vacuum Transmitting, No.2VACUUM TRANSMITTING, NO.2 [11.1980 - 08.1983] MU..MX60 |
90925-01076 |
US $38 |
||
|
23283
|
23283
90925-01014
Valve, Vacuum Transmitting, No.1
[11.1980 - 08.1983] MU..MX60 |
90925-01014 |
— | ||
|
25706
|
25706
25706-41050
Pipe Sub-Assy, Vacuum Transmitting, No.1
[11.1980 - 08.1983] MU..MX60 |
25706-41050 |
— | ||
|
25706
|
25706
25706-41060 Pipe Sub-Assy, Vacuum Transmitting, No.1[08.1983 - 07.1984] MU..MX60 |
25706-41060 |
US $78.62 |
||
|
25751
|
25751
25753-45010
Clamp, Vacuum Control Valve, No.1
[11.1980 - 08.1983] MU..MX60 |
25753-45010 |
— | ||
|
9011908035
|
9011908035
90119-08035 New Genuine Part |
90119-08035 |
US $2.04 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
US $1.76 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
US $3.04 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
|
9046400083
|
9046400083
90464-00083
New Genuine Part
|
90464-00083 |
— | ||
|
9046400140
|
9046400140
90464-00140 Clamp, Resistive Cord, No.4 |
90464-00140 |
US $2.62 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110230
|
9541110230
95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift) |
95411-10230 |
US $6.70 |
||
| replacement | |||||
|
9541110230
|
9541110230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110430
|
9541110430
95411-10430 Hose (For Idle Up Device) |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
9541110430
|
9541110430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110530
|
9541110530
95411-10530 Hose, No.1(For Opener) |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
9541110530
|
9541110530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110630
|
9541110630
95411-10630 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10630 |
US $6.70 |
||
| replacement | |||||
|
9541110630
|
9541110630
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110660
|
9541110660
95411-10660 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10660 |
US $12.23 |
||
| replacement | |||||
|
9541110660
|
9541110660
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541110730
|
9541110730
95411-10730 Hose, Vacuum, No.7 (For Heater Or Air Conditioner) |
95411-10730 |
US $6.70 |
||
| replacement | |||||
|
9541110730
|
9541110730
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110930
|
9541110930
95411-10930 Hose, Air |
95411-10930 |
US $6.26 |
||
| replacement | |||||
|
9541110930
|
9541110930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111030
|
9541111030
95411-11030 Hose (For Idle Up Device) |
95411-11030 |
US $6.26 |
||
| replacement | |||||
|
9541111030
|
9541111030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111130
|
9541111130
95411-11130 Hose, Air |
95411-11130 |
US $8.01 |
||
| replacement | |||||
|
9541111130
|
9541111130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111160
|
9541111160
95411-11160 Hose, Breather (For Transfer Case) |
95411-11160 |
US $14.27 |
||
| replacement | |||||
|
9541111160
|
9541111160
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9541111230
|
9541111230
95411-11230 Hose, Vacuum (For Idle Up Device), No.1 |
95411-11230 |
US $6.84 |
||
| replacement | |||||
|
9541111230
|
9541111230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541111330
|
9541111330
95411-11330 Hose, Air |
95411-11330 |
US $6.26 |
||
| replacement | |||||
|
9541111330
|
9541111330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
