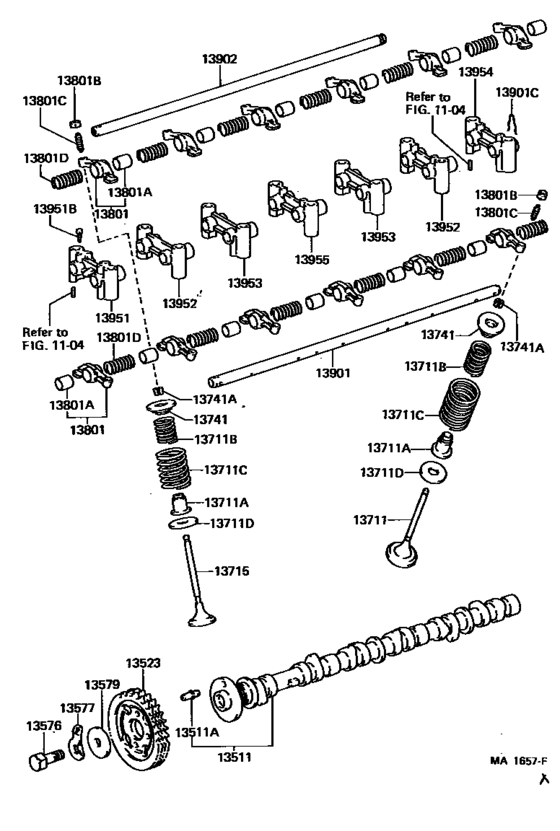

Camshaft & Valve ([09.1980 - ] (8009- )5MEU,MTEU,MU) Diagram Toyota MARK 2
- Year
- 1981 - 1984
- Sales region
- Japan
- Frame
- MX61
- grade
- LGT
- body
- HT
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 10.1981
- To
- 07.1984
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13511
|
13511
13501-41031 Camshaft[11.1980 - 07.1984] MTEU,MU..MX60,61 |
13501-41031 |
US $709.07 |
||
|
13511A
|
13511A
90249-08042 Pin, Straight(For Camshaft Knock)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# 長さ＝２３，外径＝８,L=23,OD=8 |
90249-08042 |
US $2.77 |
||
|
13523
|
13523
13523-43010
Gear Or Sprocket, Camshaft Timing
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# N=40 |
13523-43010 |
— | ||
|
13576
|
13576
13576-45010
Bolt, Camshaft Timing Gear
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13576-45010 |
— | ||
|
13577
|
13577
13577-41010 Plate, Lock[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13577-41010 |
US $3.20 |
||
|
13579
|
13579
90201-16328 Washer, Camshaft Timing Gear Bolt[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90201-16328 |
US $4.95 |
||
|
13711
|
13711
13711-41020 Valve, Intake[02.1983 - 07.1984] MTEU,MU..MX6# |
13711-41020 |
US $33.20 |
||
|
13711
|
13711
13711-45010
Valve, Intake
[11.1980 - 02.1983] MTEU,MU..MX60,61 |
13711-45010 |
— | ||
| replacement | |||||
|
13711
|
13711
13711-41020 Valve, Intake[11.1980 - 02.1983] MTEU,MU..MX60,61 |
13711-41020 |
US $33.20 |
||
|
13711A
|
13711A
90913-02015 Seal Or Ring, O(For Valve Stem Oil)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# EXHAUST |
90913-02015 |
US $7.69 |
||
|
13711A
|
13711A
90913-02022 Seal Or Ring, O(For Valve Stem Oil)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# INTAKE |
90913-02022 |
US $27.06 |
||
|
13711B
|
13711B
90501-26001 Spring, Compression(For Inner)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# WD=2.6,CW=7.75 |
90501-26001 |
US $2.77 |
||
|
13711C
|
13711C
90501-45002 Spring, Compression(For Outer)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# WD=4.5,CW=6.2 |
90501-45002 |
US $8.15 |
||
|
13711D
|
13711D
90201-14310 Washer, Plate(For Valve Spring Seat)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90201-14310 |
US $1.60 |
||
|
13715
|
13715
13715-45020
Valve, Exhaust
[11.1980 - 07.1984] MTEU,MU..MX60,61 |
13715-45020 |
— | ||
|
13741
|
13741
13741-41010 Retainer, Valve Spring[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13741-41010 |
US $4.37 |
||
|
13741A
|
13741A
90913-03005 Lock, Valve Spring Retainer[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6#; 21RU..RX60; 1SU..SX60; 13T#..TX6# |
90913-03005 |
from US $3.84 |
||
|
13801
|
13801
13801-41051 Arm Sub-Assy, Valve Rocker, No.1[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13801-41051 |
US $44.99 |
||
|
13801A
|
13801A
90999-73076
Bush, Bimetal Formed(For Rocker Arm)
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90999-73076 |
— | ||
|
13801B
|
13801B
90170-08210 Nut, Hexagon(For Valve Adjusting)[08.1981 - 07.1984] L,2LTE..LX6#; 5MEU,MTEU,MU..MX6# |
90170-08210 |
US $2.04 |
||
| replacement | |||||
|
13801B
|
13801B
90170-08005 Nut, Hexagon(For Valve Adjusting)[08.1981 - 07.1984] L,2LTE..LX6#; 5MEU,MTEU,MU..MX6# |
90170-08005 |
from US $1.23 |
||
|
13801C
|
13801C
90913-05019 Screw, Valve Adjusting[02.1981 - 07.1984] L,2LTE..LX6#; 5MEU,MTEU,MU..MX6#; 21RU..RX60 |
90913-05019 |
from US $4.23 |
||
|
13801D
|
13801D
90501-14013 Spring, Compression(For Rocker Arm)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90501-14013 |
US $2.33 |
||
|
13901
|
13901
13901-45010
Shaft Sub-Assy, Valve Rocker, No.1
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13901-45010 |
— | ||
| replacement | |||||
|
13901
|
13901
13901-45011
Shaft Sub-Assy, Valve Rocker, No.1
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13901-45011 |
— | ||
|
13901C
|
13901C
90524-15008
Spring, Retainer(For Valve Rocker Shaft)
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90524-15008 |
— | ||
|
13902
|
13902
13902-45011
Shaft Sub-Assy, Valve Rocker, No.2
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13902-45011 |
— | ||
| replacement | |||||
|
13902
|
13902
13902-45012
Shaft Sub-Assy, Valve Rocker, No.2
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13902-45012 |
— | ||
|
13951
|
13951
13951-45011
Support, Valve Rocker, No.1
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13951-45011 |
— | ||
|
13951B
|
13951B
90109-06014 Screw Or Bolt(For Valve Rocker Shaft Lock)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90109-06014 |
US $1.89 |
||
|
13952
|
13952
13952-45010 Support, Valve Rocker, No.2[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13952-45010 |
US $42.08 |
||
|
13953
|
13953
13953-45011 Support, Valve Rocker, No.3[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13953-45011 |
US $48.48 |
||
|
13954
|
13954
13954-45012
Support, Valve Rocker, No.4
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13954-45012 |
— | ||
|
13955
|
13955
13955-45010 Support, Valve Rocker, No.5[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
13955-45010 |
US $50.67 |
||
