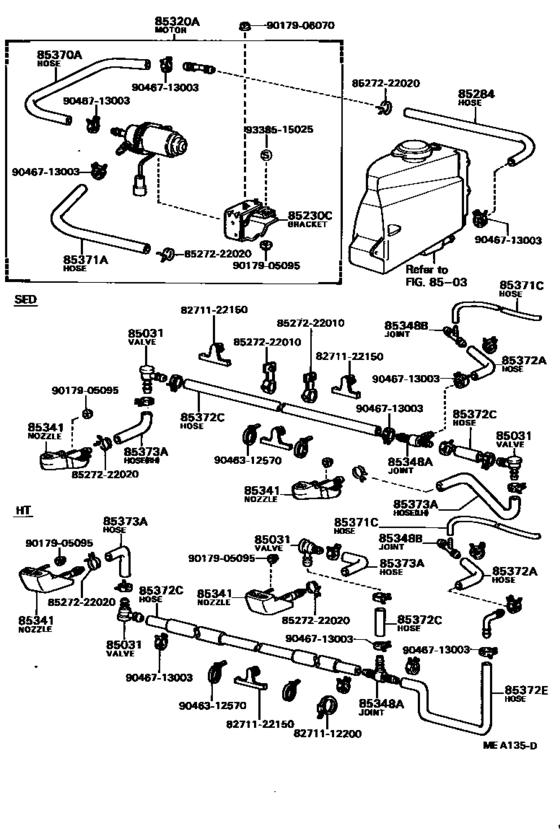

Headlamp Cleaner ([09.1980 - 08.1982] (8009-8208)GD,GT,LG,LGT) Diagram Toyota MARK 2
- Year
- 1981 - 1984
- Sales region
- Japan
- Frame
- MX61
- grade
- LGT
- body
- HT
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 10.1981
- To
- 07.1984
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031
|
85031
85031-30020 Valve, Headlamp Cleaner Washer Hose[10.1981 - 07.1984] MX61..LGT |
85031-30020 |
from US $29.64 |
||
|
85230C
|
85230C
85361-22190
Bracket Assy, Headlamp Cleaner
[10.1981 - 07.1984] MX61..LGT |
85361-22190 |
— | ||
|
85284
|
85284
85271-22051
Hose Assy, Headlamp Cleaner Washer
[10.1981 - 07.1984] MX61..LGT |
85271-22051 |
— | ||
|
85320A
|
85320A
85320-22011
Motor And Bracket Assy, Headlamp Cleaner Washer
[10.1981 - 07.1984] MX61..LGT |
85320-22011 |
— | ||
|
85341
|
85341
85035-22060
Nozzle, Headlamp Cleaner Washer
[10.1981 - 08.1982] MX61..HT..LGT |
85035-22060 |
— | ||
|
85341
|
85341
85035-95800
Nozzle, Headlamp Cleaner Washer
[08.1982 - 07.1984] MX61..HT..LGT; GX61..HT..GD |
85035-95800 |
— | ||
|
85348A
|
85348A
85352-12010 Joint, Headlamp Cleaner Hose, No.1[10.1981 - 07.1984] MX61..LGT |
85352-12010 |
from US $5.95 |
||
|
85348B
|
85348B
85352-20010 Joint, Headlamp Cleaner Hose, No.1[10.1981 - 07.1984] MX61..LGT |
85352-20010 |
US $9.76 |
||
|
85370A
|
85370A
85271-22030
Hose Assy, Headlamp Cleaner Washer, No.1
[10.1981 - 07.1984] MX61..LGT |
85271-22030 |
— | ||
|
85371A
|
85371A
85271-22060 Hose, Headlamp Cleaner, No.3[10.1981 - 07.1984] MX61..LGT 長さ＝１０７０ |
85271-22060 |
US $11.07 |
||
|
85371C
|
85371C
85376-22071
Hose, Headlamp Cleaner, No.1
[10.1981 - 07.1984] MX61..LGT |
85376-22071 |
— | ||
|
85372A
|
85372A
85271-22020 Hose, Headlamp Cleaner, No.6[10.1981 - 07.1984] MX61..LGT |
85271-22020 |
US $11.94 |
||
|
85372C
|
85372C
85375-22061 Hose, Headlamp Cleaner, No.1[08.1982 - 07.1984] GX61..GD 長さ＝６４０; MX61..LGT 長さ＝６４０ |
85375-22061 |
US $27.37 |
||
|
85372C
|
85372C
90445-14037 Hose, Headlamp Cleaner Washer (From Joint To Valve)HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) [10.1981 - 08.1982] MX61..HT..LGT ＊Ｈ，L＝９４０ |
90445-14037 |
US $24.32 |
||
| replacement | |||||
|
85372C
|
85372C
90445-14072 Hose, Headlamp Cleaner, No.1[10.1981 - 08.1982] MX61..HT..LGT ＊Ｈ，L＝９４０ |
90445-14072 |
from US $19.11 |
||
|
85372C
|
85372C
90445-14041 Hose, Headlamp Cleaner (From Joint To Joint Or Nozzle)HEADLAMP CLEANER, NO.6 [08.1982 - 07.1984] GX61..GD ＊Ｈ，L＝４１０; MX61..LGT ＊Ｈ，L＝４１０ |
90445-14041 |
US $25.19 |
||
| replacement | |||||
|
85372C
|
85372C
85375-22061 Hose, Headlamp Cleaner, No.1[08.1982 - 07.1984] GX61..GD ＊Ｈ，L＝４１０; MX61..LGT ＊Ｈ，L＝４１０ |
85375-22061 |
US $27.37 |
||
|
85372C
|
85372C
90445-14071 Hose, Headlamp Cleaner, No.3[10.1981 - 08.1982] MX61..LGT 長さ＝５０ |
90445-14071 |
from US $3.84 |
||
|
85372E
|
85372E
85375-22071
Hose, Headlamp Cleaner Washer(From Joint To Joint)
[10.1981 - 08.1982] MX61..HT..LGT |
85375-22071 |
— | ||
|
85373A
|
85373A
85271-22020 Hose, Headlamp Cleaner, No.6[10.1981 - 08.1982] MX61..HT..LGT |
85271-22020 |
US $11.94 |
||
|
85373A
|
85373A
90445-14071 Hose, Headlamp Cleaner, No.3[08.1982 - 07.1984] GX61..GD 長さ＝５０; MX61..LGT 長さ＝５０ |
90445-14071 |
from US $3.84 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
8271122150
|
8271122150
82711-22150 Wire, Fuse To Fuse(for Combustion Heater) |
82711-22150 |
US $3.84 |
||
|
8527222010
|
8527222010
85272-22010
Cable Sub-assy, Headlamp Cleaner, Rh
|
85272-22010 |
— | ||
|
8527222020
|
8527222020
85272-22020
Clamp, Headlamp Cleaner, No.1
|
85272-22020 |
— | ||
| replacement | |||||
|
8527222020
|
8527222020
85272-20080 Clamp, Headlamp Cleaner, No.1 |
85272-20080 |
US $3.84 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9046713003
|
9046713003
90467-13003 New Genuine Part |
90467-13003 |
US $2.33 |
||
|
9338515025
|
9338515025
93385-15025 New Genuine Part |
93385-15025 |
US $1.05 |
||
