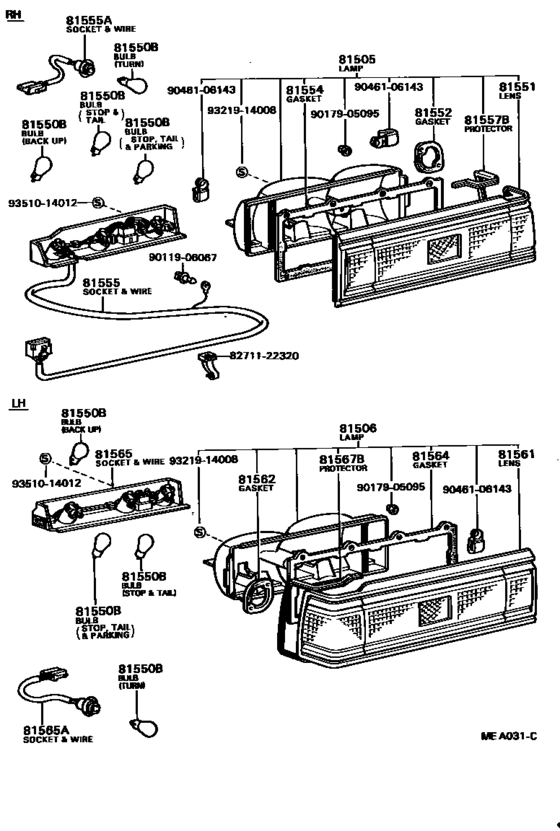

Rear Combination Lamp ([09.1980 - 08.1982] (8009-8208)HT) Diagram Toyota MARK 2
- Year
- 1981 - 1984
- Sales region
- Japan
- Frame
- MX61
- grade
- LGT
- body
- HT
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 10.1981
- To
- 07.1984
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-29395 Lamp Sub-Assy, Rear Combination, Rh[09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81505-29395 |
US $400.40 |
||
| replacement | |||||
|
81505
|
81505
81505-95806 Lamp Sub-Assy, Rear Combination, Rh[09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81505-95806 |
US $371.28 |
||
|
81505
|
81505
81505-29445 Lamp Sub-Assy, Rear Combination, Rh[08.1982 - 07.1984] GX61,MX61,SX60..HT |
81505-29445 |
US $460.10 |
||
| replacement | |||||
|
81505
|
81505
81505-95807 Lamp Sub-Assy, Rear Combination, Rh[08.1982 - 07.1984] GX61,MX61,SX60..HT |
81505-95807 |
US $444.08 |
||
|
81506
|
81506
81506-29315 Lamp Sub-Assy, Rear Combination, LhREAR COMBINATION, LH [09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81506-29315 |
US $400.40 |
||
|
81506
|
81506
81506-29365 Lamp Sub-Assy, Rear Combination, Lh[08.1982 - 07.1984] GX61,MX61,SX60..HT |
81506-29365 |
US $460.10 |
||
| replacement | |||||
|
81506
|
81506
81506-95807 Lamp Sub-Assy, Rear Combination, Lh[08.1982 - 07.1984] GX61,MX61,SX60..HT |
81506-95807 |
US $444.08 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[09.1980 - 07.1984] GX6#,LX6#,MX6#,RX6#,SX60,TX6# １２Ｖ ２３Ｗ,12V 23W(TURN OR BACK UP) |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[09.1980 - 07.1984] GX6#,LX6#,MX6#,RX6#,SX60,TX6# １２Ｖ ２３Ｗ,12V 23W(TURN OR BACK UP) |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[09.1980 - 07.1984] GX6#,LX6#,MX6#,RX6#,SX60,TX6# １２Ｖ ２１／５Ｗ,12V 21/5W(STOP,TAIL & PARKING); GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED １２Ｖ ２１／５Ｗ,12V 21/5W(STOP & TAIL) |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-95808 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81551-95808 |
US $251.89 |
||
|
81551
|
81551
81551-95809 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81551-95809 |
US $420.78 |
||
|
81552
|
81552
81562-95808 Gasket, Rear Combination Lamp Lens, RhREAR COMBINATION LAMP LENS, RH [09.1980 - 07.1984] GX6#,MX61,63,RX6#,SX60,TX60..HT |
81562-95808 |
US $5.39 |
||
|
81554
|
81554
81552-95808 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81552-95808 |
US $18.64 |
||
|
81554
|
81554
81554-95809 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81554-95809 |
US $19.22 |
||
|
81555
|
81555
81555-95808
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81555-95808 |
— | ||
|
81555
|
81555
81555-95809 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81555-95809 |
US $100.46 |
||
|
81555A
|
81555A
81556-95808
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81556-95808 |
— | ||
|
81555A
|
81555A
81556-95809 Socket & Wire Sub-Assy, Rear Combination Lamp, RhBACK-UP LAMP [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81556-95809 |
US $15.87 |
||
|
81557B
|
81557B
81557-95808 Protector, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81557-95808 |
US $8.15 |
||
|
81557B
|
81557B
81557-95809 Protector, Rear Combination Lamp, RhBACK-UP LAMP BODY, RH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81557-95809 |
US $8.74 |
||
|
81561
|
81561
81561-95803 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81561-95803 |
US $251.89 |
||
|
81561
|
81561
81561-95809 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81561-95809 |
US $420.78 |
||
|
81562
|
81562
81562-95808 Gasket, Rear Combination Lamp Lens, RhREAR COMBINATION LAMP LENS, RH [09.1980 - 07.1984] GX6#,MX61,63,RX6#,SX60,TX60..HT |
81562-95808 |
US $5.39 |
||
|
81564
|
81564
81552-95808 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81552-95808 |
US $18.64 |
||
|
81564
|
81564
81554-95809 Gasket, Rear Combination Lamp Body, RhREAR COMBINATION LAMP BODY, RH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81554-95809 |
US $19.22 |
||
|
81565
|
81565
81565-95803
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81565-95803 |
— | ||
|
81565
|
81565
81565-95804 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81565-95804 |
US $51.25 |
||
|
81565A
|
81565A
81556-95808
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81556-95808 |
— | ||
|
81565A
|
81565A
81556-95809 Socket & Wire Sub-Assy, Rear Combination Lamp, RhBACK-UP LAMP [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81556-95809 |
US $15.87 |
||
|
81567B
|
81567B
81557-95809 Protector, Rear Combination Lamp, RhBACK-UP LAMP BODY, RH [08.1982 - 07.1984] GX61,MX61,SX60..HT |
81557-95809 |
US $8.74 |
||
|
81567B
|
81567B
81567-95803
Protector, Rear Combination Lamp, Lh
[09.1980 - 08.1982] GX6#,MX61,63,RX6#,TX60..HT |
81567-95803 |
— | ||
|
8271122320
|
8271122320
82711-22320
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-22320 |
— | ||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9046106143
|
9046106143
90461-06143 New Genuine Part |
90461-06143 |
US $1.89 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.08 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $1.60 |
||
