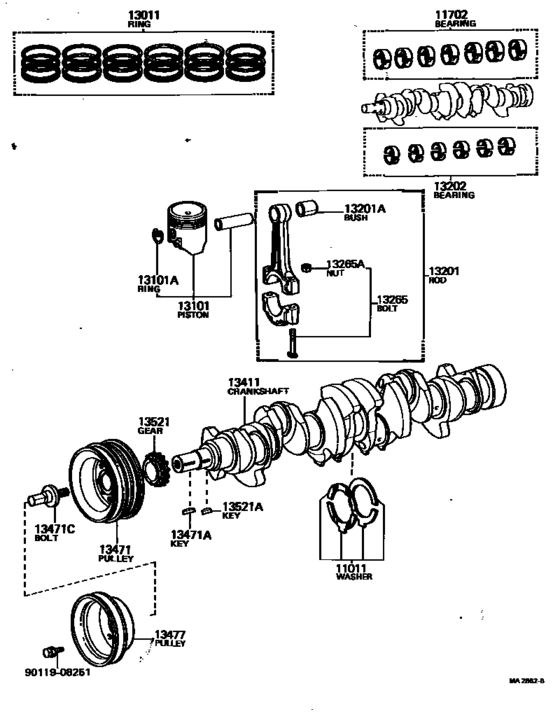

Crankshaft & Piston ([09.1980 - 08.1982] (8009-8208)5MEU) Diagram Toyota MARK 2
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- MX63
- grade
- GD
- body
- HT
- ENGINE
- 5MEU
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-43010 Washer Set, Crankshaft Thrust[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# ＳＴＤ,STD |
11011-43010 |
US $26.56 |
||
|
11011
|
11011
11012-43010
Washer Set, Crankshaft Thrust
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-43010 |
— | ||
|
11011
|
11011
11013-43010
Washer Set, Crankshaft Thrust
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｏ／Ｓ ０．２５０,O/S 0.250 |
11013-43010 |
— | ||
|
11702
|
11702
11702-45011
Bearing Set, Crankshaft
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# ＳＴＤ,STD |
11702-45011 |
— | ||
|
11702
|
11702
11703-45011 Bearing Set, Crankshaft[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．０５,U/S 0.05 |
11703-45011 |
US $301.39 |
||
|
11702
|
11702
11704-45011
Bearing Set, Crankshaft
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-45011 |
— | ||
|
11702
|
11702
11705-45011
Bearing Set, Crankshaft
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．５０,U/S 0.50 |
11705-45011 |
— | ||
|
13011
|
13011
13011-43010
Ring Set, Piston
[09.1980 - 08.1982] 5MEU..MX63 ＳＴＤ,STD |
13011-43010 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-43031
Ring Set, Piston
[09.1980 - 08.1982] 5MEU..MX63 ＳＴＤ,STD |
13011-43031 |
— | ||
|
13011
|
13011
13013-43020 Ring Set, Piston[09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-43020 |
US $294.11 |
||
| replacement | |||||
|
13011
|
13011
13013-43031 Ring Set, PistonPISTON [09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-43031 |
US $298.48 |
||
|
13011
|
13011
13014-43020 Ring Set, Piston[09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-43020 |
US $294.11 |
||
| replacement | |||||
|
13011
|
13011
13014-43031 Ring Set, PistonPISTON [09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-43031 |
US $298.48 |
||
|
13011
|
13011
13015-43020 Ring Set, Piston[09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ １．００,O/S 1.00 |
13015-43020 |
US $294.11 |
||
| replacement | |||||
|
13011
|
13011
13015-43031 Ring Set, PistonPISTON [09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ １．００,O/S 1.00 |
13015-43031 |
US $298.48 |
||
|
13101
|
13101
13101-43010 Piston Sub-Assy, W/pinW/PIN [09.1980 - 08.1982] 5MEU..MX63 ＳＴＤ,STD |
13101-43010 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13101-43011-02 Piston Sub-Assy, W/pinW/PIN [09.1980 - 08.1982] 5MEU..MX63 ＳＴＤ,STD |
13101-43011-02 |
US $94.64 |
||
|
13101
|
13101
13103-43030 Piston Sub-Assy, W/pinW/PIN [09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-43030 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13103-43031 Piston Sub-Assy, W/pinW/PIN [09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-43031 |
US $100.46 |
||
|
13101
|
13101
13104-43030 Piston Sub-Assy, W/pinW/PIN [09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ ０．７５,O/S 0.75 |
13104-43030 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13104-43031 Piston Sub-Assy, W/pinW/PIN [09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ ０．７５,O/S 0.75 |
13104-43031 |
US $100.46 |
||
|
13101
|
13101
13105-43030 Piston Sub-Assy, W/pinW/PIN [09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ １．００,O/S 1.00 |
13105-43030 |
US $97.55 |
||
| replacement | |||||
|
13101
|
13101
13105-43031 Piston Sub-Assy, W/pinW/PIN [09.1980 - 08.1982] 5MEU..MX63 Ｏ／Ｓ １．００,O/S 1.00 |
13105-43031 |
US $100.46 |
||
|
13101A
|
13101A
90521-25052 Ring, Hole Snap(For Piston Pin)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90521-25052 |
US $2.48 |
||
|
13201
|
13201
13201-45010 Rod Sub-Assy, Connecting[09.1980 - 08.1982] 5MEU..MX63 |
13201-45010 |
US $215.49 |
||
| replacement | |||||
|
13201
|
13201
13201-49015 Rod Sub-Assy, Connecting[09.1980 - 08.1982] 5MEU..MX63 |
13201-49015 |
US $214.03 |
||
|
13201A
|
13201A
90999-73066 Bush(For Connecting Rod Small End)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90999-73066 |
US $7.16 |
||
|
13202
|
13202
13202-45011
Bearing, Connecting Rod
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# ＳＴＤ,STD |
13202-45011 |
— | ||
|
13202
|
13202
13203-45011 Bearing Set, Connecting Rod[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．０５,U/S 0.05 |
13203-45011 |
US $160.16 |
||
|
13202
|
13202
13204-45011
Bearing Set, Connecting Rod
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-45011 |
— | ||
|
13202
|
13202
13205-45011
Bearing Set, Connecting Rod
[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# Ｕ／Ｓ ０．５０,U/S 0.50 |
13205-45011 |
— | ||
|
13265
|
13265
13265-49025
Bolt, Connecting Rod
[09.1980 - 08.1982] 5MEU..MX63 |
13265-49025 |
— | ||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[09.1980 - 03.1983] 5MEU..MX63; 2YPU..SX60; 13T#..TX6# |
90170-09195 |
US $3.20 |
||
|
13411
|
13411
13411-45012 Crankshaft[09.1980 - 08.1982] 5MEU..MX63 |
13411-45012 |
US $1,747.20 |
||
| replacements | |||||
|
13411
|
13411
13411-45013 Crankshaft[09.1980 - 08.1982] 5MEU..MX63 |
13411-45013 |
US $1,820 |
||
|
13411
|
13411
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[09.1980 - 08.1982] 5MEU..MX63 |
90280-05003 |
US $2.62 |
||
|
13471
|
13471
13407-41021
Pulley, Crankshaft
[09.1980 - 08.1983] 5MEU,MTEU,MU..MX6# |
13407-41021 |
— | ||
|
13471A
|
13471A
90280-05001 Key, Crankshaft(For Crankshaft Pulley Set)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# |
90280-05001 |
US $3.32 |
||
|
13471C
|
13471C
90105-16002
Bolt(For Crankshaft Pulley Set)
[09.1980 - 03.1982] 5MEU,MTEU,MU..MX6# *16-1.5PX26-21 |
90105-16002 |
— | ||
| replacement | |||||
|
13471C
|
13471C
90105-16011
Bolt(For Crankshaft Pulley Set)
[09.1980 - 03.1982] 5MEU,MTEU,MU..MX6# *16-1.5PX26-21 |
90105-16011 |
— | ||
|
13471C
|
13471C
90105-16011
Bolt(For Crankshaft Pulley Set)
[03.1982 - 07.1984] 5MEU,MTEU,MU..MX6# |
90105-16011 |
— | ||
|
13477
|
13477
88451-22052 Pulley, Crankshaft, No.2[09.1980 - 08.1982] 5MEU..MX63 |
88451-22052 |
US $45.72 |
||
|
13521
|
13521
13521-41011 Gear Or Sprocket, Crankshaft Timing[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6# N=20 |
13521-41011 |
US $50.38 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[09.1980 - 07.1984] 5MEU,MTEU,MU..MX6#; 21RU,18RGEU..RX6#; 2YPU..SX60; 13T#..TX6# |
90280-05010 |
from US $1.89 |
||
|
9011908251
|
9011908251
90119-08251 BOLT |
90119-08251 |
US $1.28 |
||
