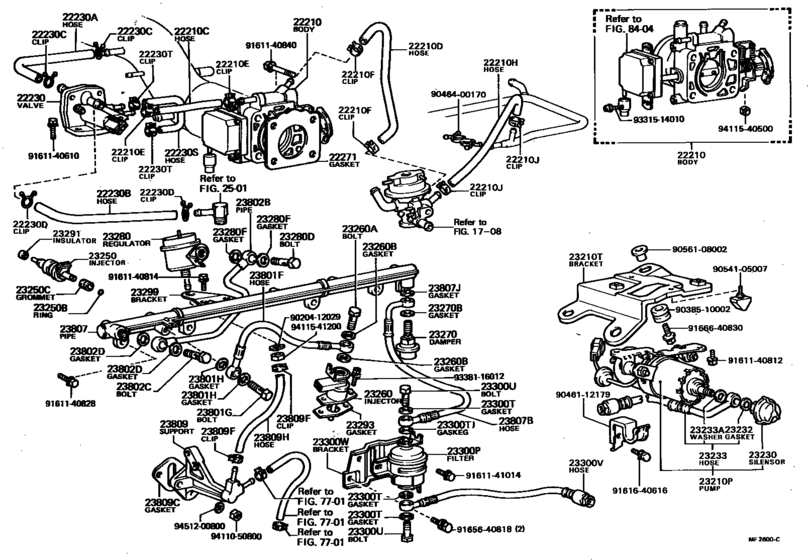

Fuel Injection System ([09.1980 - 08.1982] (8009-8208)5MEU) Diagram Toyota MARK 2
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- MX63
- grade
- GD
- body
- HT
- ENGINE
- 5MEU
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-43060
Body Assy, Throttle
[09.1980 - 08.1982] 5MEU..MX63 |
22210-43060 |
— | ||
|
22210C
|
22210C
16281-43010
Hose, Water By-Pass, No.1
[09.1980 - 08.1983] 5MEU,MTEU..MX61,63 |
16281-43010 |
— | ||
|
22210D
|
22210D
16264-43010 Hose, Water By-Pass, No.2WATER BY-PASS, NO.2 [09.1980 - 08.1982] 5MEU..MX63 |
16264-43010 |
US $22.57 |
||
|
22210E
|
22210E
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.1980 - 07.1984] 1GGEU..GX61; 5MEU,MTEU..MX61,63 |
90467-13001 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[09.1980 - 07.1984] 1GGEU..GX61; 5MEU,MTEU..MX61,63 |
96135-51300 |
from US $1.92 |
||
|
22210F
|
22210F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.1980 - 07.1984] 1GGEU..GX61; 5MEU,MTEU..MX61,63 |
90467-13001 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[09.1980 - 07.1984] 1GGEU..GX61; 5MEU,MTEU..MX61,63 |
96135-51300 |
from US $1.92 |
||
|
22210H
|
22210H
16261-43010 Hose, Water By-Pass, No.3WATER BY-PASS, NO.3 [09.1980 - 08.1982] 5MEU..MX63 |
16261-43010 |
US $11.07 |
||
|
22210J
|
22210J
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.1980 - 07.1984] 1GGEU..GX61; 5MEU..MX63 |
90467-13001 |
— | ||
| replacement | |||||
|
22210J
|
22210J
96135-51300 Clamp, Hose[09.1980 - 07.1984] 1GGEU..GX61; 5MEU..MX63 |
96135-51300 |
from US $1.92 |
||
|
22230
|
22230
22230-45010
Valve Assy, Auxiliary Air
[09.1980 - 08.1982] 5MEU..MX63 |
22230-45010 |
— | ||
|
22230A
|
22230A
17343-41020
Hose, Auxiliary Air Valve, No.1
[09.1980 - 08.1982] 5MEU..MX63 |
17343-41020 |
— | ||
|
22230B
|
22230B
17344-41010
Hose, Auxiliary Air Valve, No.2
[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
17344-41010 |
— | ||
|
22230C
|
22230C
90467-21152 Clip Or Clamp(For Ventilation Hose)[09.1980 - 08.1981] 1GEU..GX6#; 5MEU..MX63 |
90467-21152 |
US $5.60 |
||
|
22230D
|
22230D
90467-21152 Clip Or Clamp(For Ventilation Hose)[09.1980 - 08.1981] 1GEU..GX6#; 5MEU..MX63; 18RGEU..RX63 |
90467-21152 |
US $5.60 |
||
|
22230S
|
22230S
16261-45010
Hose, Water By-Pass(For Auxiliary Air Valve)
[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
16261-45010 |
— | ||
|
22230T
|
22230T
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
90467-13001 |
— | ||
| replacement | |||||
|
22230T
|
22230T
96135-51300 Clamp, Hose[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
96135-51300 |
from US $1.92 |
||
|
22271
|
22271
22271-41030
Gasket, Throttle Body
[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
22271-41030 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-43020
Gasket, Throttle Body
[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
22271-43020 |
— | ||
|
23210P
|
23210P
23210-45030 Pump Assy, Fuel W/motor & BracketFUEL W/MOTOR & BRACKET [09.1980 - 07.1984] 18RGEU..RX63; 5MEU,MTEU..MX61,63; 1G#..GX6#..HT,SED |
23210-45030 |
US $722.18 |
||
|
23210T
|
23210T
23206-45030 Bracket, Fuel PumpFUEL PUMP [09.1980 - 07.1984] 18RGEU..RX63; 5MEU,MTEU..MX61,63; 1G#..GX6#..HT,SED |
23206-45030 |
US $41.93 |
||
|
23230
|
23230
23230-26080
Silencer Assy
[09.1980 - 11.1982] 18RGEU..RX63; 5MEU,MTEU..MX61,63; 1G#..GX6# |
23230-26080 |
— | ||
|
23232
|
23232
23232-26080 Gasket(For Fuel Pump Hose)[09.1980 - 07.1982] 1GEU..GX6#; 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
23232-26080 |
US $3.20 |
||
| replacement | |||||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[09.1980 - 07.1982] 1GEU..GX6#; 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
23232-41081 |
from US $1.40 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[07.1982 - 07.1984] 1G#..GX6#; 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
23232-41081 |
from US $1.40 |
||
|
23233
|
23233
90999-99066 Hose, Fuel PumpFUEL PUMP [09.1980 - 07.1982] 18RGEU..RX63; 5MEU,MTEU..MX61,63; 1GEU..GX6#..HT,SED |
90999-99066 |
US $122.30 |
||
| replacement | |||||
|
23233
|
23233
90999-99097 Hose, Fuel PumpFUEL PUMP [09.1980 - 07.1982] 18RGEU..RX63; 5MEU,MTEU..MX61,63; 1GEU..GX6#..HT,SED |
90999-99097 |
US $109.20 |
||
|
23233
|
23233
90999-99097 Hose, Fuel PumpFUEL PUMP [07.1982 - 11.1982] 18RGEU..RX63; 5MEU,MTEU..MX61,63; 1G#..GX6#..HT,SED |
90999-99097 |
US $109.20 |
||
|
23233A
|
23233A
90099-01012 Washer(For Fuel Pump Hose)[09.1980 - 07.1982] 1GEU..GX6#; 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
90099-01012 |
US $1.75 |
||
| replacement | |||||
|
23233A
|
23233A
90099-01496
Washer(For Fuel Pump Hose)
[09.1980 - 07.1982] 1GEU..GX6#; 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
90099-01496 |
— | ||
|
23233A
|
23233A
90099-01496
Washer(For Fuel Pump Hose)
[07.1982 - 07.1984] 1G#..GX6#; 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
90099-01496 |
— | ||
|
23250
|
23250
23250-45011
Injector Assy, Fuel
[09.1980 - 01.1984] 1GGEU..GX61; 5MEU,MTEU..MX61,63 |
23250-45011 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[09.1980 - 07.1984] 1G#..GX6#; 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[09.1980 - 07.1984] 1G#..GX6#; 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-45010
Injector Assy, Cold Start Fuel
[09.1980 - 08.1982] 5MEU..MX63 |
23260-45010 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-49086
Injector Assy, Cold Start Fuel
[09.1980 - 08.1982] 5MEU..MX63 |
23260-49086 |
— | ||
|
23260A
|
23260A
90401-10008
Bolt, Union
[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
90401-10008 |
— | ||
|
23260B
|
23260B
90099-01459
Gasket
[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
90099-01459 |
— | ||
|
23270
|
23270
23270-70010 Damper Assy, Fuel Pressure Pulsation[09.1980 - 07.1984] 1GEU..GX6#; 5MEU,MTEU..MX61,63 |
23270-70010 |
US $94.72 |
||
|
23270B
|
23270B
90430-17002 Gasket(For Pulsation Damper Hose)[09.1980 - 07.1984] 1GEU..GX6# ID=17.3; 5MEU,MTEU..MX61,63 ID=17.3 |
90430-17002 |
US $3.36 |
||
|
23280
|
23280
23280-41030
Regulator Assy, Fuel Pressure
[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
23280-41030 |
— | ||
|
23280D
|
23280D
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
90401-12097 |
from US $3.08 |
||
|
23280F
|
23280F
90430-12005 Gasket(For Water Hole)[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
90430-12005 |
from US $0.70 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[09.1980 - 07.1984] 1G#..GX6#; 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
23291-41010 |
from US $2.87 |
||
|
23293
|
23293
23293-34020
Gasket, Cold Start Injector
[09.1980 - 07.1984] 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
23293-34020 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-43020 Gasket, Cold Start Injector[09.1980 - 07.1984] 18RGEU..RX63; 5MEU,MTEU..MX61,63 |
23293-43020 |
US $2.77 |
||
|
23299
|
23299
23299-41021 Bracket, Fuel Pressure Regulator[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
23299-41021 |
US $23.59 |
||
|
23300P
|
23300P
23300-43040
Filter, Fuel(For Efi)
[05.1981 - 08.1982] 5MEU..MX63 |
23300-43040 |
— | ||
| replacement | |||||
|
23300P
|
23300P
23300-49045 Filter, Fuel(For Efi)FUEL(FOR EFI) [05.1981 - 08.1982] 5MEU..MX63 |
23300-49045 |
US $101.92 |
||
|
23300P
|
23300P
23300-45060 Filter, Fuel(For Efi)FUEL(FOR EFI) [09.1980 - 05.1981] 5MEU..MX63 |
23300-45060 |
US $81.54 |
||
| replacement | |||||
|
23300P
|
23300P
23300-49045 Filter, Fuel(For Efi)FUEL(FOR EFI) [09.1980 - 05.1981] 5MEU..MX63 |
23300-49045 |
US $101.92 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[09.1980 - 07.1984] 1G#..GX6#; 5MEU,MTEU..MX61,63 |
90430-12005 |
from US $0.70 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[09.1980 - 07.1984] 1G#..GX6#; 5MEU,MTEU..MX61,63 |
90401-12097 |
from US $3.08 |
||
|
23300V
|
23300V
90923-01238 Hose, Fuel(For Fuel Inlet)FUEL(FOR FUEL INLET) [09.1980 - 08.1983] 5MEU,MTEU..MX61,63 |
90923-01238 |
US $97.55 |
||
|
23300W
|
23300W
23264-41010
Bracket, Fuel Filter
[09.1980 - 08.1983] 5MEU,MTEU..MX61,63 |
23264-41010 |
— | ||
|
23801F
|
23801F
90923-01206
Hose, Fuel, No.1
[09.1980 - 02.1983] 5MEU,MTEU..MX61,63 |
90923-01206 |
— | ||
|
23801G
|
23801G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
90401-12097 |
from US $3.08 |
||
|
23801H
|
23801H
90430-12005 Gasket(For Water Hole)[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
90430-12005 |
from US $0.70 |
||
|
23802B
|
23802B
23802-41010 Pipe Sub-Assy, Fuel, No.2[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
23802-41010 |
US $54.31 |
||
|
23802C
|
23802C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
90401-12097 |
from US $3.08 |
||
|
23802D
|
23802D
90430-12005 Gasket(For Water Hole)[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
90430-12005 |
from US $0.70 |
||
|
23807
|
23807
23807-45020 Pipe Sub-Assy, Fuel Delivery[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
23807-45020 |
US $244.61 |
||
|
23807B
|
23807B
90923-01241
Hose, Fuel Delivery Pipe
[09.1980 - 08.1982] 5MEU..MX63 |
90923-01241 |
— | ||
|
23807J
|
23807J
90430-14002 Gasket(For Pulsation Damper Hose)[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
90430-14002 |
US $2.88 |
||
|
23809
|
23809
23849-41021
Support Sub-Assy, Fuel Pipe
[09.1980 - 08.1983] 5MEU,MTEU..MX61,63 |
23849-41021 |
— | ||
|
23809C
|
23809C
90923-05004
Gasket, Fuel Pump(For Cylinder Block Plate Plug)
[09.1980 - 08.1983] 5MEU,MTEU..MX61,63 |
90923-05004 |
— | ||
| replacement | |||||
|
23809C
|
23809C
90923-05020
Gasket, Fuel Pump
[09.1980 - 08.1983] 5MEU,MTEU..MX61,63 |
90923-05020 |
— | ||
|
23809F
|
23809F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.1980 - 07.1984] 1GGEU..GX61; 5MEU,MTEU..MX61,63 |
90467-13001 |
— | ||
| replacement | |||||
|
23809F
|
23809F
96135-51300 Clamp, Hose[09.1980 - 07.1984] 1GGEU..GX61; 5MEU,MTEU..MX61,63 |
96135-51300 |
from US $1.92 |
||
|
23809H
|
23809H
95335-08019
Hose, Fuel Pipe Support To Regulator
[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
95335-08019 |
— | ||
| replacement | |||||
|
23809H
|
23809H
95336-08020
Hose, Fuel Pipe Support To Regulator
[09.1980 - 07.1984] 5MEU,MTEU..MX61,63 |
95336-08020 |
— | ||
|
9020412029
|
9020412029
90204-12029
Washer, Spring(For Steering Wheel Set)
|
90204-12029 |
— | ||
|
9038510002
|
9038510002
90385-10002
Bush(For Brake Traction Actuator Bracket)
|
90385-10002 |
— | ||
|
9046112179
|
9046112179
90461-12179
New Genuine Part
|
90461-12179 |
— | ||
|
9046400170
|
9046400170
90464-00170 New Genuine Part |
90464-00170 |
US $3.93 |
||
| replacement | |||||
|
9046400170
|
9046400170
90464-00331 New Genuine Part |
90464-00331 |
US $3.64 |
||
|
9054105007
|
9054105007
90541-05007 New Genuine Part |
90541-05007 |
US $3.64 |
||
|
9056108002
|
9056108002
90561-08002 Spacer(For Brake Traction Actuator Bracket) |
90561-08002 |
US $4.89 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161140828
|
9161140828
91611-40828 Bolt(For Clutch Release Cylinder Setting) |
91611-40828 |
US $2.77 |
||
| replacement | |||||
|
9161140828
|
9161140828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.76 |
||
|
9161140840
|
9161140840
91611-40840
New Genuine Part
|
91611-40840 |
— | ||
| replacement | |||||
|
9161140840
|
9161140840
91611-60840 BOLT |
91611-60840 |
US $2.08 |
||
|
9161141014
|
9161141014
91611-41014
New Genuine Part
|
91611-41014 |
— | ||
| replacement | |||||
|
9161141014
|
9161141014
91612-B1014 BOLT WWASHER |
91612-B1014 |
US $1.16 |
||
|
9161640616
|
9161640616
91616-40616 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91616-40616 |
US $1.89 |
||
| replacement | |||||
|
9161640616
|
9161640616
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9166640830
|
9166640830
91666-40830
New Genuine Part
|
91666-40830 |
— | ||
| replacement | |||||
|
9166640830
|
9166640830
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.24 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
