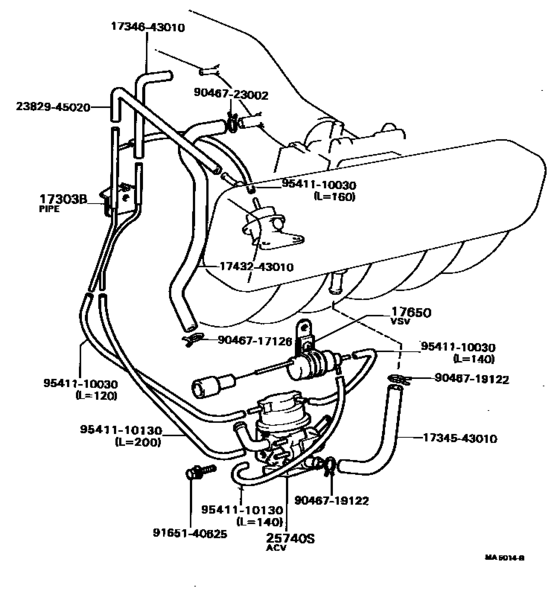

Vacuum Piping ([09.1980 - 08.1982] (8009-8208)5MEU) Diagram Toyota MARK 2
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- MX63
- grade
- GD
- body
- HT
- ENGINE
- 5MEU
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-43020
Pipe Sub-Assy, Air, No.1
[09.1980 - 08.1982] 5MEU..MX63 |
17303-43020 |
— | ||
|
17650
|
17650
89570-22110 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [09.1980 - 08.1982] 5MEU..MX63 |
89570-22110 |
US $253.34 |
||
|
25740S
|
25740S
25740-43010
Valve Assy, Air Control(For Idle Speed Control)
[09.1980 - 08.1982] 5MEU..MX63 |
25740-43010 |
— | ||
|
1734543010
|
1734543010
17345-43010
Hose, Vacuum Limiter, No.2
|
17345-43010 |
— | ||
|
1734643010
|
1734643010
17346-43010
Hose, No.6(for Air Injection System)
|
17346-43010 |
— | ||
|
1743243010
|
1743243010
17432-43010
New Genuine Part
|
17432-43010 |
— | ||
|
2382945020
|
2382945020
23829-45020
Hose, No.1(For Air Pipe)
|
23829-45020 |
— | ||
|
9046717126
|
9046717126
90467-17126 Clip Or Clamp(For Ventilation Hose) |
90467-17126 |
US $1.92 |
||
|
9046719122
|
9046719122
90467-19122
Clip Or Clamp(For Ventilation Hose)
|
90467-19122 |
— | ||
|
9046723002
|
9046723002
90467-23002 Clip Or Clamp(For Ventilation Hose) |
90467-23002 |
US $1.44 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
