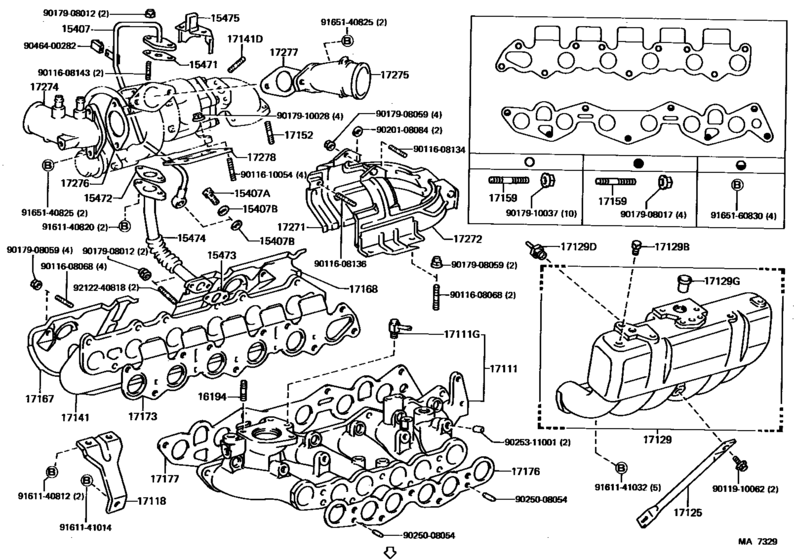

Manifold ([08.1984 - 10.1985] (8408-8510)MTEU) Diagram Toyota MARK 2
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- MX71
- grade
- GD
- body
- HT
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 08.1984
- To
- 10.1985
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-41010 Pipe Sub-Assy, Turbo Oil Inlet[08.1984 - 10.1985] MTEU..MX71 |
15407-41010 |
US $88.82 |
||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1984 - 10.1985] MTEU..MX71 |
90401-12097 |
from US $2.98 |
||
|
15407B
|
15407B
90430-12005 Gasket(For Water Hole)[08.1984 - 10.1985] MTEU..MX71 |
90430-12005 |
from US $0.90 |
||
|
15471
|
15471
15471-41010
Gasket, Turbo Oil Inlet
[08.1984 - 10.1985] MTEU..MX71 |
15471-41010 |
— | ||
|
15472
|
15472
15472-41010
Gasket, Turbo Oil Outlet, No.1
[08.1984 - 10.1985] MTEU..MX71 |
15472-41010 |
— | ||
|
15473
|
15473
15473-41010
Gasket, Oil Hole Cover Plate
[08.1984 - 10.1985] MTEU..MX71 |
15473-41010 |
— | ||
| replacement | |||||
|
15473
|
15473
15473-42010 Gasket, Turbo Oil Outlet, No.2[08.1984 - 10.1985] MTEU..MX71 |
15473-42010 |
US $8 |
||
|
15474
|
15474
15474-41010 Pipe, Turbo Oil Outlet[08.1984 - 10.1985] MTEU..MX71 |
15474-41010 |
US $152.88 |
||
|
15475
|
15475
15475-41020 Deflector, Oil[08.1984 - 10.1985] MTEU..MX71 |
15475-41020 |
US $22.57 |
||
|
16194
|
16194
90116-08025 Bolt, Stud(For Water Outlet Setting)[08.1984 - 10.1985] MTEU..MX71 L=34,S=16&11 |
90116-08025 |
US $1.89 |
||
|
17111
|
17111
17111-41180
Manifold, Intake
[08.1984 - 10.1985] MTEU..MX71 |
17111-41180 |
— | ||
|
17111G
|
17111G
90407-52005
Union(For Intake Manifold Water)
[08.1984 - 10.1985] MTEU..MX71 |
90407-52005 |
— | ||
|
17118
|
17118
17118-41030
Stay, Manifold
[08.1984 - 10.1985] MTEU..MX71 |
17118-41030 |
— | ||
|
17125
|
17125
17125-41021 Stay, Surge Tank, No.1[08.1984 - 10.1985] MTEU..MX71 |
17125-41021 |
US $23 |
||
|
17129
|
17129
17109-41070 Tank, Intake Air Surge[08.1984 - 10.1985] MTEU..MX71 |
17109-41070 |
US $1,275.46 |
||
|
17129B
|
17129B
90072-34107
Plug, W/head Taper Screw, No.1
[08.1984 - 10.1985] MTEU..MX71 |
90072-34107 |
— | ||
| replacement | |||||
|
17129B
|
17129B
90345-51006 Plug, W/head Taper Screw, No.2[08.1984 - 10.1985] MTEU..MX71 |
90345-51006 |
from US $0.96 |
||
|
17129D
|
17129D
90404-53041 Union, No.2[08.1984 - 10.1985] MTEU..MX71 |
90404-53041 |
US $7.72 |
||
|
17129G
|
17129G
25619-45010 Tube, Egr Inlet[08.1984 - 10.1985] MTEU..MX71 |
25619-45010 |
US $9.90 |
||
|
17141
|
17141
17141-41090 Manifold, Exhaust[08.1984 - 10.1985] MTEU..MX71 |
17141-41090 |
US $313.04 |
||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[08.1984 - 09.1984] MTEU..MX71; 1SU..SX70; 2YPU..YX70; 1GEU..GX71 |
90116-08128 |
US $4.16 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[08.1984 - 08.1988] MTEU..MX71 L=46.5,S=14&20; 1SU..SX70 L=46.5,S=14&20; 2Y#,3YPU..YX7# L=46.5,S=14&20; 1GEU,1GG#..GX7# L=46.5,S=14&20 |
90116-10058 |
from US $2.36 |
||
|
17159
|
17159
90116-08020 Bolt, Stud(For Manifold To Cylinder Head)[08.1984 - 10.1985] MTEU..MX71 INTAKE MANIFOLD |
90116-08020 |
US $2.56 |
||
|
17159
|
17159
90116-10024
Bolt, Stud(For Manifold To Cylinder Head)
[08.1984 - 10.1985] MTEU..MX71 EXHAUST MANIFOLD LWR |
90116-10024 |
— | ||
|
17159
|
17159
90116-10025 Bolt, Stud(For Manifold To Cylinder Head)[08.1984 - 10.1985] MTEU..MX71 EXHAUST MANIFOLD UPR |
90116-10025 |
from US $1.54 |
||
|
17167
|
17167
17167-41040 Insulator, Exhaust Manifold Heat, No.1[08.1984 - 10.1985] MTEU..MX71 |
17167-41040 |
US $43.53 |
||
|
17168
|
17168
17168-41010 Insulator, Exhaust Manifold Heat, No.2[08.1984 - 10.1985] MTEU..MX71 |
17168-41010 |
US $37.71 |
||
|
17173
|
17173
17173-41040
Gasket, Exhaust Manifold To Head
[08.1984 - 10.1985] MTEU..MX71 |
17173-41040 |
— | ||
|
17176
|
17176
17176-41030
Gasket, Air Surge Tank To Intake Manifold
[08.1984 - 10.1985] MTEU..MX71 |
17176-41030 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-43030
Gasket, Air Surge Tank To Intake Manifold
[08.1984 - 10.1985] MTEU..MX71 |
17176-43030 |
— | ||
|
17177
|
17177
17177-41040
Gasket, Intake Manifold To Head, No.1
[08.1984 - 10.1985] MTEU..MX71 |
17177-41040 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-43030 Gasket, Intake Manifold To Head, No.1INTAKE MANIFOLD TO HEAD, NO.1 [08.1984 - 10.1985] MTEU..MX71 |
17177-43030 |
US $19.66 |
||
|
17271
|
17271
17271-41010
Insulator, Turbo, No.1
[08.1984 - 10.1985] MTEU..MX71 |
17271-41010 |
— | ||
|
17272
|
17272
17202-41010
Insulator, Turbo, No.2
[08.1984 - 10.1985] MTEU..MX71 |
17202-41010 |
— | ||
|
17274
|
17274
17203-41030
Elbow, Compressor Inlet
[08.1984 - 10.1985] MTEU..MX71 |
17203-41030 |
— | ||
|
17275
|
17275
17275-41010 Elbow, Compressor Outlet[08.1984 - 10.1985] MTEU..MX71 |
17275-41010 |
US $107.74 |
||
|
17276
|
17276
17276-41020 Gasket, Compressor Inlet[08.1984 - 10.1985] MTEU..MX71 |
17276-41020 |
US $7.72 |
||
|
17277
|
17277
17277-41010
Gasket, Compressor Outlet
[08.1984 - 10.1985] MTEU..MX71 |
17277-41010 |
— | ||
|
17278
|
17278
17278-41010
Gasket, Turbo To Exhaust Manifold
[08.1984 - 10.1985] MTEU..MX71 |
17278-41010 |
— | ||
|
9011608068
|
9011608068
90116-08068 New Genuine Part |
90116-08068 |
US $4.48 |
||
|
9011608134
|
9011608134
90116-08134 New Genuine Part |
90116-08134 |
US $3.49 |
||
|
9011608136
|
9011608136
90116-08136 New Genuine Part |
90116-08136 |
US $3.35 |
||
|
9011608143
|
9011608143
90116-08143 New Genuine Part |
90116-08143 |
US $4.95 |
||
|
9011610054
|
9011610054
90116-10054 Bolt, Stud(For Turbocharger) |
90116-10054 |
US $5.39 |
||
| replacement | |||||
|
9011610054
|
9011610054
90116-10094 Bolt, Stud(For Turbine Housing) |
90116-10094 |
US $2.24 |
||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
from US $2.03 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9017910028
|
9017910028
90179-10028 Nut, Exhaust Pipe Set Stud Bolt |
90179-10028 |
from US $2.59 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.28 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.50 |
||
|
9020108084
|
9020108084
90201-08084 New Genuine Part |
90201-08084 |
US $2.88 |
||
|
9025008054
|
9025008054
90250-08054 Pin, Straight |
90250-08054 |
from US $1.92 |
||
|
9025311001
|
9025311001
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11001 |
US $1.92 |
||
|
9046400282
|
9046400282
90464-00282 New Genuine Part |
90464-00282 |
US $8.15 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161141014
|
9161141014
91611-41014
New Genuine Part
|
91611-41014 |
— | ||
| replacement | |||||
|
9161141014
|
9161141014
91612-B1014 BOLT WWASHER |
91612-B1014 |
US $1.16 |
||
|
9161141032
|
9161141032
91611-41032
New Genuine Part
|
91611-41032 |
— | ||
| replacement | |||||
|
9161141032
|
9161141032
91612-61032 New Genuine Part |
91612-61032 |
US $1.75 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.44 |
||
|
9212240818
|
9212240818
92122-40818 Bolt, Stud(For Oil Pan) |
92122-40818 |
US $2.18 |
||
