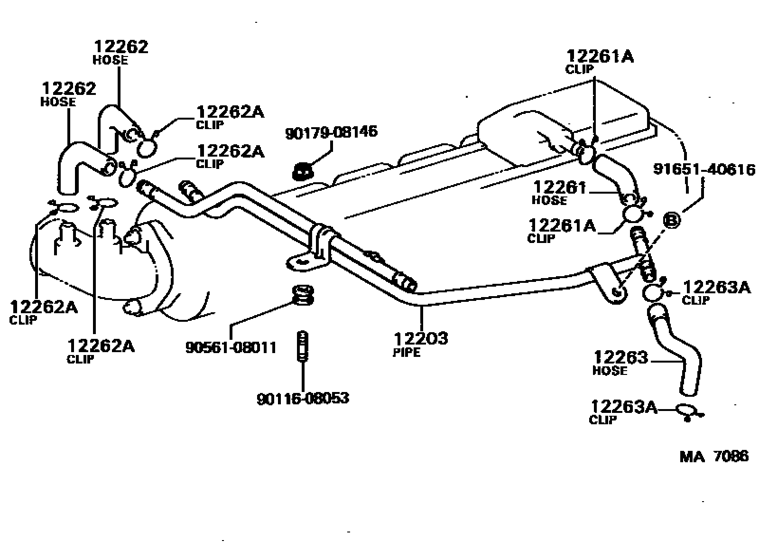

Ventilation Hose ([08.1984 - 10.1985] (8408-8510)MTEU) Diagram Toyota MARK 2
- Year
- 1984 - 1985
- Sales region
- Japan
- Frame
- MX71
- grade
- GD
- body
- HT
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 08.1984
- To
- 10.1985
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12203
|
12203
12203-41030
Pipe Sub-Assy, Ventilation
[08.1984 - 10.1985] MTEU..MX71 |
12203-41030 |
— | ||
|
12261
|
12261
12261-41090
Hose, Ventilation
[08.1984 - 10.1985] MTEU..MX71 |
12261-41090 |
— | ||
|
12261A
|
12261A
90467-20002 Clip(For Ventilation Tube)[08.1984 - 10.1985] MTEU..MX71 ID=20 |
90467-20002 |
from US $1.15 |
||
|
12262
|
12262
12262-41080 Hose, Ventilation, No.2[08.1984 - 10.1985] MTEU..MX71 |
12262-41080 |
US $9.32 |
||
|
12262A
|
12262A
90467-20002 Clip(For Ventilation Tube)[08.1984 - 10.1985] MTEU..MX71 ID=20 |
90467-20002 |
from US $1.15 |
||
|
12263
|
12263
12263-41050
Hose, Ventilation, No.3
[08.1984 - 10.1985] MTEU..MX71 |
12263-41050 |
— | ||
|
12263A
|
12263A
90467-16035 Clip Or Clamp(For Ventilation Hose)[08.1984 - 10.1985] MTEU..MX71 THROTTLE BODY SIDE |
90467-16035 |
from US $0.84 |
||
|
12263A
|
12263A
90467-19122
Clip Or Clamp(For Ventilation Hose)
[08.1984 - 10.1985] MTEU..MX71 PIPE SIDE |
90467-19122 |
— | ||
|
9011608053
|
9011608053
90116-08053 Bolt, Stud(For Oil Filter) |
90116-08053 |
US $2.04 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9056108011
|
9056108011
90561-08011 New Genuine Part |
90561-08011 |
US $3.06 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
