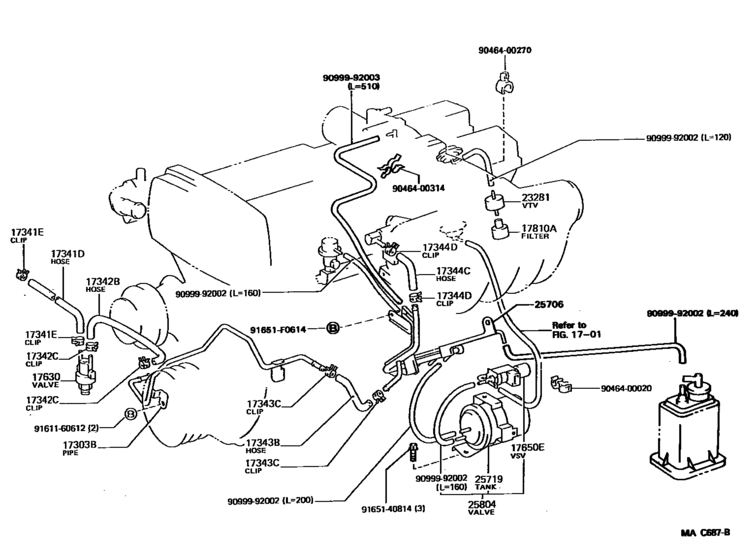

Vacuum Piping ([08.1989 - 02.1993] (8908-9302)7MGE) Diagram Toyota MARK 2
- Year
- 1989 - 1993
- Sales region
- Japan
- Frame
- MX83
- grade
- GDG
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- Model
- MARK 2
- From
- 08.1989
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- MARK 2
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-42020 Pipe Sub-Assy, Air, No.1[08.1989 - 02.1993] 7MGE..MX83 |
17303-42020 |
US $58.39 |
||
|
17341D
|
17341D
90910-05197
Hose, No.1(For Idle-Up)
[08.1989 - 02.1993] 7MGE..MX83 |
90910-05197 |
— | ||
|
17341E
|
17341E
96132-41000 Clip, No.1(For Idle-Up Hose)[08.1989 - 02.1993] 7MGE..MX83 |
96132-41000 |
from US $1.28 |
||
|
17342B
|
17342B
90910-05186
Hose, No.1(For Idle-Up)
[08.1989 - 02.1993] 7MGE..MX83 |
90910-05186 |
— | ||
|
17342C
|
17342C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[08.1989 - 02.1993] 7MGE..MX83 |
96132-30400 |
— | ||
| replacement | |||||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1989 - 02.1993] 7MGE..MX83 |
96132-51000 |
from US $1.48 |
||
|
17343B
|
17343B
90910-05185
Hose, No.3(For Idle-Up)
[08.1989 - 02.1993] 7MGE..MX83 |
90910-05185 |
— | ||
|
17343C
|
17343C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[08.1989 - 02.1993] 7MGE..MX83 |
96132-30400 |
— | ||
| replacement | |||||
|
17343C
|
17343C
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1989 - 02.1993] 7MGE..MX83 |
96132-51000 |
from US $1.48 |
||
|
17344C
|
17344C
90910-05190
Hose, No.4(For Idle-Up)
[08.1989 - 02.1993] 7MGE..MX83 |
90910-05190 |
— | ||
|
17344D
|
17344D
96132-40800 Clip, No.4(For Idle-Up Hose)[08.1989 - 02.1993] 7MGE..MX83 |
96132-40800 |
US $2.18 |
||
|
17630
|
17630
17630-70020
Valve Assy, Air Control
[08.1988 - 02.1993] 7MGE..MX83; 1JZ#..JZX81; 1GG#..GX81 |
17630-70020 |
— | ||
| replacement | |||||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[08.1988 - 02.1993] 7MGE..MX83; 1JZ#..JZX81; 1GG#..GX81 |
17630-16040 |
from US $85.80 |
||
|
17650E
|
17650E
90910-12032 Valve, Vacuum Switching[08.1989 - 02.1993] 7MGE..MX83 |
90910-12032 |
US $62.46 |
||
|
17810A
|
17810A
90925-06006
Filter Assy, Air
[08.1989 - 02.1993] 7MGE..MX83 |
90925-06006 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1989 - 02.1993] 7MGE..MX83 |
90925-01014 |
— | ||
|
25706
|
25706
25706-42030 Pipe Sub-Assy, Vacuum Transmitting, No.1[08.1989 - 02.1993] 7MGE..MX83 |
25706-42030 |
US $65.67 |
||
|
25719
|
25719
25719-42010
Tank, Vacuum Surge
[08.1989 - 02.1993] 7MGE..MX83 |
25719-42010 |
— | ||
|
25804
|
25804
25804-42010 Valve Set, Vacuum Control[08.1989 - 02.1993] 7MGE..MX83 |
25804-42010 |
US $161.62 |
||
|
91651F0614
|
91651F0614
91651-F0614 New Genuine Part |
91651-F0614 |
US $1.46 |
||
|
9046400020
|
9046400020
90464-00020 New Genuine Part |
90464-00020 |
US $3.52 |
||
|
9046400270
|
9046400270
90464-00270 Clamp(For Vacuum Hose) |
90464-00270 |
US $2.62 |
||
|
9046400314
|
9046400314
90464-00314 Clip(For Water By-Pass Hose) |
90464-00314 |
US $2.97 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
