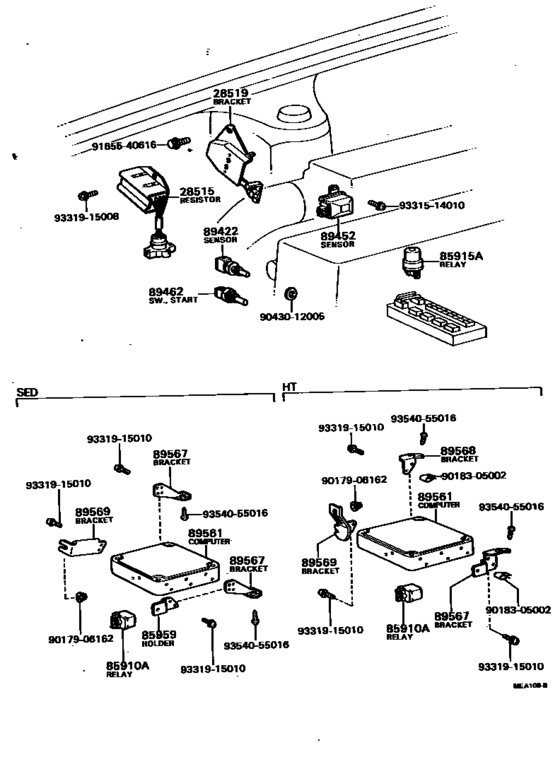

Electronic Fuel Injection System ([09.1980 - 08.1982] (8009-8208)RX63) Diagram Toyota MARK 2
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- RX63
- grade
- GT
- body
- HT
- ENGINE
- 18RGEU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28515-12011 Resistor, SolenoidSOLENOID [09.1980 - 08.1982] 18RGEU..RX63 |
28515-12011 |
US $151.42 |
||
|
28519
|
28519
28519-70010
Bracket, Solenoid Resistor
[09.1980 - 08.1982] 18RGEU,1GEU..GX6#,RX63 |
28519-70010 |
— | ||
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[09.1980 - 07.1984] GX6#,MX61,63,RX63..EFI,TBO |
85910-30050 |
US $84.36 |
||
|
85915A
|
85915A
90987-02004 Relay Assy, Starter[09.1980 - 07.1984] GX6#,MX61,63,RX63 |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85915A
|
85915A
909870200483 [09.1980 - 07.1984] GX6#,MX61,63,RX63 |
909870200483 |
US $53.75 |
||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[09.1980 - 07.1984] GX6#,MX61,63,RX63 |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[09.1980 - 07.1984] GX6#,MX61,63,RX63 |
89422-12010 |
from US $61.10 |
||
|
89452
|
89452
89452-14010 Sensor, Throttle Position (For E.f.i.)[09.1980 - 08.1982] RX63 |
89452-14010 |
US $180.54 |
||
|
89462
|
89462
89462-30011 Switch, Start Injector Time[09.1980 - 07.1984] MX61,63,RX63 |
89462-30011 |
US $139.12 |
||
|
89561
|
89561
89561-14022 Computer Set, Fuel Injection[09.1980 - 08.1982] RX63 |
89561-14022 |
US $857.58 |
||
|
89567
|
89567
89567-22070
Bracket, Fuel Injection Computer
[09.1980 - 08.1983] GX6#,MX61,RX63..HT..(EFI,TBO) |
89567-22070 |
— | ||
|
89568
|
89568
89568-22070
Bracket, Fuel Injection Computer
[09.1980 - 08.1983] GX6#,MX61,RX63..HT..(EFI,TBO) |
89568-22070 |
— | ||
|
89569
|
89569
89569-22070
Bracket, Fuel Injection Computer
[09.1980 - 08.1983] GX6#,MX61,RX63..HT..(EFI,TBO) |
89569-22070 |
— | ||
|
9017906162
|
9017906162
90179-06162
New Genuine Part
|
90179-06162 |
— | ||
| replacement | |||||
|
9017906162
|
9017906162
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9018305002
|
9018305002
90183-05002
New Genuine Part
|
90183-05002 |
— | ||
| replacement | |||||
|
9018305002
|
9018305002
90183-05001
New Genuine Part
|
90183-05001 |
— | ||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.12 |
||
