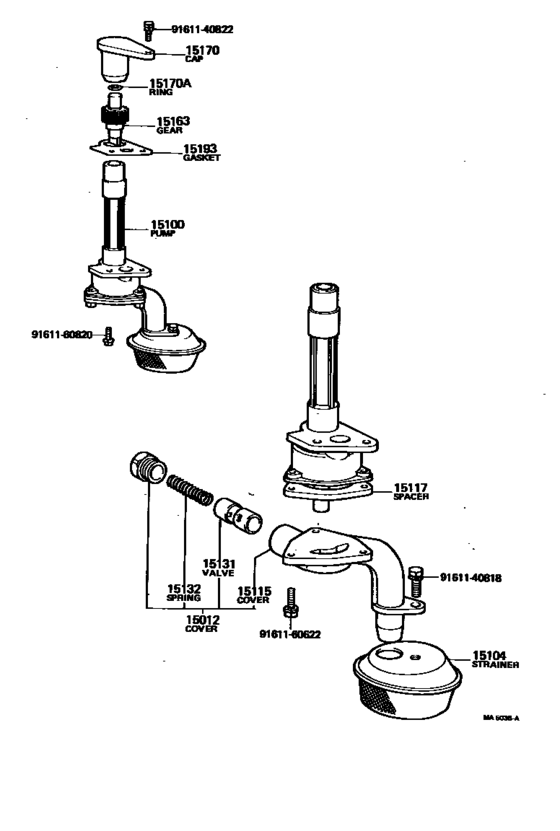

Engine Oil Pump ([09.1980 - 08.1982] (8009-8208)18RGEU) Diagram Toyota MARK 2
- Year
- 1980 - 1982
- Sales region
- Japan
- Frame
- RX63
- grade
- GT
- body
- HT
- ENGINE
- 18RGEU
- TRANSMISSION
- MTM
- Model
- MARK 2
- From
- 09.1980
- To
- 08.1982
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15012
|
15012
15012-36011
Cover Sub-Assy, Oil Pump
[09.1980 - 08.1982] 18RGEU..RX63 |
15012-36011 |
— | ||
|
15100
|
15100
15100-88270
Pump Assy, Oil
[09.1980 - 08.1982] 18RGEU..RX63 |
15100-88270 |
— | ||
|
15104
|
15104
15104-36010
Strainer Sub-Assy, Oil
[09.1980 - 08.1982] 18RGEU..RX63 |
15104-36010 |
— | ||
|
15115
|
15115
15115-36011
Cover, Oil Pump
[09.1980 - 08.1982] 18RGEU..RX63 |
15115-36011 |
— | ||
|
15117
|
15117
15116-88211
Spacer, Oil Pump Body
[09.1980 - 08.1982] 18RGEU..RX63 |
15116-88211 |
— | ||
|
15131
|
15131
15131-41010
Valve, Oil Pump Relief
[09.1980 - 08.1982] 5MEU..MX63; 18RGEU..RX63 |
15131-41010 |
— | ||
|
15132
|
15132
15132-40010 Spring, Oil Pump Relief Valve[09.1980 - 07.1984] 1G#..GX6#; 18RGEU..RX63; 1SU,2YPU..SX60; 13T#..TX6# |
15132-40010 |
from US $2.96 |
||
|
15163
|
15163
15163-88210
Gear, Oil Pump Drive Shaft
[09.1980 - 08.1982] 18RGEU..RX63 |
15163-88210 |
— | ||
|
15170
|
15170
15171-88210
Cap, Oil Pump Drive Shaft
[09.1980 - 08.1982] 18RGEU..RX63 |
15171-88210 |
— | ||
|
15170A
|
15170A
90072-30111
Ring, O, Oil Pump Drive Shaft
[09.1980 - 08.1982] 18RGEU..RX63 |
90072-30111 |
— | ||
|
15193
|
15193
15193-33011
Gasket, Oil Pump
[09.1980 - 08.1982] 18RGEU..RX63 |
15193-33011 |
— | ||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
|
9161140822
|
9161140822
91611-40822
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40822 |
— | ||
| replacement | |||||
|
9161140822
|
9161140822
91611-60822 Bolt |
91611-60822 |
from US $1.50 |
||
|
9161160622
|
9161160622
91611-60622 Bolt, W/washer (For Transmission Oil Pump Cover) |
91611-60622 |
US $2.62 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
