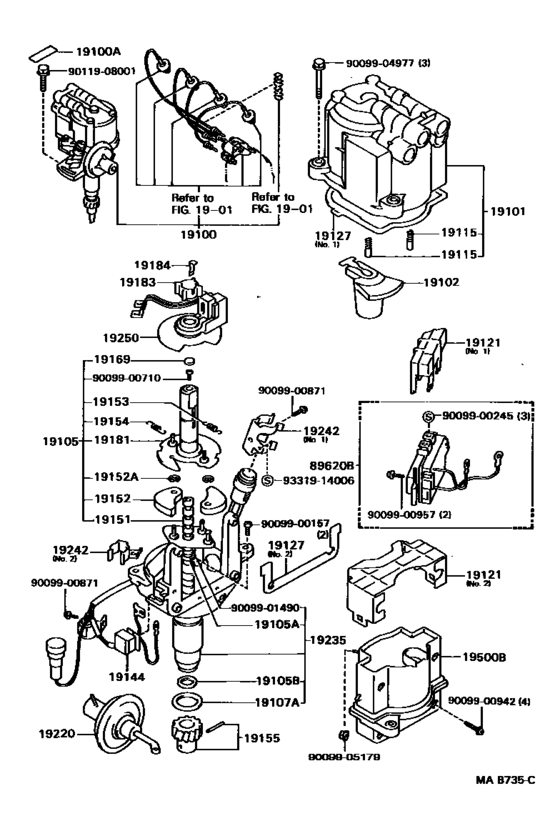

Distributor ([12.1988 - 02.1993] (8812-9302)2YJ) Diagram Toyota MARK 2
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- YX76
- grade
- DX
- body
- V
- ENGINE
- 2YJ
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 12.1988
- To
- 02.1993
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19030-71060
Distributor Assy
[12.1988 - 02.1993] 2YJ..YX76 |
19030-71060 |
— | ||
|
19100A
|
19100A
90919-24004
Tape, Sealing
[10.1988 - 12.1993] 1GFE..GX70; 2YJ,3YE..YX7# |
90919-24004 |
— | ||
| replacement | |||||
|
19100A
|
19100A
90919-24003
Tape, Sealing
[10.1988 - 12.1993] 1GFE..GX70; 2YJ,3YE..YX7# |
90919-24003 |
— | ||
|
19101
|
19101
19101-71010 Cap Sub-Assy, Distributor[12.1988 - 04.1997] 2YJ,3YE..YX7# |
19101-71010 |
US $134.68 |
||
|
19102
|
19102
19102-16040 Rotor Sub-Assy, Distributor[12.1988 - 02.1993] 2YJ..YX76 |
19102-16040 |
from US $8.91 |
||
|
19105
|
19105
19105-71060 Governor Sub-Assy[12.1988 - 02.1993] 2YJ..YX76 |
19105-71060 |
US $165.98 |
||
|
19105A
|
19105A
90099-01486
Washer(For Governor Shaft Thrust)
[12.1988 - 02.1993] 2YJ..YX76 厚さ＝０．３ |
90099-01486 |
— | ||
|
19105A
|
19105A
90099-01487
Washer(For Governor Shaft Thrust)
[12.1988 - 02.1993] 2YJ..YX76 厚さ＝０．４ |
90099-01487 |
— | ||
|
19105A
|
19105A
90099-01488
Washer(For Governor Shaft Thrust)
[12.1988 - 02.1993] 2YJ..YX76 厚さ＝０．６ |
90099-01488 |
— | ||
|
19105A
|
19105A
90099-01489
Washer(For Governor Shaft Thrust)
[12.1988 - 02.1993] 2YJ..YX76 厚さ＝０．５ |
90099-01489 |
— | ||
|
19105B
|
19105B
90099-01429
Washer, No.2(For Governor Shaft Thrust)
[12.1988 - 02.1993] 2YJ..YX76 |
90099-01429 |
— | ||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[12.1988 - 03.1991] 2YJ..YX76 |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[12.1988 - 03.1991] 2YJ..YX76 |
90099-14090 |
from US $2.80 |
||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[03.1991 - 04.1997] 2YJ,3YE..YX7# |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[12.1988 - 04.1997] 2YJ,3YE..YX7# |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-63010
Cover, Dust Proof
[12.1988 - 02.1993] 2YJ..YX76 ＮＯ．１ |
19121-63010 |
— | ||
|
19121
|
19121
19121-63040
Cover, Dust Proof
[12.1988 - 04.1997] 2YJ..YX76 ＮＯ．２; 3YE..YX78 |
19121-63040 |
— | ||
|
19127
|
19127
19127-63010 Packing, Dust Proof[12.1988 - 04.1997] 2YJ,3YE..YX7# ＮＯ．１ |
19127-63010 |
from US $7.34 |
||
|
19127
|
19127
19127-63020 Packing, Dust Proof[12.1988 - 04.1997] 2YJ,3YE..YX7# ＮＯ．２ |
19127-63020 |
US $4.37 |
||
|
19144
|
19144
19144-71061
Lead, Distributor Breaker
[12.1988 - 02.1993] 2YJ..YX76 |
19144-71061 |
— | ||
|
19151
|
19151
19151-71010 Shaft, Governor[12.1988 - 02.1993] 2YJ..YX76 |
19151-71010 |
US $39.46 |
||
|
19152
|
19152
19152-63010
Weight, Governor
[12.1988 - 02.1993] 2YJ..YX76 |
19152-63010 |
— | ||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[12.1988 - 02.1993] 2YJ..YX76 |
90099-07122 |
— | ||
|
19153
|
19153
19153-71060 Spring, Governor, A[12.1988 - 02.1993] 2YJ..YX76 |
19153-71060 |
US $5.39 |
||
|
19154
|
19154
19153-71060 Spring, Governor, A[12.1988 - 02.1993] 2YJ..YX76 |
19153-71060 |
US $5.39 |
||
|
19155
|
19155
19195-71010
Gear, Spiral, Distributor
[12.1988 - 03.1996] 2YJ,3YE..YX7# |
19195-71010 |
— | ||
| replacement | |||||
|
19155
|
19155
19195-72090 Gear, Spiral, Distributor[12.1988 - 03.1996] 2YJ,3YE..YX7# |
19195-72090 |
US $43.68 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[12.1988 - 02.1993] 2YJ..YX76 |
19169-63011 |
— | ||
|
19181
|
19181
19181-71060
Rotor, Distributor, Signal
[12.1988 - 03.1991] 2YJ..YX76 |
19181-71060 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-73020
Rotor, Distributor, Signal
[12.1988 - 03.1991] 2YJ..YX76 |
19181-73020 |
— | ||
|
19181
|
19181
19181-72011
Rotor, Distributor, Signal
[03.1991 - 02.1993] 2YJ..YX76 |
19181-72011 |
— | ||
|
19183
|
19183
19183-63030
Rotor, Signal
[12.1988 - 02.1993] 2YJ..YX76 |
19183-63030 |
— | ||
|
19184
|
19184
19184-63010
Spring, Rotor Set
[12.1988 - 02.1993] 2YJ..YX76 |
19184-63010 |
— | ||
|
19220
|
19220
19220-71060
Advancer Assy, Vacuum, Distributor
[12.1988 - 02.1993] 2YJ..YX76 |
19220-71060 |
— | ||
|
19235
|
19235
19235-71010 Housing, Distributor[12.1988 - 02.1993] 2YJ..YX76 |
19235-71010 |
US $189.28 |
||
|
19242
|
19242
19242-71010 Clamp, Cord[12.1988 - 02.1993] 2YJ..YX76 ＮＯ．１ |
19242-71010 |
US $10.77 |
||
|
19242
|
19242
19242-71061 Clamp, Cord[12.1988 - 02.1993] 2YJ..YX76 ＮＯ．２ |
19242-71061 |
US $4.66 |
||
|
19250
|
19250
19251-63011
Generator Assy, Signal
[12.1988 - 02.1993] 2YJ..YX76 |
19251-63011 |
— | ||
|
19500B
|
19500B
90919-02139 Coil Assy, Ignition[12.1988 - 09.1995] 2YJ..YX76 |
90919-02139 |
US $169.48 |
||
|
89620B
|
89620B
89620-32020 Igniter[12.1988 - 02.1993] YX76 |
89620-32020 |
US $285.38 |
||
|
9009900157
|
9009900157
90099-00157
Bush, Commutator End Frame
|
90099-00157 |
— | ||
|
9009900245
|
9009900245
90099-00245
New Genuine Part
|
90099-00245 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900942
|
9009900942
90099-00942 New Genuine Part |
90099-00942 |
US $1.75 |
||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009901490
|
9009901490
90099-01490
New Genuine Part
|
90099-01490 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
|
9011908001
|
9011908001
90119-08001 New Genuine Part |
90119-08001 |
US $2.56 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
