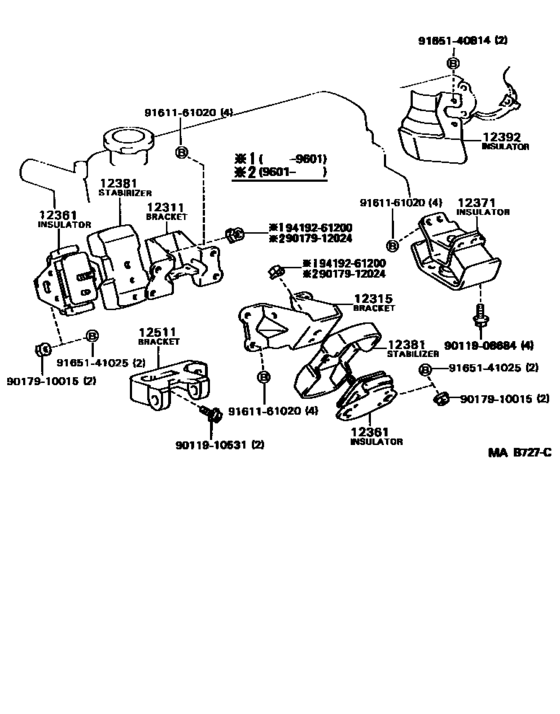

Mounting ([12.1988 - 02.1993] (8812-9302)2YJ ; (9302- )3YE) Diagram Toyota MARK 2
- Year
- 1988 - 1993
- Sales region
- Japan
- Frame
- YX76
- grade
- DX
- body
- V
- ENGINE
- 2YJ
- TRANSMISSION
- MTM
- Model
- MARK 2 V,WG
- From
- 12.1988
- To
- 02.1993
- Gear Shift Type
- 5F
- Vehicle Model
- MARK 2 V,WG
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-71010 Bracket, Engine Mounting, Front No.1 Rh[12.1988 - 04.1997] 2YJ,3YE..YX7# |
12311-71010 |
US $34.51 |
||
|
12315
|
12315
12315-71010 Bracket, Engine Mounting, Front No.1 Lh[12.1988 - 04.1997] 2YJ,3YE..YX7# |
12315-71010 |
from US $40.48 |
||
|
12361
|
12361
12361-71020 Insulator, Engine Mounting, Front[12.1988 - 01.1996] 2YJ,3YE..YX7# |
12361-71020 |
US $58.18 |
||
|
12371
|
12371
12371-34030 Insulator, Engine Mounting, Rear No.1[12.1988 - 04.1997] 2L..LX76; 2YJ,3YE..YX7# |
12371-34030 |
from US $61.59 |
||
|
12381
|
12381
12381-71030 Stabilizer, Engine Mounting[12.1988 - 04.1997] 2YJ,3YE..YX7# |
12381-71030 |
US $24.17 |
||
|
12392
|
12392
12391-72010 Insulator, Engine Mounting Heat, Front Lh[12.1988 - 04.1997] 2YJ,3YE..YX7# |
12391-72010 |
US $27.43 |
||
|
12511
|
12511
12511-71010 Bracket, Alternator, No.1[12.1988 - 02.1993] 2YJ..YX76 |
12511-71010 |
US $45.86 |
||
|
9011908684
|
9011908684
90119-08684 New Genuine Part |
90119-08684 |
US $1.92 |
||
|
9011910531
|
9011910531
90119-10531 BOLT WWASHER |
90119-10531 |
from US $1.83 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.17 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165141025
|
9165141025
91651-41025
Bolt(For Transaxle Case & Engine Setting)
|
91651-41025 |
— | ||
| replacement | |||||
|
9165141025
|
9165141025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9419261200
|
9419261200
94192-61200 New Genuine Part |
94192-61200 |
US $2.48 |
||
| replacement | |||||
|
9419261200
|
9419261200
90179-12024 NUT |
90179-12024 |
from US $1.17 |
||
