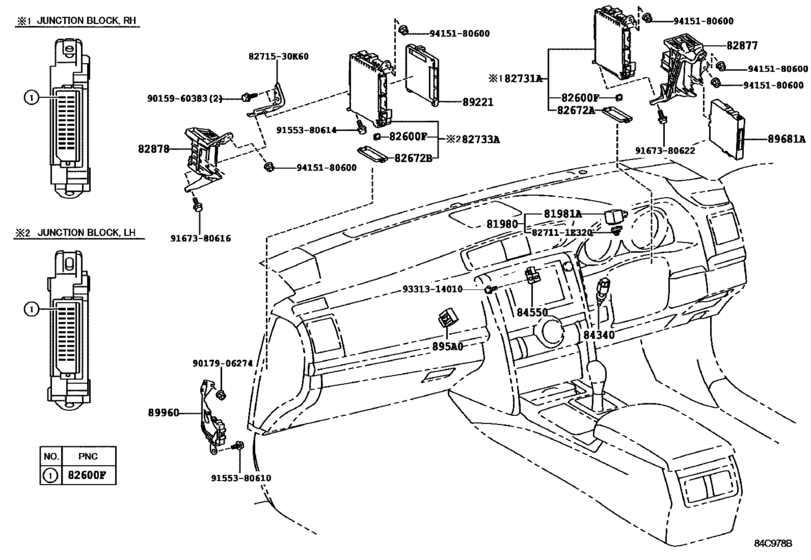

Switch & Relay & Computer ([12.2011 - ] COWL (1112- )) Diagram Toyota MARK X
- Year
- 2011 - 2016
- Sales region
- General
- Frame
- GRX130
- grade
- 250G
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- MARK X
- From
- 12.2011
- To
- 11.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- MARK X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-46020 Relay Assy, Stop Lamp Control[12.2011 - 08.2012] GRX130 |
895A0-46020 |
US $74.78 |
||
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[12.2011 - 08.2012] GRX130 |
81980-30170 |
from US $52.59 |
||
|
81981A
|
81981A
81980-50030 Flasher Assy, Turn Signal[12.2011 - 08.2012] GRX130 |
81980-50030 |
from US $52.79 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[12.2011 - 08.2012] GRX130 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[12.2011 - 08.2012] GRX130 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[12.2011 - 08.2012] GRX130 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[12.2011 - 08.2012] GRX130 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[12.2011 - 08.2012] GRX130 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[12.2011 - 08.2012] GRX130 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[12.2011 - 08.2012] GRX130 30A,MINI FUSE |
90982-09025 |
from US $0.88 |
||
|
82672A
|
82672A
82672-22380 Cover, Junction BlockJUNCTION BLOCK [12.2011 - 08.2012] GRX130 |
82672-22380 |
US $3.49 |
||
|
82672B
|
82672B
82672-22390 Cover, Junction BlockJUNCTION BLOCK [12.2011 - 08.2012] GRX130 |
82672-22390 |
US $3.49 |
||
|
82731A
|
82731A
82730-22260 Block, Cowl Side Junction, RhCOWL SIDE JUNCTION, RH [12.2011 - 08.2012] GRX130 |
82730-22260 |
US $154.34 |
||
|
82733A
|
82733A
82730-22270 Block, Cowl Side Junction, LhCOWL SIDE JUNCTION, LH [12.2011 - 08.2012] GRX130 |
82730-22270 |
US $154.34 |
||
|
82877
|
82877
82877-30010 Box, Computer Integration, Rh[12.2011 - 08.2012] GRX130 |
82877-30010 |
US $56.61 |
||
|
82878
|
82878
82878-30010
Box, Computer Integration, Lh
[12.2011 - 08.2012] GRX130 |
82878-30010 |
— | ||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[12.2011 - 08.2012] GRX130 |
84340-30110 |
from US $28.12 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[12.2011 - 08.2012] GRX130 |
84550-16060 |
from US $17.48 |
||
|
89221
|
89221
89220-22020 Computer, Multiplex Network BodyMULTIPLEX NETWORK BODY [12.2011 - 08.2012] GRX130 |
89220-22020 |
US $502.32 |
||
|
89221
|
89221
89220-22030 Computer, Multiplex Network BodyMULTIPLEX NETWORK BODY [12.2011 - 08.2012] GRX130 S PACKAGE |
89220-22030 |
US $502.32 |
||
|
89681A
|
89681A
89681-22040 Computer, Power Management ControlPOWER MANAGEMENT CONTROL [12.2011 - 08.2012] GRX130 |
89681-22040 |
US $806.62 |
||
|
89681A
|
89681A
89681-60060 Computer, Power Management Control[08.2012 -] GRX130 |
89681-60060 |
US $671.22 |
||
|
89960
|
89960
89960-22090 Computer Assy, Headlamp LevelingHEADLAMP LEVELING [12.2011 - 08.2012] GRX130 |
89960-22090 |
US $358.18 |
||
|
89960
|
89960
89960-22150 Computer Assy, Headlamp Leveling[08.2012 -] GRX130 |
89960-22150 |
US $270.82 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
8271530K60
|
8271530K60
82715-30K60
Bracket,wiring Harness Clamp
|
82715-30K60 |
— | ||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.44 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $0.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380622
|
9167380622
91673-80622 BOLT FLANGE |
91673-80622 |
from US $0.68 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
