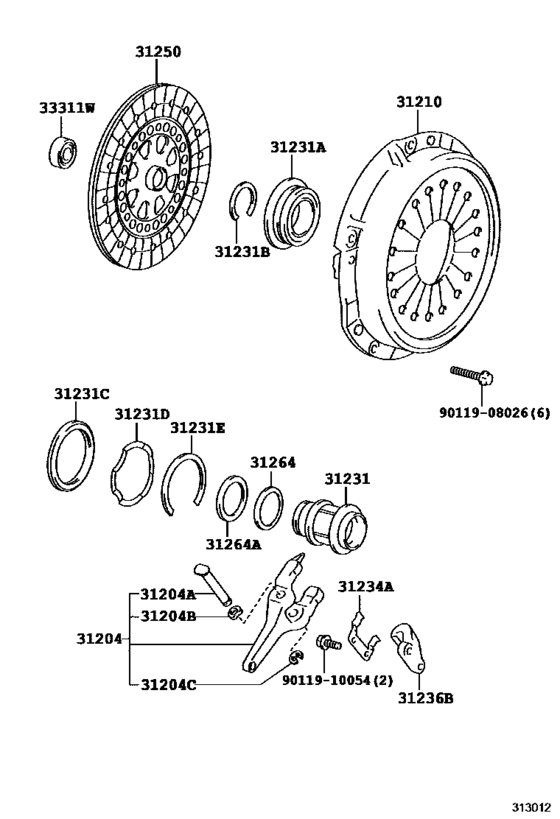

Clutch & Release Fork ([05.2015 - 10.2015] (1505-1510)350S) Diagram Toyota MARK X
- Year
- 2009 - 2016
- Sales region
- Japan
- Frame
- GRX133
- grade
- 350S
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- Model
- MARK X
- From
- 10.2009
- To
- 11.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- MARK X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31204
|
31204
31204-53010 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
31204-53010 |
US $69.74 |
||
|
31204A
|
31204A
90249-12044 Pin(For Clutch Release Fork)[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
90249-12044 |
US $9.26 |
||
|
31204B
|
31204B
90206-80001 Washer, Wave(For Clutch Release Fork)[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
90206-80001 |
US $0.79 |
||
|
31204C
|
31204C
96160-00900 Ring, E(For Injection Pump Lever)[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
96160-00900 |
from US $1.44 |
||
|
31210
|
31210
31210-22180 Cover Assy, Clutch[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
31210-22180 |
US $193.65 |
||
|
31231
|
31231
31231-53040 Hub, Clutch Release BearingCLUTCH RELEASE BEARING [05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
31231-53040 |
US $74.26 |
||
|
31231A
|
31231A
90903-63001 Bearing, Ball(For Clutch Release Hub)[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
90903-63001 |
US $50.16 |
||
|
31231B
|
31231B
96152-00500 Ring, Snap(For Clutch Release Hub)[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
96152-00500 |
from US $2.59 |
||
|
31231C
|
31231C
90560-79001 Washer, Plate(For Clutch Release Bearing)[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
90560-79001 |
from US $2.34 |
||
|
31231D
|
31231D
90206-12006 Washer, Wave(For Clutch Release Bearing)[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
90206-12006 |
US $4.16 |
||
|
31231E
|
31231E
90520-75001 Ring, Shaft Snap(For Clutch Release Bearing)[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
90520-75001 |
from US $2.89 |
||
|
31234A
|
31234A
31234-14020 Spring, Release Fork Support[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
31234-14020 |
from US $3.04 |
||
|
31236B
|
31236B
31236-14030 Support, Release Fork[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
31236-14030 |
US $30.40 |
||
|
31250
|
31250
31250-22380 Disc Assy, Clutch[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
31250-22380 |
US $177.63 |
||
|
31264
|
31264
31264-14060 Spring, Clutch Thrust Cone[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
31264-14060 |
US $4.48 |
||
|
31264A
|
31264A
90560-50001 Washer, Plate(For Clutch Thrust Cone Spring)[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
90560-50001 |
from US $5.92 |
||
|
33311W
|
33311W
90363-12001
Bearing (For Input Shaft)
[05.2015 - 10.2015] GRX133..350S 特設パッケージ−ＧＲＭＮ ６ＭＴ |
90363-12001 |
— | ||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
|
9011910054
|
9011910054
90119-10054 BOLT |
90119-10054 |
US $2.08 |
||
