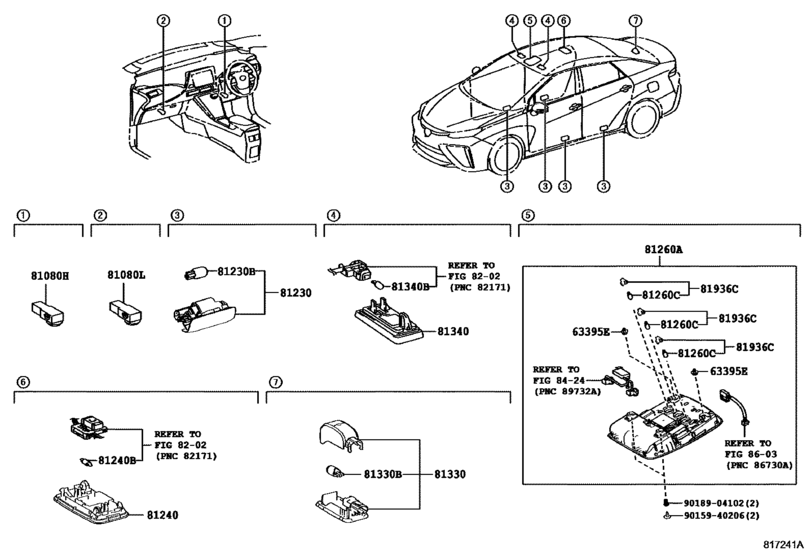

Interior Lamp ([12.2014 - ] (1412- )) Diagram Toyota MIRAI
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- JPD10
- body
- SED
- ENGINE
- 4JM
- From
- 12.2014
- No.of Doors
- 4D
- Vehicle Model
- MIRAI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63395E
|
63395E
90467-09240 Clip (For Roof Side, Inner Upper Garnish)[12.2014 -] JPD10 |
90467-09240 |
from US $0.84 |
||
|
81080H
|
81080H
81080-62010 Lamp Assy, Interior Illumination, No.1 Rh[12.2014 -] JPD10 |
81080-62010 |
US $14.50 |
||
|
81080L
|
81080L
81080-62010 Lamp Assy, Interior Illumination, No.1 Rh[12.2014 -] JPD10 |
81080-62010 |
US $14.50 |
||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[12.2014 -] JPD10 |
81230-30200 |
from US $13.53 |
||
|
81230B
|
81230B
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[12.2014 -] JPD10 １２Ｖ ５Ｗ |
90981-12010 |
from US $1.76 |
||
|
81240
|
81240
81240-60060-A8 Lamp Assy, Room, No.1[12.2014 -] JPD10 WARM WHITE,TRIM0#,8# |
81240-60060-A8 |
US $42.81 |
||
|
81240B
|
81240B
90981-14011 Bulb, Room Lamp, No.1[12.2014 -] JPD10 １２Ｖ ８Ｗ |
90981-14011 |
from US $1.91 |
||
|
81260A
|
81260A
81260-62050-A0 Lamp Assy, Map[12.2014 -] JPD10 WARM WHITE,TRIM0#,8# |
81260-62050-A0 |
US $540.18 |
||
|
81260C
|
81260C
90981-11062 Bulb, Room Lamp, No.1[12.2014 -] JPD10 １２Ｖ ８Ｗ |
90981-11062 |
from US $2.57 |
||
|
81330
|
81330
81250-30210 Lamp Assy, Room, No.2[12.2014 -] JPD10 |
81250-30210 |
from US $19 |
||
|
81330B
|
81330B
99132-12050 Bulb (12V 5W)[12.2014 -] JPD10 １２Ｖ ５Ｗ |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81330B
|
81330B
90080-81053 Bulb(For Clearance Lamp)[12.2014 -] JPD10 １２Ｖ ５Ｗ |
90080-81053 |
US $1.05 |
||
|
81340
|
81340
81340-30110 Lamp Assy, Vanity[12.2014 -] JPD10 |
81340-30110 |
from US $22.41 |
||
|
81340B
|
81340B
90981-11062 Bulb, Room Lamp, No.1[12.2014 -] JPD10 １２Ｖ ８Ｗ |
90981-11062 |
from US $2.57 |
||
|
81936C
|
81936C
81936-12150 Bulb(For Map Lamp)[12.2014 -] JPD10 |
81936-12150 |
US $9.12 |
||
|
9015940206
|
9015940206
90159-40206 SCREW, W/WASHER TAPP |
90159-40206 |
US $1.12 |
||
|
9018904102
|
9018904102
90189-04102 GROMMET |
90189-04102 |
from US $1.15 |
||
