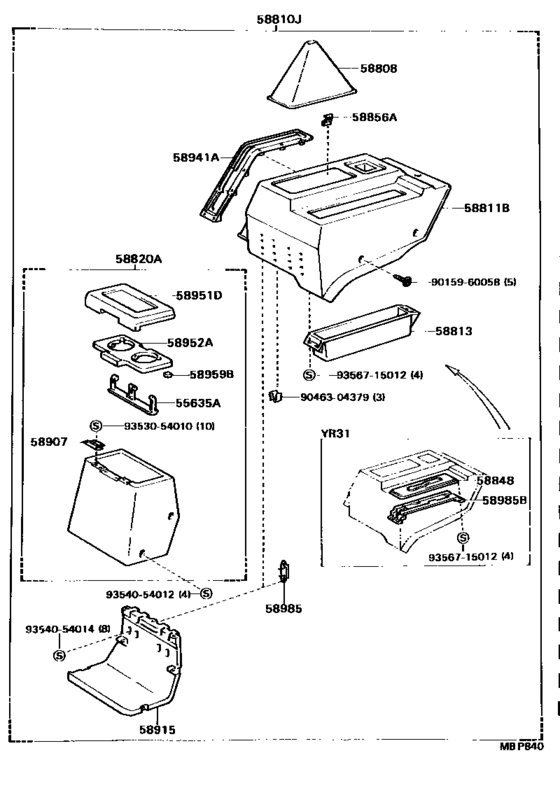

Console Box & Bracket ([08.1988 - ] (8808- )ARL) Diagram Toyota MODEL-F
- Year
- 1988 - 1990
- Sales region
- General
- Frame
- YR22
- grade
- DLX
- Roof
- MRF
- ENGINE
- 4YEC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58808
|
58808
58808-87002-03
Cover Sub-Assy, Shifting Hole
[08.1988 - 01.1990] YR2#,31..5F SHADOW GRAY,TRIM1# |
58808-87002-03 |
— | ||
|
58810J
|
58810J
58810-87022-03 Box Assy, ConsoleCONSOLE [08.1988 - 11.1988] YR2#..5F..DLX SHADOW GRAY,TRIM1#; YR22..5F..GL W(DUAL AIR CONDITIONER & ICE COOL BOX),SHADOW GRAY,SHADOW GRAY,TRIM1# |
58810-87022-03 |
US $246.06 |
||
|
58810J
|
58810J
58810-87040-03 Box Assy, ConsoleCONSOLE [11.1988 - 01.1990] YR2#..5F..DLX GRAY,TRIM1#; YR22..5F..GL W(DUAL AIR CONDITIONER & ICE COOL BOX),GRAY,TRIM1# |
58810-87040-03 |
US $246.06 |
||
|
58811B
|
58811B
58811-87011-03 Box, ConsoleCONSOLE [08.1988 - 01.1990] YR2#..DLX SHADOW GRAY,TRIM1#; YR2#..MRF..GL..ARL W(DUAL AIR CONDITIONER & ICE COOL BOX),SHADOW GRAY,TRIM1# |
58811-87011-03 |
US $202.38 |
||
|
58813
|
58813
58813-87001-03 Box, Console, UpperCONSOLE, UPPER [08.1988 - 01.1990] YR2#..MRF SHADOW GRAY,TRIM1# |
58813-87001-03 |
US $77.17 |
||
|
58856A
|
58856A
58856-28010 Holder, Console Box[08.1988 - 01.1990] YR2#,31..5F..ARL |
58856-28010 |
US $5.24 |
||
|
58941A
|
58941A
58941-87010-01
Cover, Parking Brake Hole
[08.1988 - 01.1990] YR2#,31..ARL BLACK,TRIM1#,4# |
58941-87010-01 |
— | ||
|
9015960058
|
9015960058
90159-60058 New Genuine Part |
90159-60058 |
US $1.46 |
||
|
9046304379
|
9046304379
90463-04379 New Genuine Part |
90463-04379 |
US $3.06 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $1.12 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.77 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $1.05 |
||
|
9356715012
|
9356715012
93567-15012
New Genuine Part
|
93567-15012 |
— | ||
| replacement | |||||
|
9356715012
|
9356715012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
