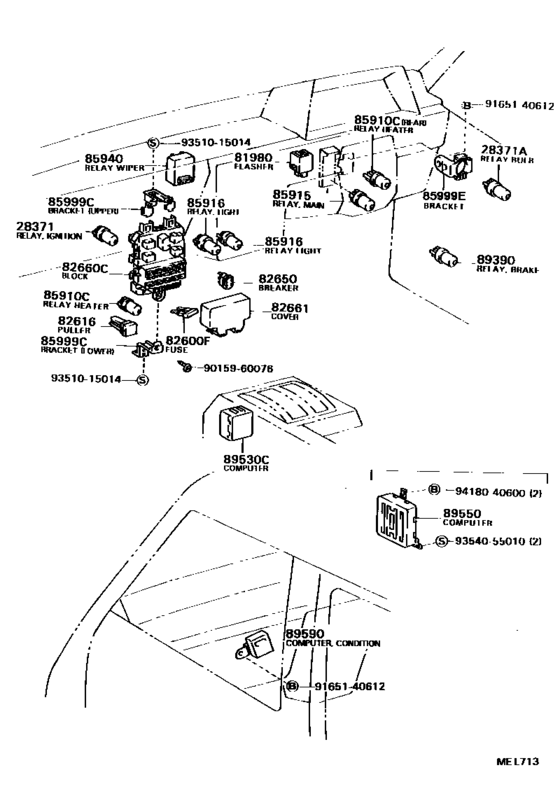

Switch & Relay & Computer ([08.1988 - ] (8808- )) Diagram Toyota MODEL-F
- Year
- 1988 - 1990
- Sales region
- General
- Frame
- YR22
- grade
- DLX
- Roof
- MRF
- ENGINE
- 4YEC
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02004 Relay Assy, Starter[08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
28371
|
28371
909870200483 [08.1988 - 01.1990] 3Y#,4YEC..YR2#,31 |
909870200483 |
US $53.75 |
||
|
28371A
|
28371A
90987-02004 Relay Assy, Starter[08.1988 - 11.1988] 3Y#,4YEC..YR2#,31 |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
28371A
|
28371A
909870200483 [08.1988 - 11.1988] 3Y#,4YEC..YR2#,31 |
909870200483 |
US $53.75 |
||
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[08.1988 - 01.1990] YR2#,31 |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[08.1988 - 01.1990] YR2#,31 |
81980-32010 |
from US $54.42 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1988 - 01.1990] YR22..DLX 15A; YR22..HRF 15A; YR21..GL..ARL 15A; YR22..MRF..GL 15A; YR21..DLX 15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1988 - 01.1990] YR2#,31 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1988 - 01.1990] YR2#,31 7.5A |
90982-09005 |
from US $1.03 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[08.1988 - 01.1990] YR2#,31..ARL 30A |
82650-20011 |
US $14.08 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[08.1988 - 01.1990] YR22..DLX 20A; YR21..GL..ARL 20A; YR22..MRF..GL 20A; YR21..DLX 20A; YR21..GEN;YR22..HRF 20A |
82650-35010 |
US $18 |
||
|
82660C
|
82660C
82660-28011 Block Assy, Relay, Cowl Side[08.1988 - 01.1990] YR2#,31 |
82660-28011 |
US $171.81 |
||
|
82661
|
82661
82661-28030 Cover, Relay Block, No.1[08.1988 - 01.1990] YR2#,31 |
82661-28030 |
US $10.63 |
||
|
85910C
|
85910C
88630-87010
Relay Assy (For Heater Blower Motor)
[08.1988 - 01.1990] YR2#,31..ARL FRONT |
88630-87010 |
— | ||
|
85910C
|
85910C
90987-02004 Relay Assy, Starter[08.1988 - 01.1990] YR2#,31..ARL REAR |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
85910C
|
85910C
909870200483 [08.1988 - 01.1990] YR2#,31..ARL REAR |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[08.1988 - 01.1990] YR2#,31 |
90987-01003 |
from US $35.26 |
||
|
85940
|
85940
85940-28010
Relay Assy, Windshield Wiper
[08.1988 - 01.1990] YR2#,31 |
85940-28010 |
— | ||
|
85999C
|
85999C
85999-28010 Bracket, Relay, No.3[08.1988 - 01.1990] YR2#,31 UPPER |
85999-28010 |
US $34.80 |
||
|
85999C
|
85999C
85999-28021 Bracket, Relay, No.3[08.1988 - 01.1990] YR2#,31 LOWER |
85999-28021 |
US $4.37 |
||
|
85999E
|
85999E
85999-12050
Bracket, Main Relay
[08.1988 - 11.1988] YR2#,31 |
85999-12050 |
— | ||
|
89390
|
89390
90987-02004 Relay Assy, Starter[08.1988 - 01.1990] YR2#,31..ARL |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
89390
|
89390
909870200483 [08.1988 - 01.1990] YR2#,31..ARL |
909870200483 |
US $53.75 |
||
|
89590
|
89590
89590-28020 Computer Assy, Condition Indicator[08.1988 - 01.1990] YR2#,31..ARL |
89590-28020 |
US $77.17 |
||
|
9015960076
|
9015960076
90159-60076 SCREW, W/WASHER TAPP |
90159-60076 |
US $3.52 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9351015014
|
9351015014
93510-15014
New Genuine Part
|
93510-15014 |
— | ||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
US $1.12 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.44 |
||
