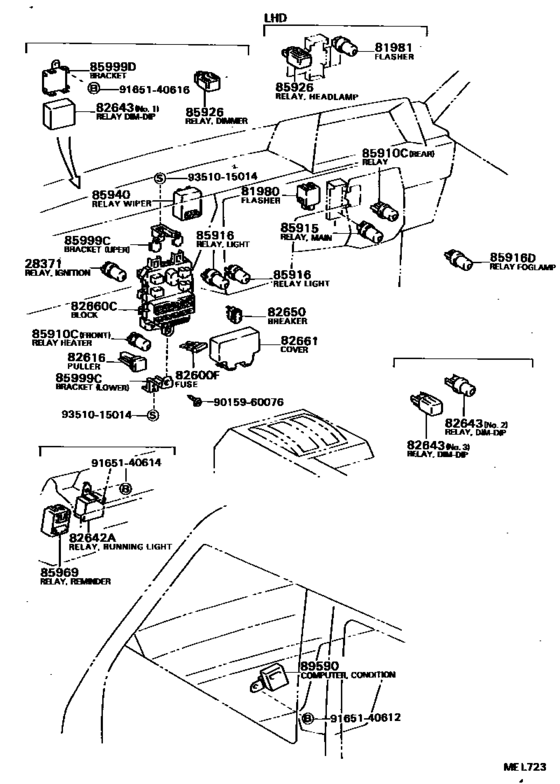

Switch & Relay & Computer ([08.1988 - ] (8808- )) Diagram Toyota MODEL-F
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- YR31
- grade
- DLX
- Roof
- MRF
- ENGINE
- 4YEC
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02004 Relay Assy, Starter[08.1988 - 01.1990] 3Y,4YEC..YR2#,31 |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
28371
|
28371
909870200483 [08.1988 - 01.1990] 3Y,4YEC..YR2#,31 |
909870200483 |
US $53.75 |
||
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[08.1988 - 01.1990] YR2#,31 |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[08.1988 - 01.1990] YR2#,31 |
81980-32010 |
from US $54.42 |
||
|
81981
|
81981
90987-03001 Relay[08.1988 - 01.1990] YR2#,31..LHD |
90987-03001 |
from US $31.32 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[08.1988 - 01.1990] YR2#,31..LHD 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[08.1988 - 01.1990] YR21..RHD 15A; YR31;YR22..GL 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[08.1988 - 01.1990] YR2#,31 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[08.1988 - 01.1990] YR31;YR22..GL 7.5A |
90982-09005 |
from US $1.03 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[08.1988 - 01.1990] YR2#,31..LHD |
82616-12010 |
from US $3.04 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[08.1988 - 01.1990] YR31;YR21..RHD 30A |
82650-20011 |
US $14.08 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[08.1988 - 01.1990] YR31 20A |
82650-35010 |
US $18 |
||
|
82660C
|
82660C
82660-28022
Block Assy, Relay, Cowl Side
[08.1988 - 01.1990] YR31;YR22..GL |
82660-28022 |
— | ||
|
82661
|
82661
82661-28012 Cover, Relay Block, No.1[08.1988 - 01.1990] YR31;YR22..GL |
82661-28012 |
US $20.09 |
||
|
85910C
|
85910C
90987-02004 Relay Assy, Starter[08.1988 - 01.1990] YR21..RHD REAR; YR2#,31..LHD FRONT & REAR |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85910C
|
85910C
909870200483 [08.1988 - 01.1990] YR21..RHD REAR; YR2#,31..LHD FRONT & REAR |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[08.1988 - 01.1990] YR2#,31 |
90987-01003 |
from US $35.26 |
||
|
85916D
|
85916D
90987-02004 Relay Assy, Starter[08.1988 - 01.1990] YR2#,31 |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85916D
|
85916D
909870200483 [08.1988 - 01.1990] YR2#,31 |
909870200483 |
US $53.75 |
||
|
85940
|
85940
85940-28010
Relay Assy, Windshield Wiper
[08.1988 - 01.1990] YR2#,31 |
85940-28010 |
— | ||
|
85969
|
85969
85969-17010
Relay, Light Reminder
[08.1988 - 01.1990] YR2#,31 |
85969-17010 |
— | ||
|
85999C
|
85999C
85999-28010 Bracket, Relay, No.3[08.1988 - 01.1990] YR2#,31 UPPER |
85999-28010 |
US $34.80 |
||
|
85999C
|
85999C
85999-28021 Bracket, Relay, No.3[08.1988 - 01.1990] YR2#,31 LOWER |
85999-28021 |
US $4.37 |
||
|
89590
|
89590
89590-28030 Computer Assy, Condition IndicatorCONDITION INDICATOR [08.1988 - 01.1990] YR2#,31..LHD |
89590-28030 |
US $78.62 |
||
|
9015960076
|
9015960076
90159-60076 SCREW, W/WASHER TAPP |
90159-60076 |
US $3.52 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9351015014
|
9351015014
93510-15014
New Genuine Part
|
93510-15014 |
— | ||
