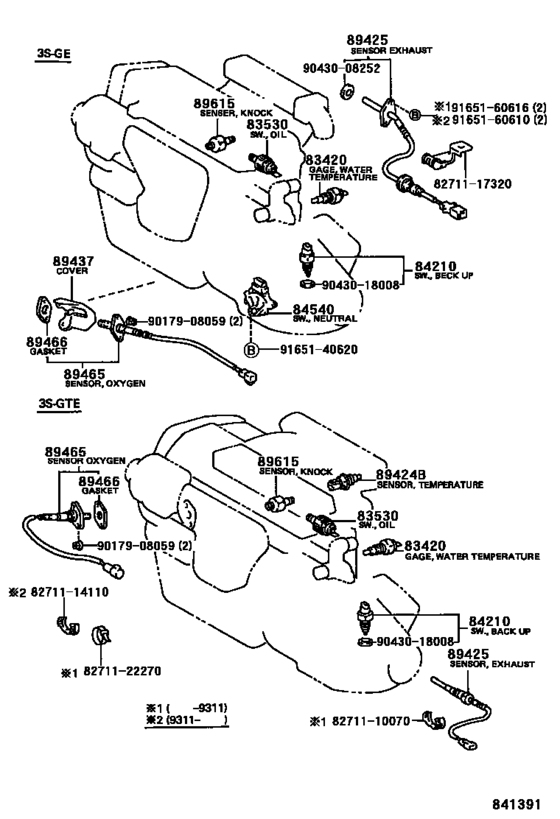

Switch & Relay & Computer ([12.1989 - ] ENGINE & TRANSMISSION (8912- )) Diagram Toyota MR 2/ MR-S
- Year
- 1989 - 1999
- Sales region
- Japan
- Frame
- SW20
- grade
- GT
- body
- CP
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- Model
- MR2
- From
- 12.1989
- To
- 08.1999
- Gear Shift Type
- 5F
- Vehicle Model
- MR2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[11.1992 -] SW20 ＮＩＰＰＯＮＤＥＮＳＯ |
83420-16040 |
from US $30.71 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1989 - 11.1992] SW20 |
83420-20020 |
from US $30.62 |
||
|
83420
|
83420
83420-20030
Gage Assy, Water Temperature Sender
[11.1992 - 11.1993] SW20 ＹＡＺＡＫＩ |
83420-20030 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[11.1992 - 11.1993] SW20 ＹＡＺＡＫＩ |
83420-16040 |
from US $30.71 |
||
|
83530
|
83530
83530-14060
Switch Assy, Oil Pressure (For Engine)
[11.1992 - 11.1993] SW20 |
83530-14060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.1992 - 11.1993] SW20 |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[02.1998 -] SW20 ＮＩＰＰＯＮＤＥＮＳＯ |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.1998 -] SW20 ＮＩＰＰＯＮＤＥＮＳＯ |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[02.1998 -] SW20 ＮＩＰＰＯＮＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30080
Switch Assy, Oil Pressure (For Engine)
[12.1989 - 11.1992] SW20 |
83530-30080 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[12.1989 - 11.1992] SW20 |
83530-60040 |
from US $34.52 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[11.1993 - 02.1998] SW20 ＮＩＰＰＯＮＤＥＮＳＯ |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.1993 - 02.1998] SW20 ＮＩＰＰＯＮＤＥＮＳＯ |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.1998 -] SW20 ＹＡＺＡＫＩ |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[12.1989 -] SW20..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[12.1989 -] SW20..5F |
84210-52050 |
from US $20.67 |
||
|
89424B
|
89424B
89424-24010 Sensor, Inlet Air Temperature (For E.f.i.)[11.1993 -] SW20..GT |
89424-24010 |
US $105.08 |
||
|
89425
|
89425
89425-17050
Sensor, Exhaust Gas Temperature
[12.1989 - 12.1991] SW20..GT |
89425-17050 |
— | ||
|
89425
|
89425
89425-17060 Sensor, Exhaust Gas Temperature[12.1991 - 11.1993] SW20..GT |
89425-17060 |
US $282.46 |
||
|
89425
|
89425
89425-17080
Sensor, Exhaust Gas Temperature
[11.1993 - 12.1997] SW20..GT |
89425-17080 |
— | ||
|
89465
|
89465
89465-29355
Sensor, Oxygen
[12.1989 - 11.1993] SW20..GT |
89465-29355 |
— | ||
|
89465
|
89465
89465-29805
Sensor, Oxygen
[11.1993 -] SW20..GT |
89465-29805 |
— | ||
|
89466
|
89466
89466-20030
Gasket, Oxygen Sensor
[12.1989 -] SW20..GT |
89466-20030 |
— | ||
|
89615
|
89615
89615-20010 Sensor, Knock Control[12.1989 - 08.1991] SW20 |
89615-20010 |
from US $142.21 |
||
|
89615
|
89615
89615-20060
Sensor, Knock Control
[11.1993 - 08.1999] SW20 |
89615-20060 |
— | ||
|
89615
|
89615
89615-50010 Sensor, Knock Control[08.1991 - 11.1993] SW20 |
89615-50010 |
from US $142.21 |
||
|
8271110070
|
8271110070
82711-10070 Clamp, Wiring Harness |
82711-10070 |
US $3.20 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
8271117320
|
8271117320
82711-17320 Wire, Fuse To Fuse(for Combustion Heater) |
82711-17320 |
US $5.24 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $4.37 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
