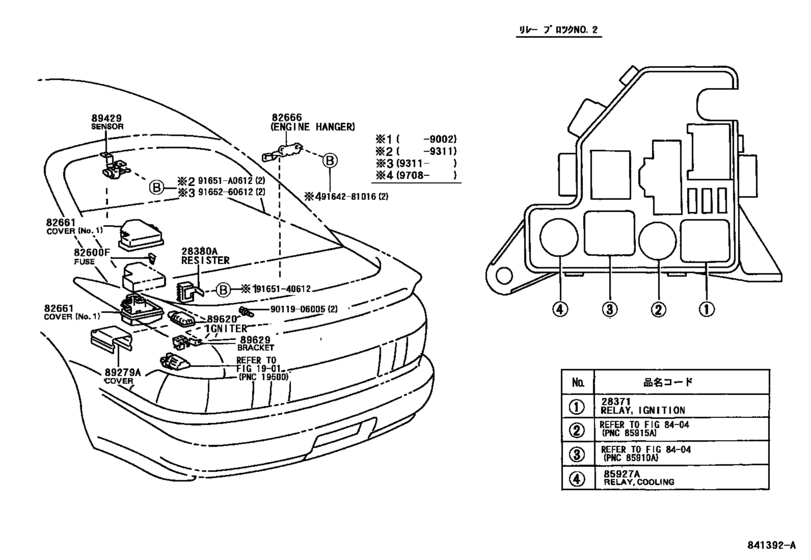

Switch & Relay & Computer ([12.1989 - ] ENGINE ROOM (8912- )) Diagram Toyota MR 2/ MR-S
- Year
- 1989 - 1999
- Sales region
- Japan
- Frame
- SW20
- grade
- GT
- body
- CP
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- Model
- MR2
- From
- 12.1989
- To
- 08.1999
- Gear Shift Type
- 5F
- Vehicle Model
- MR2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
85925-17010 Relay, Ignition, No.1[12.1989 - 11.1993] 3SG#..SW20 |
85925-17010 |
from US $40.87 |
||
|
28380A
|
28380A
23080-74020
Resister, Fuel Pump
[12.1989 -] 3SGTE..SW20 |
23080-74020 |
— | ||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[12.1989 -] SW20 ３０Ａ |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[12.1989 -] SW20 １０Ａ |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[12.1989 -] SW20 １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[12.1989 -] SW20 ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[12.1989 -] SW20 ７．５Ａ |
90982-09005 |
from US $1.09 |
||
|
82661
|
82661
82661-17090
Cover, Relay Block, No.1
[12.1989 -] SW20 NO.1,LOWER |
82661-17090 |
— | ||
|
82661
|
82661
82661-17100
Cover, Relay Block, No.1
[12.1989 -] SW20 NO.2,LOWER |
82661-17100 |
— | ||
|
82661
|
82661
82661-17130 Cover, Relay Block, No.1[12.1989 - 12.1991] SW20 ＮＯ．３ |
82661-17130 |
US $5.97 |
||
|
82661
|
82661
82661-17150
Cover, Relay Block, No.1
[12.1989 -] SW20 NO.1,UPPER |
82661-17150 |
— | ||
|
82661
|
82661
82661-17190 Cover, Relay Block, No.1[12.1989 - 05.1990] SW20 NO.2,UPPER |
82661-17190 |
US $37.13 |
||
|
82661
|
82661
82661-17191
Cover, Relay Block, No.1
[05.1990 - 12.1991] SW20 NO.2,UPPER |
82661-17191 |
— | ||
|
82661
|
82661
82661-17192
Cover, Relay Block, No.1
[12.1991 -] SW20 NO.2,UPPER |
82661-17192 |
— | ||
|
82661
|
82661
82661-17200 Cover, Relay Block, No.1[12.1991 - 11.1993] SW20 ＮＯ．３ |
82661-17200 |
US $5.24 |
||
|
82661
|
82661
82661-17201 Cover, Relay Block, No.1[11.1993 - 06.1996] SW20 ＮＯ．３ |
82661-17201 |
US $4.66 |
||
| replacement | |||||
|
82661
|
82661
82661-17202
Cover, Relay Block, No.1
[11.1993 - 06.1996] SW20 ＮＯ．３ |
82661-17202 |
— | ||
|
82661
|
82661
82661-17202
Cover, Relay Block, No.1
[06.1996 - 12.1997] SW20 ＮＯ．３ |
82661-17202 |
— | ||
|
82666
|
82666
82666-17010
Holder, Connector
[12.1989 - 12.1997] SW20 LH COWL SIDE,NO.1 |
82666-17010 |
— | ||
|
82666
|
82666
82666-17020
Holder, Connector
[12.1989 - 12.1997] SW20 RH COWL SIDE |
82666-17020 |
— | ||
|
82666
|
82666
82666-17030
Holder, Connector
[12.1989 - 12.1997] SW20 LH COWL SIDE,NO.2 |
82666-17030 |
— | ||
|
82666
|
82666
82666-17050
Holder, Connector
[12.1989 - 12.1997] SW20 LH COWL SIDE,NO.3 |
82666-17050 |
— | ||
|
82666
|
82666
82666-17060
Holder, Connector
[11.1993 -] SW20 ENGINE HUNGER |
82666-17060 |
— | ||
|
85927A
|
85927A
90987-03001 Relay[12.1989 -] SW20 |
90987-03001 |
from US $31.32 |
||
|
89279A
|
89279A
89279-17020
Cover, Computer
[12.1989 - 12.1997] SW20 |
89279-17020 |
— | ||
|
89429
|
89429
89429-17020
Sensor, Oil Temperature
[12.1989 -] SW20 |
89429-17020 |
— | ||
|
89620
|
89620
89621-12010
Igniter Assy
[12.1989 - 12.1991] SW20..GT |
89621-12010 |
— | ||
|
89620
|
89620
89621-12050 Igniter Assy[12.1991 - 11.1993] SW20 |
89621-12050 |
US $362.60 |
||
|
89620
|
89620
89621-16020
Igniter Assy
[11.1993 - 12.1997] SW20 |
89621-16020 |
— | ||
| replacement | |||||
|
89620
|
89620
89621-26010 Igniter Assy[11.1993 - 12.1997] SW20 |
89621-26010 |
from US $457.80 |
||
|
89629
|
89629
89629-17020
Bracket, Igniter Assy
[11.1993 - 12.1997] SW20 |
89629-17020 |
— | ||
|
91651A0612
|
91651A0612
91651-A0612 New Genuine Part |
91651-A0612 |
US $1.60 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9164281016
|
9164281016
91642-81016 Bolt (For Transmission Control Cable Bracket) |
91642-81016 |
US $0.87 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165260612
|
9165260612
91652-60612
New Genuine Part
|
91652-60612 |
— | ||
