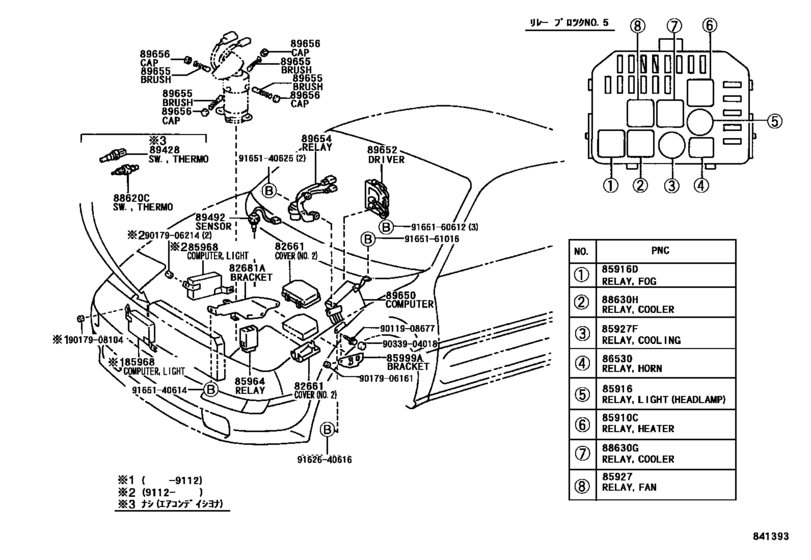

Switch & Relay & Computer ([12.1989 - ] FRONT LUGGAGE (8912- )) Diagram Toyota MR 2/ MR-S
- Year
- 1989 - 1999
- Sales region
- Japan
- Frame
- SW20
- grade
- GT
- body
- CP
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- Model
- MR2
- From
- 12.1989
- To
- 08.1999
- Gear Shift Type
- 5F
- Vehicle Model
- MR2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82661
|
82661
82661-17090
Cover, Relay Block, No.1
[12.1989 -] SW20 NO.1,LOWER |
82661-17090 |
— | ||
|
82661
|
82661
82661-17100
Cover, Relay Block, No.1
[12.1989 -] SW20 NO.2,LOWER |
82661-17100 |
— | ||
|
82661
|
82661
82661-17130 Cover, Relay Block, No.1[12.1989 - 12.1991] SW20 ＮＯ．３ |
82661-17130 |
US $5.97 |
||
|
82661
|
82661
82661-17150
Cover, Relay Block, No.1
[12.1989 -] SW20 NO.1,UPPER |
82661-17150 |
— | ||
|
82661
|
82661
82661-17190 Cover, Relay Block, No.1[12.1989 - 05.1990] SW20 NO.2,UPPER |
82661-17190 |
US $37.13 |
||
|
82661
|
82661
82661-17191
Cover, Relay Block, No.1
[05.1990 - 12.1991] SW20 NO.2,UPPER |
82661-17191 |
— | ||
|
82661
|
82661
82661-17192
Cover, Relay Block, No.1
[12.1991 -] SW20 NO.2,UPPER |
82661-17192 |
— | ||
|
82661
|
82661
82661-17200 Cover, Relay Block, No.1[12.1991 - 11.1993] SW20 ＮＯ．３ |
82661-17200 |
US $5.24 |
||
|
82661
|
82661
82661-17201 Cover, Relay Block, No.1[11.1993 - 06.1996] SW20 ＮＯ．３ |
82661-17201 |
US $4.66 |
||
| replacement | |||||
|
82661
|
82661
82661-17202
Cover, Relay Block, No.1
[11.1993 - 06.1996] SW20 ＮＯ．３ |
82661-17202 |
— | ||
|
82661
|
82661
82661-17202
Cover, Relay Block, No.1
[06.1996 - 12.1997] SW20 ＮＯ．３ |
82661-17202 |
— | ||
|
82681A
|
82681A
82681-17020 Bracket, Fuse Block[12.1989 - 12.1991] SW20 |
82681-17020 |
US $41.06 |
||
|
82681A
|
82681A
82681-17030 Bracket, Fuse Block[12.1991 -] SW20 |
82681-17030 |
US $43.53 |
||
|
85910C
|
85910C
85925-17010 Relay, Ignition, No.1[12.1989 -] SW20 |
85925-17010 |
from US $40.87 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[12.1989 -] SW20 HEAD |
90987-01003 |
from US $35.26 |
||
|
85916
|
85916
90987-02009 Relay Assy[12.1989 -] SW20 TAIL |
90987-02009 |
US $64.60 |
||
|
85916D
|
85916D
90987-02009 Relay Assy[12.1989 -] SW20 |
90987-02009 |
US $64.60 |
||
|
85927
|
85927
85925-17010 Relay, Ignition, No.1[12.1989 - 11.1993] SW20 |
85925-17010 |
from US $40.87 |
||
|
85927F
|
85927F
90987-03001 Relay[12.1989 -] SW20 |
90987-03001 |
from US $33.90 |
||
|
85964
|
85964
85964-20020
Relay, Light Retractor
[12.1989 -] SW20 |
85964-20020 |
— | ||
|
85968
|
85968
85968-17010 Computer, Light Reflector Control[12.1989 - 05.1990] SW20 |
85968-17010 |
US $449.90 |
||
| replacement | |||||
|
85968
|
85968
85968-17011 Computer, Light Reflector Control[12.1989 - 05.1990] SW20 |
85968-17011 |
US $444.08 |
||
|
85968
|
85968
85968-17011 Computer, Light Reflector Control[05.1990 - 12.1991] SW20 |
85968-17011 |
US $444.08 |
||
|
85968
|
85968
85968-17020 Computer, Light Reflector Control[12.1991 - 11.1993] SW20 |
85968-17020 |
US $446.99 |
||
|
85999A
|
85999A
85999-17070 Bracket, Relay, No.2[12.1989 -] SW20 |
85999-17070 |
US $12.38 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[12.1989 -] SW20 |
86530-20070 |
from US $12.19 |
||
|
88620C
|
88620C
88625-17010
Thermo Switch Assy
[12.1989 - 12.1991] SW20 |
88625-17010 |
— | ||
|
88620C
|
88620C
88625-17011
Thermo Switch Assy
[12.1991 -] SW20 |
88625-17011 |
— | ||
|
88630G
|
88630G
90987-04003 Relay, Ignition, No.1[12.1989 -] SW20 |
90987-04003 |
US $67.94 |
||
|
88630H
|
88630H
90987-02009 Relay Assy[12.1989 -] SW20 |
90987-02009 |
US $64.60 |
||
|
89428
|
89428
89428-33010 Switch, Temperature Detect[11.1993 -] SW20..CP..5F |
89428-33010 |
from US $88.80 |
||
|
89492
|
89492
89492-17020 Sensor, Electrolyte Level[12.1989 - 12.1991] SW20 |
89492-17020 |
US $24.32 |
||
|
89650
|
89650
89650-17010 Computer Assy, Power Steering[12.1989 - 03.1990] SW20 |
89650-17010 |
US $301.39 |
||
| replacement | |||||
|
89650
|
89650
89650-17012 Computer Assy, Power Steering[12.1989 - 03.1990] SW20 |
89650-17012 |
US $298.48 |
||
|
89650
|
89650
89650-17011 Computer Assy, Power Steering[03.1990 - 07.1990] SW20 |
89650-17011 |
US $301.39 |
||
| replacement | |||||
|
89650
|
89650
89650-17012 Computer Assy, Power Steering[03.1990 - 07.1990] SW20 |
89650-17012 |
US $298.48 |
||
|
89650
|
89650
89650-17012 Computer Assy, Power Steering[07.1990 - 12.1991] SW20 |
89650-17012 |
US $298.48 |
||
|
89650
|
89650
89650-17030 Computer Assy, Power Steering[12.1991 - 11.1993] SW20..G; SW20..GT ﾅｼ(*66) |
89650-17030 |
US $298.48 |
||
|
89650
|
89650
89650-17050 Computer Assy, Power Steering[12.1991 - 11.1993] SW20..GT |
89650-17050 |
US $298.48 |
||
|
89650
|
89650
89650-17080 Computer Assy, Power Steering[11.1993 - 07.1994] SW20..GT |
89650-17080 |
US $298.48 |
||
| replacement | |||||
|
89650
|
89650
89650-17081 Computer Assy, Power Steering[11.1993 - 07.1994] SW20..GT |
89650-17081 |
US $299.94 |
||
|
89650
|
89650
89650-17081 Computer Assy, Power Steering[07.1994 -] SW20 |
89650-17081 |
US $299.94 |
||
|
89652
|
89652
89652-17011 Driver, Power Steering[12.1989 -] SW20 |
89652-17011 |
US $1,192.46 |
||
|
89654
|
89654
89654-17010
Relay, Power Steering
[12.1989 - 04.1997] SW20 |
89654-17010 |
— | ||
| replacement | |||||
|
89654
|
89654
89654-17011
Relay, Power Steering
[12.1989 - 04.1997] SW20 |
89654-17011 |
— | ||
|
89654
|
89654
89654-17011
Relay, Power Steering
[04.1997 -] SW20 |
89654-17011 |
— | ||
|
89655
|
89655
89655-17010
Brush, Power Steering Motor
[12.1989 - 11.1993] SW20 |
89655-17010 |
— | ||
|
89655
|
89655
89655-17011
Brush, Power Steering Motor
[11.1993 -] SW20 |
89655-17011 |
— | ||
|
89656
|
89656
89656-17010 Cap, Power Steering Motor[12.1989 -] SW20 |
89656-17010 |
US $11.50 |
||
|
9011908677
|
9011908677
90119-08677 New Genuine Part |
90119-08677 |
US $1.60 |
||
| replacement | |||||
|
9011908677
|
9011908677
90119-08923 New Genuine Part |
90119-08923 |
US $1.60 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9017906214
|
9017906214
90179-06214 NUT |
90179-06214 |
US $1.60 |
||
|
9017908104
|
9017908104
90179-08104
New Genuine Part
|
90179-08104 |
— | ||
| replacement | |||||
|
9017908104
|
9017908104
90179-08200 New Genuine Part |
90179-08200 |
US $2.62 |
||
|
9033904018
|
9033904018
90339-04018 New Genuine Part |
90339-04018 |
US $2.06 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $0.87 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9165161016
|
9165161016
91651-61016 Bolt |
91651-61016 |
US $1.14 |
||
